4.2.3.5.4. RX configuration
Up to 4 independent RX modes can be set. The configuration is the
same for all modes. The following example shows the configuration
for the first RX mode.

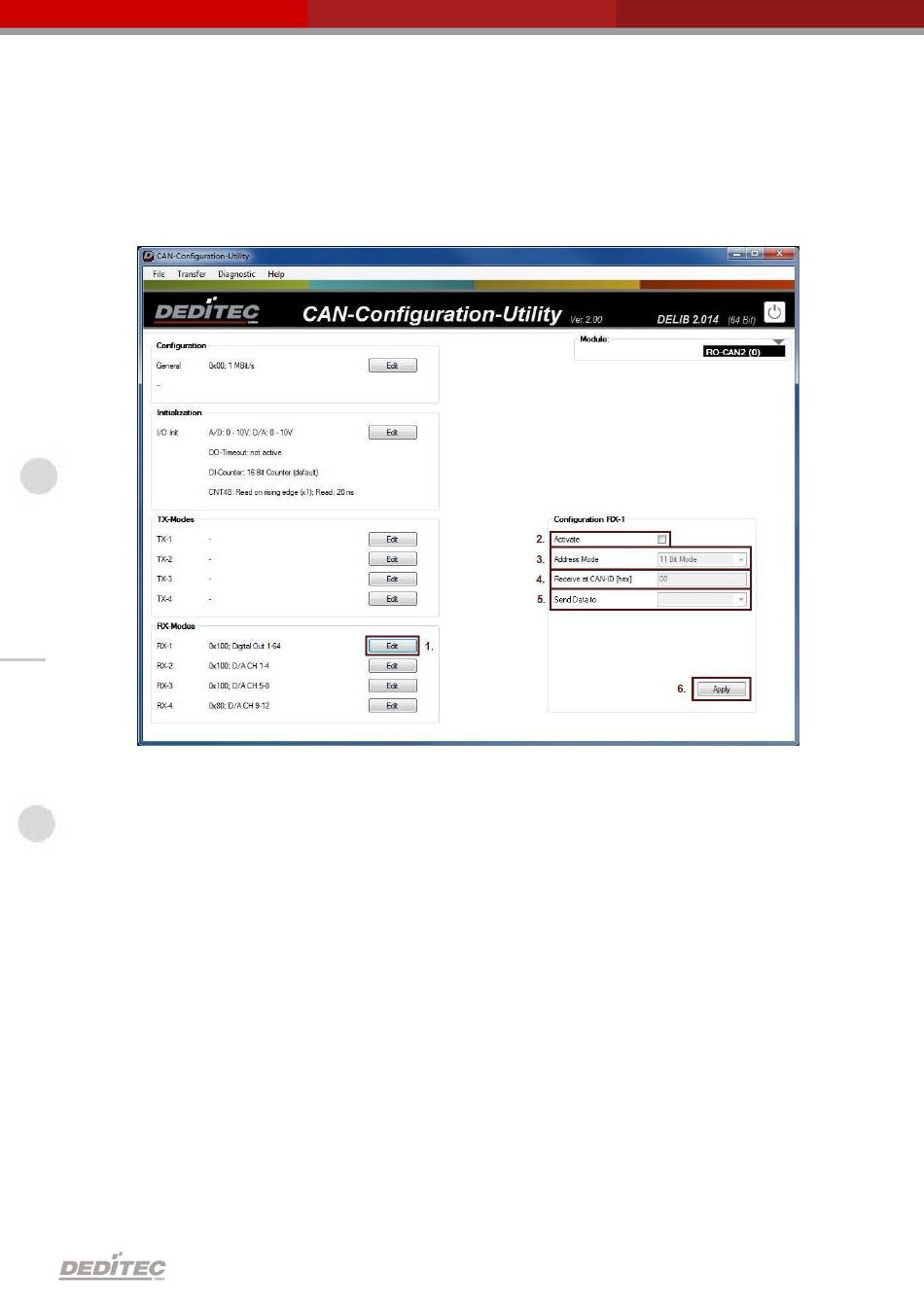

1. Via the menu item "Edit", an additional window is opened, in
which the configuration can be made.
2. To activate the configuration, the checkbox must be set here.
3. The Address Mode specifies how much bits are used for
addressing.
4. The CAN-ID is used to determine the data packets.
5. If data were received on the ID configured in point 4, the action to
be executed by the module is defined here. Such as. ->
automatically set the output voltage for an analog output
module or -> switch relay outputs.
6. Press "Apply" to accept the changes.
