4.2.3.5.3. TX configuration

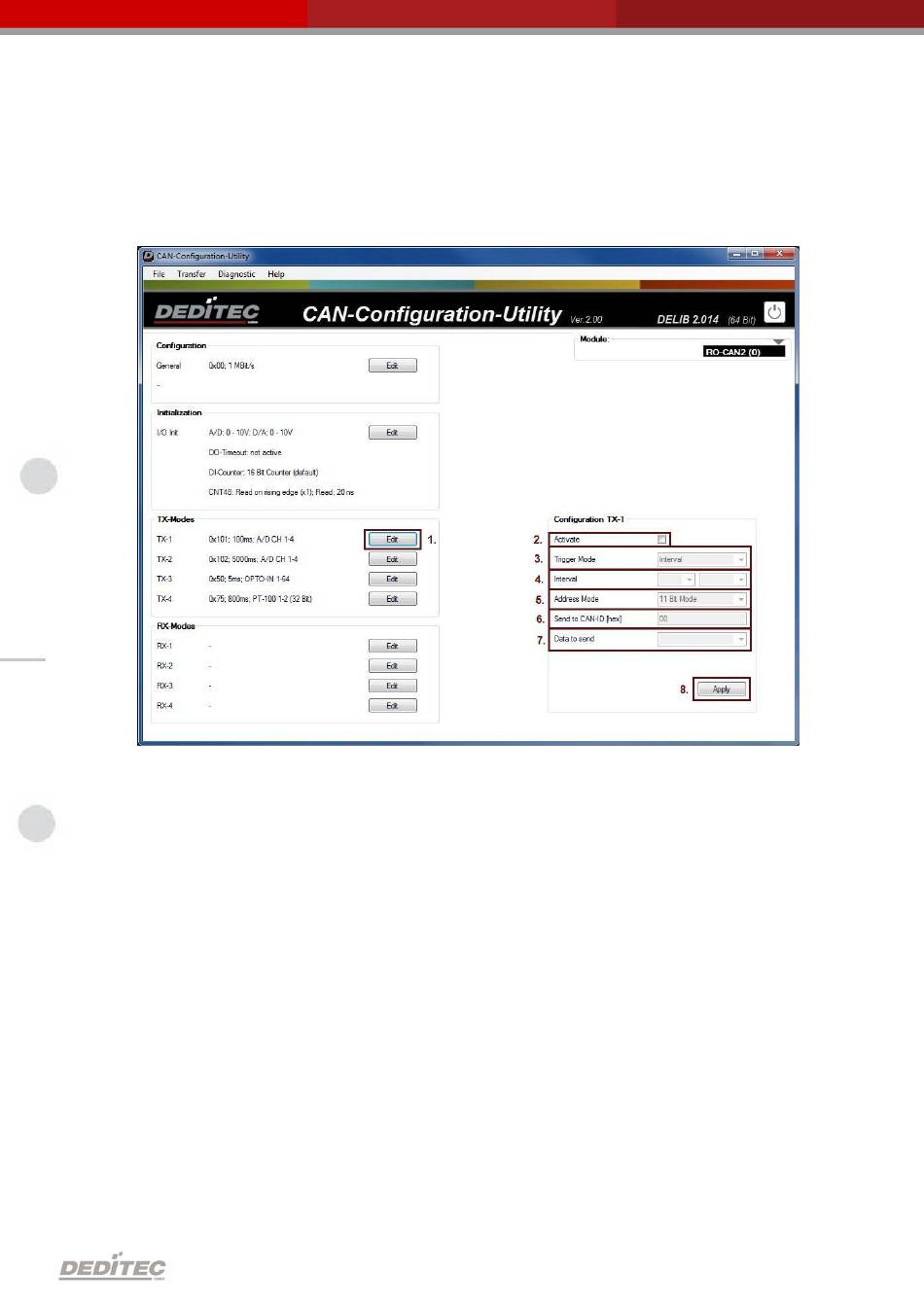

Up to 4 independent TX modes can be set. The configuration is the
same for all modes. The following example shows the configuration
for the first TX mode.
1. Via the menu item "Edit", an additional window is opened, in
which the configuration can be made.
2. To activate the configuration, the checkbox must be set here.
3. The trigger mode specifies the condition under which data are
sent. Either in the interval or as a function of a received RX
packet.
4. The
interval is configured
3), in which packets are sent.
5. The
Address Mode
addressing.
6. This is
where the module address CAN packets are sent.
7. This item defines the type of data to be sent to the address
here (if "Interval" is selected in point
specifies how much bits are used for
