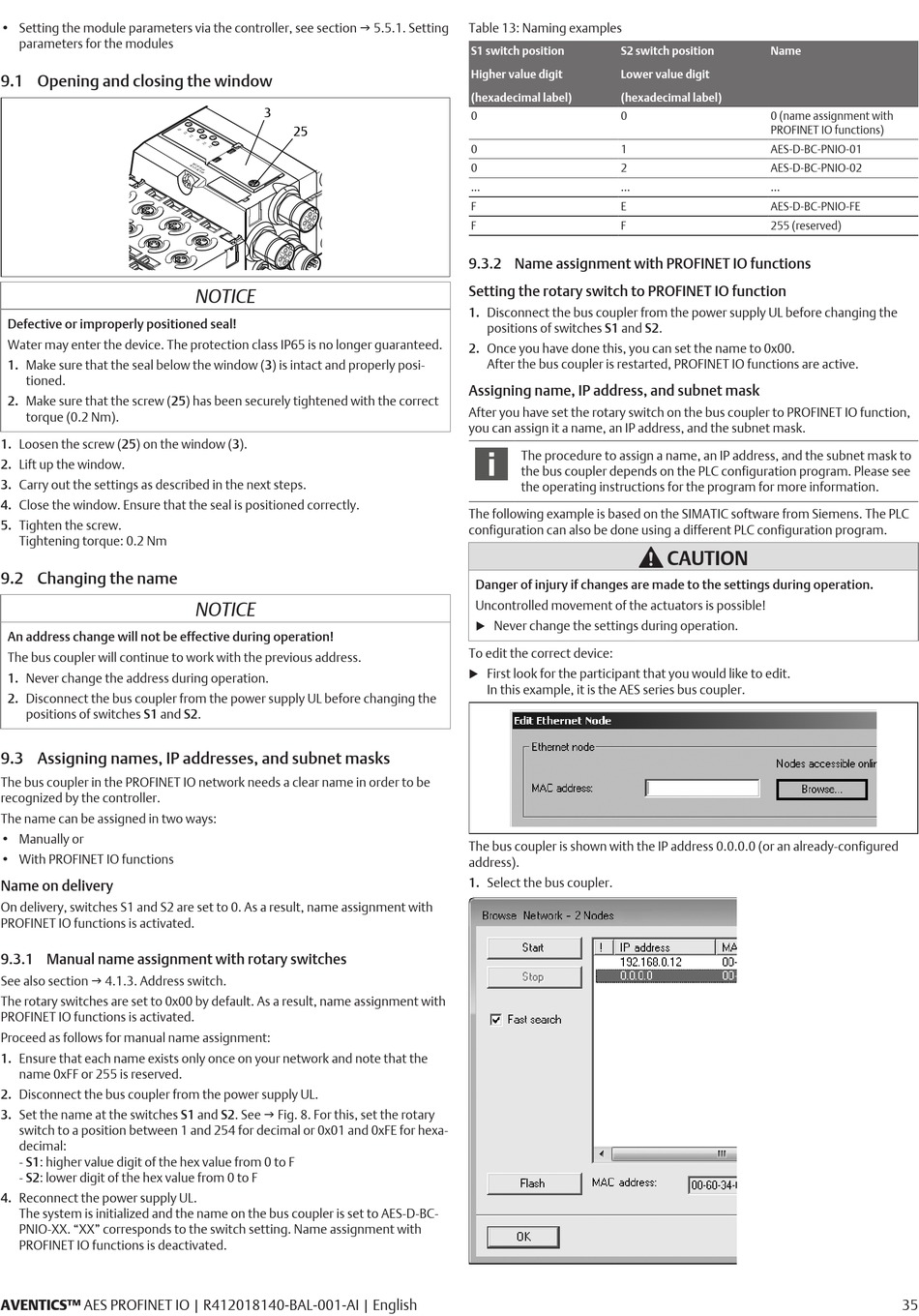

• Setting the module parameters via the controller, see section g 5.5.1. Setting
parameters for the modules

9.1 Opening and closing the window

Defective or improperly positioned seal!
Water may enter the device. The protection class IP65 is no longer guaranteed.
1. Make sure that the seal below the window (3) is intact and properly posi-
tioned.
2. Make sure that the screw (25) has been securely tightened with the correct
torque (0.2 Nm).
1. Loosen the screw (25) on the window (3).
2. Lift up the window.
3. Carry out the settings as described in the next steps.
4. Close the window. Ensure that the seal is positioned correctly.
5. Tighten the screw.
Tightening torque: 0.2 Nm

9.2 Changing the name

An address change will not be effective during operation!
The bus coupler will continue to work with the previous address.
1. Never change the address during operation.
2. Disconnect the bus coupler from the power supply UL before changing the
positions of switches S1 and S2.

9.3 Assigning names, IP addresses, and subnet masks

The bus coupler in the PROFINET IO network needs a clear name in order to be
recognized by the controller.
The name can be assigned in two ways:
• Manually or
• With PROFINET IO functions
Name on delivery
On delivery, switches S1 and S2 are set to 0. As a result, name assignment with
PROFINET IO functions is activated.

9.3.1 Manual name assignment with rotary switches

See also section g 4.1.3. Address switch.
The rotary switches are set to 0x00 by default. As a result, name assignment with
PROFINET IO functions is activated.
Proceed as follows for manual name assignment:
1. Ensure that each name exists only once on your network and note that the
name 0xFF or 255 is reserved.
2. Disconnect the bus coupler from the power supply UL.
3. Set the name at the switches S1 and S2. See g Fig. 8. For this, set the rotary
switch to a position between 1 and 254 for decimal or 0x01 and 0xFE for hexa-
decimal:
- S1: higher value digit of the hex value from 0 to F
- S2: lower digit of the hex value from 0 to F
4. Reconnect the power supply UL.
The system is initialized and the name on the bus coupler is set to AES-D-BC-
PNIO-XX. "XX" corresponds to the switch setting. Name assignment with
PROFINET IO functions is deactivated.
AVENTICS™ AES PROFINET IO | R412018140-BAL-001-AI | English
3
25
NOTICE
NOTICE
Table 13: Naming examples
S1 switch position S2 switch position
Higher value digit Lower value digit
(hexadecimal label) (hexadecimal label)
0 0
0 1
0 2
... ...
F E
F F
9.3.2 Name assignment with PROFINET IO functions
Setting the rotary switch to PROFINET IO function
1. Disconnect the bus coupler from the power supply UL before changing the
positions of switches S1 and S2.
2. Once you have done this, you can set the name to 0x00.
After the bus coupler is restarted, PROFINET IO functions are active.
Assigning name, IP address, and subnet mask
After you have set the rotary switch on the bus coupler to PROFINET IO function,
you can assign it a name, an IP address, and the subnet mask.
The procedure to assign a name, an IP address, and the subnet mask to
the bus coupler depends on the PLC configuration program. Please see
the operating instructions for the program for more information.
The following example is based on the SIMATIC software from Siemens. The PLC
configuration can also be done using a different PLC configuration program.
Danger of injury if changes are made to the settings during operation.
Uncontrolled movement of the actuators is possible!
Never change the settings during operation.
u
To edit the correct device:
First look for the participant that you would like to edit.
u
In this example, it is the AES series bus coupler.
The bus coupler is shown with the IP address 0.0.0.0 (or an already-configured
address).
1. Select the bus coupler.
Name
0 (name assignment with
PROFINET IO functions)
AES-D-BC-PNIO-01
AES-D-BC-PNIO-02
...
AES-D-BC-PNIO-FE
255 (reserved)
CAUTION
35
