TR4

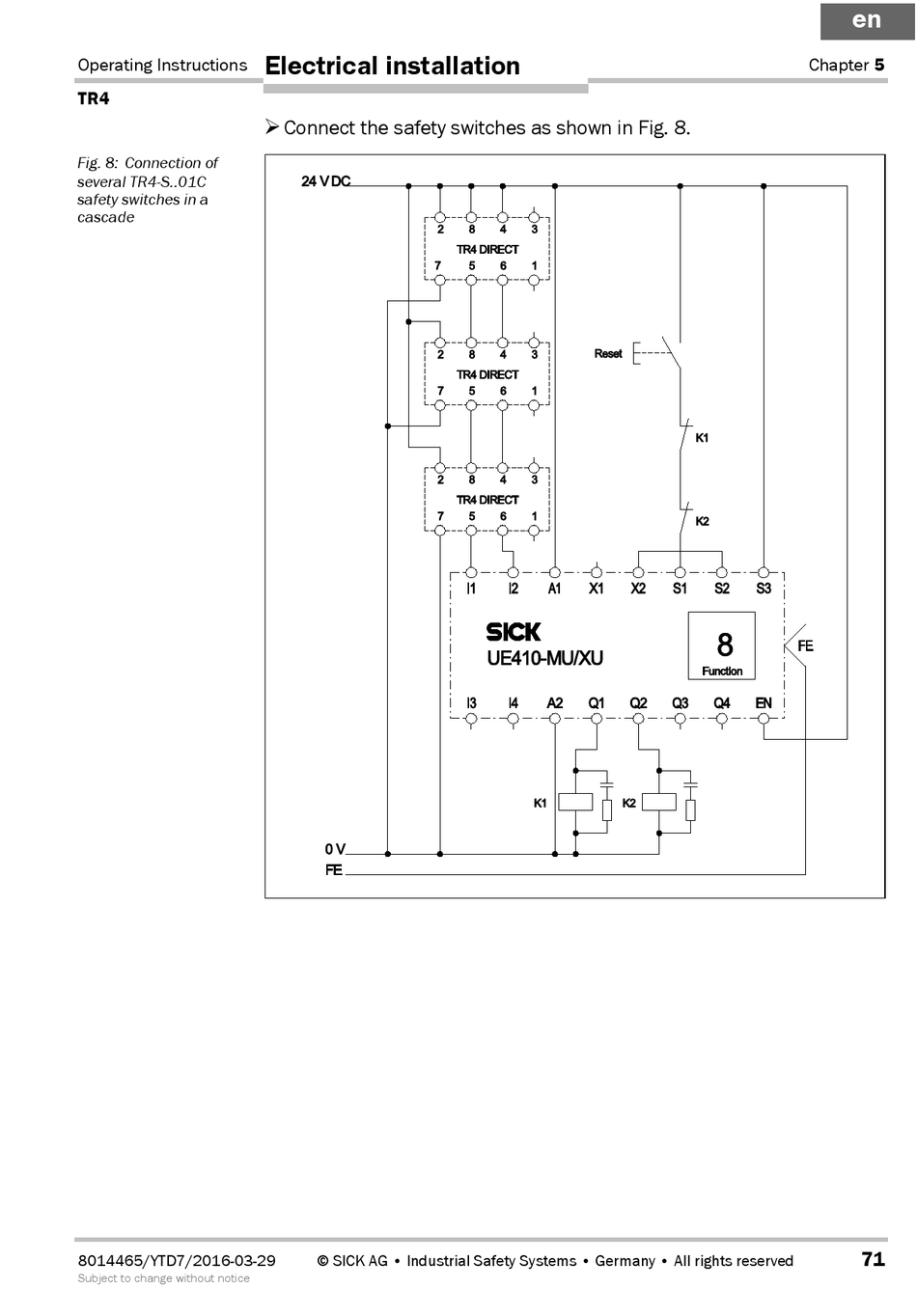

Fig. 8: Connection of
several TR4-S..01C
safety switches in a
cascade
8014465/YTD7/2016-03-29
Subject to change without notice
Electrical installation
= Connect the safety switches as shown in Fig. 8.
