Operating Instructions
TR4

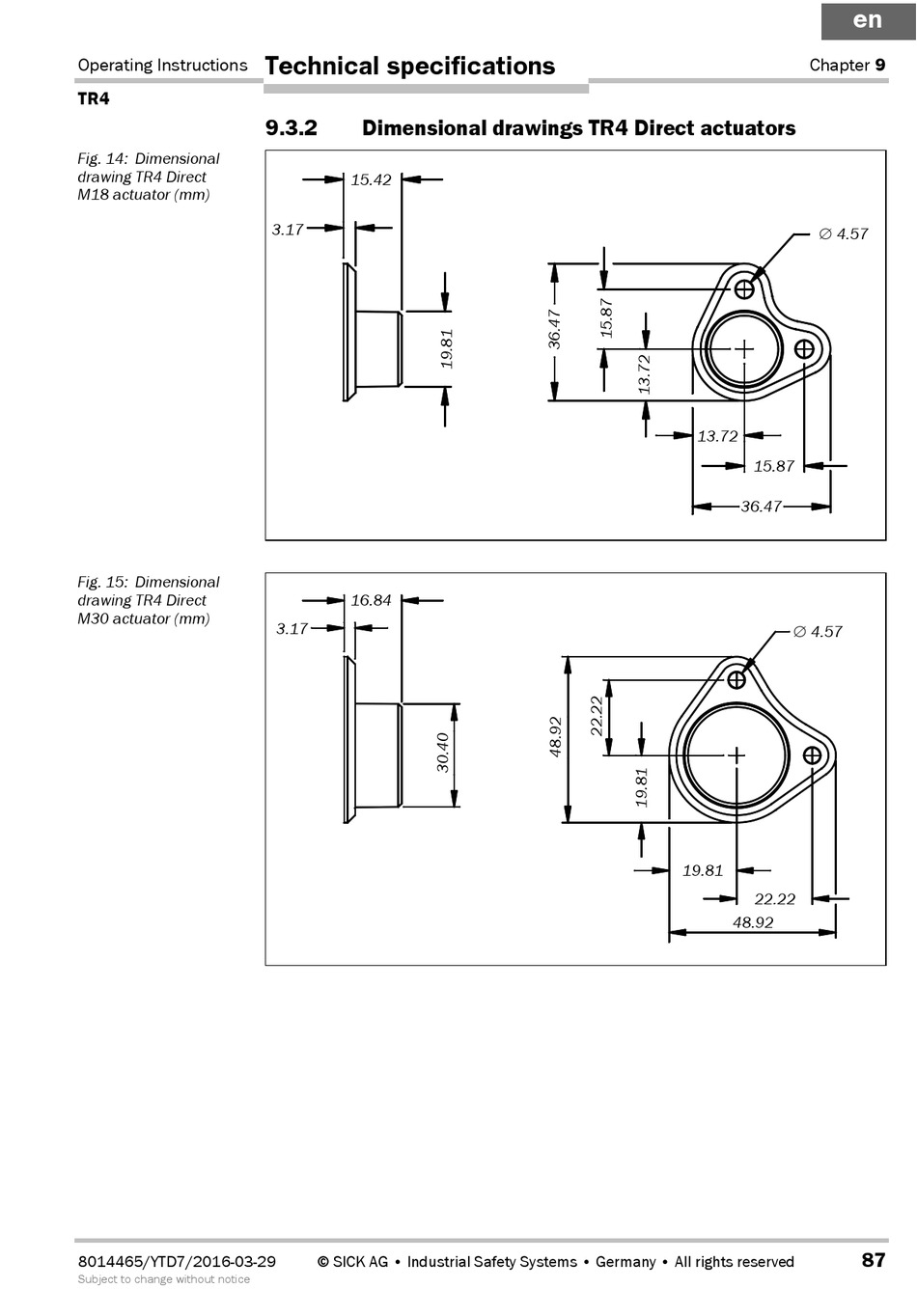

Fig. 14: Dimensional
drawing TR4 Direct
M18 actuator (mm)
Fig. 15: Dimensional
drawing TR4 Direct
M30 actuator (mm)
8014465/YTD7/2016-03-29
Subject to change without notice
Technical specifications
9.3.2

Dimensional drawings TR4 Direct actuators

15.42
3.17
16.84
3.17
© SICK AG • Industrial Safety Systems • Germany • All rights reserved
en
Chapter 9
⊕ 4.57
13.72
15.87
36.47
⊕ 4.57
19.81
22.22
48.92
87
