Chapter 5

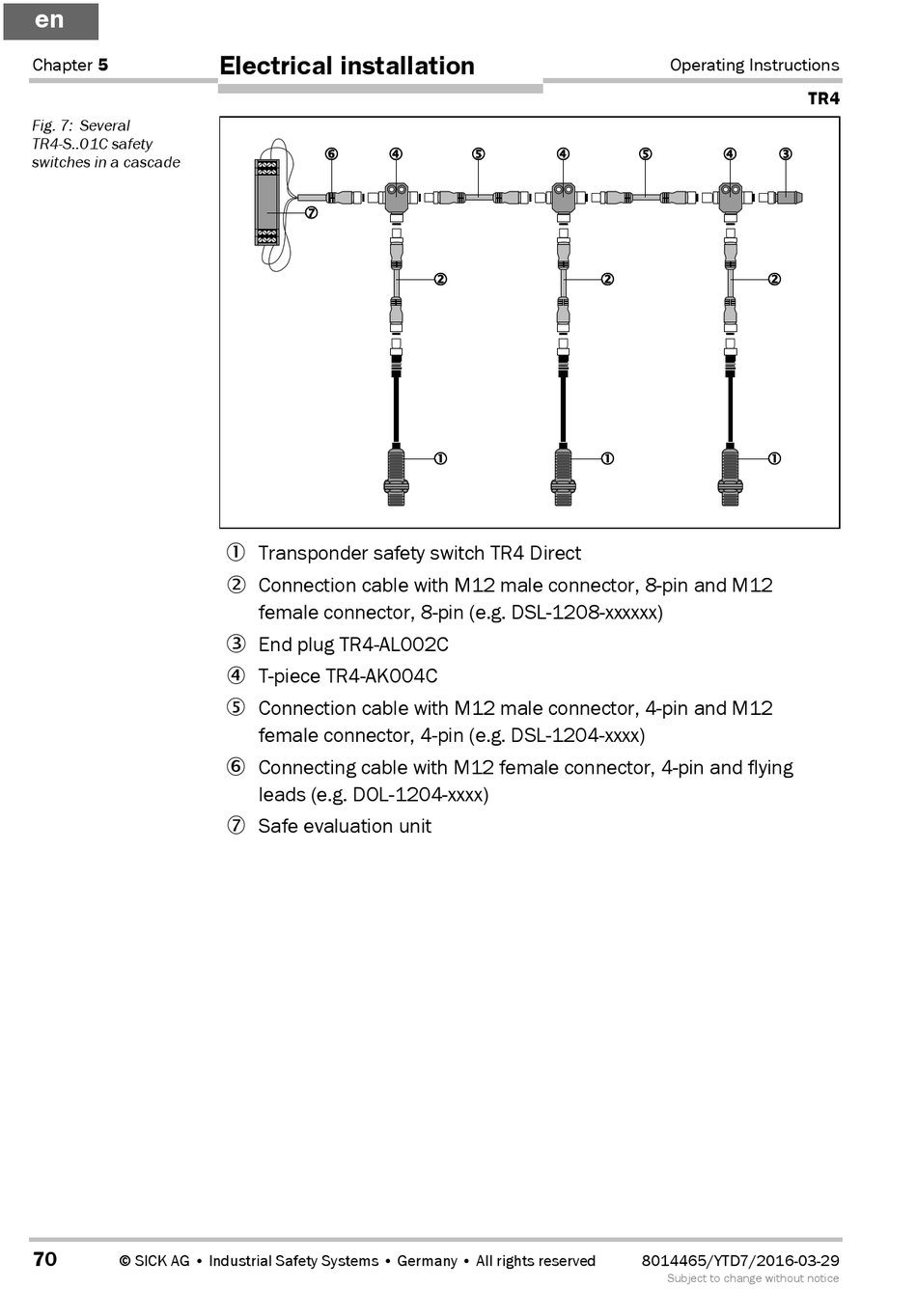

Fig. 7: Several
TR4-S..01C safety
switches in a cascade
70
© SICK AG • Industrial Safety Systems • Germany • All rights reserved
Electrical installation
0 Transponder safety switch TR4 Direct
1 Connection cable with M12 male connector, 8-pin and M12
female connector, 8-pin (e.g. DSL-1208-xxxxxx)
2 End plug TR4-AL002C
3 T-piece TR4-AK004C
4 Connection cable with M12 male connector, 4-pin and M12
female connector, 4-pin (e.g. DSL-1204-xxxx)
5 Connecting cable with M12 female connector, 4-pin and flying
leads (e.g. DOL-1204-xxxx)
6 Safe evaluation unit
