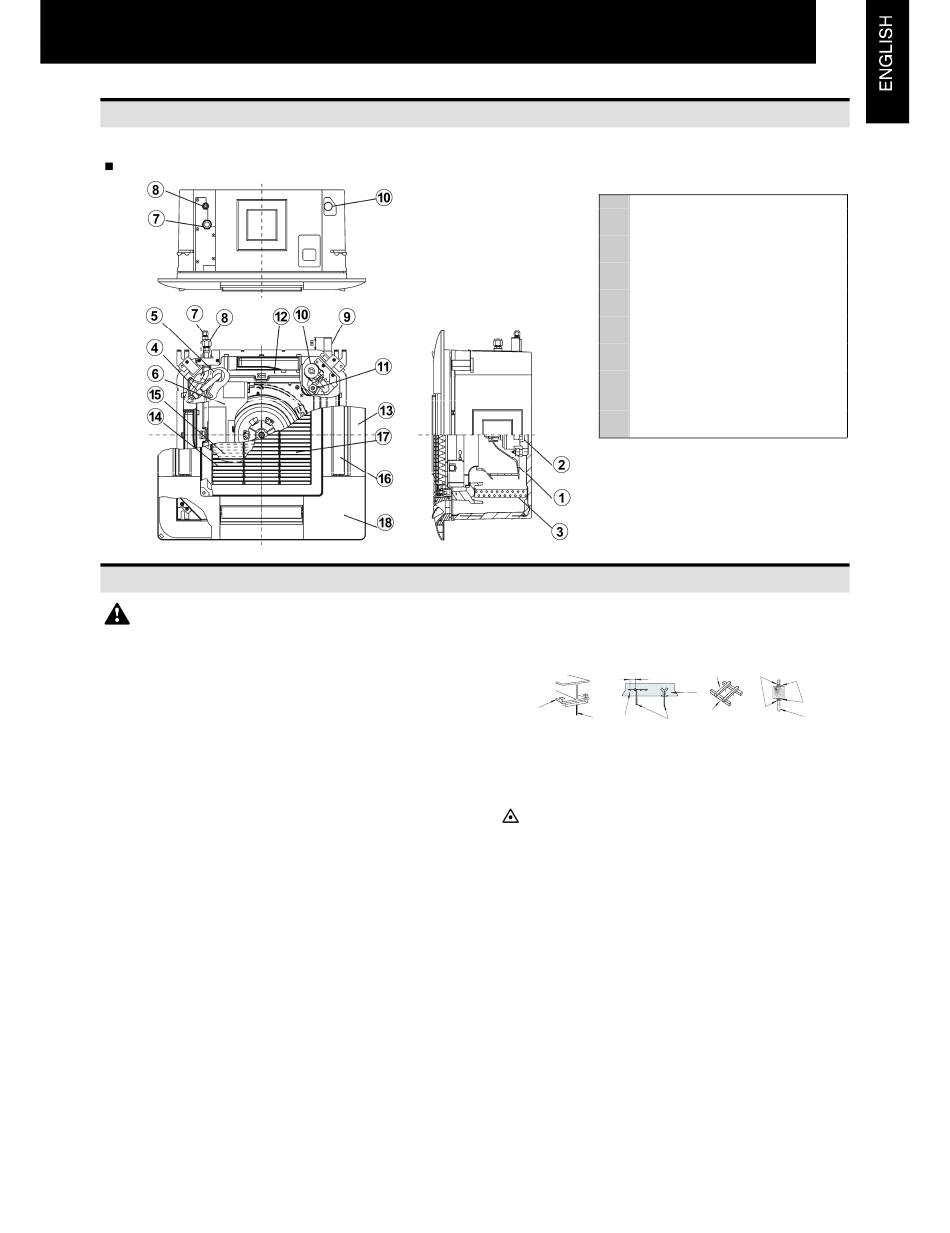

1 NAME OF PARTS

RCIM

2 UNITS INSTALLATION

WARNING:
Check to ensure that the accessories are packed
-
with the indoor unit.
Do not install the indoor units outdoors. If installed
-
outdoors, an electric hazard or electric leakage will
occur.
Consider the air distribution from each indoor unit to
-
the space of the room, and select a suitable location
so that uniform air temperature in the room can be
obtained. It is recommended that the indoor units be
installed 2.3 to 3 meters from the floor level. If the
unit is installed higher than 3 meters, it is also
recommended that a fan be used to obtain uniform
air temperature in the room.
Avoid obstacles which may hamper the air intake
-
or the air discharge flow.
Pay attention to the following points when the
-
indoor units are installed in a hospital or other
places where there are electronic waves from
medical equipment, etc.
Do not install the indoor units where
-
electromagnetic wave is directly radiated to the
electrical box, remote control cable or remote
control switch.
Prepare a steel box and install the remote control
-
switch in it. Prepare a steel conduit tube and wire
the remote control cable in it. Then connect the
ground wire with the box and tube.
Install a noise filter when the power supply emits
-
harmful noises.
This unit is exclusive non electrical heater type
-
indoor unit. It is prohibited to install an electrical
heater in the field.
All manuals and user guides at all-guides.com
No. Part Name
1 Fan
2 Fan Motor
3 Heat Exchanger
4 Distributor
5 Expansion Valve
6 Electric Control Box
7 Gas Refrigerant Connection
8 Liquid Refrigerant Connection
9 Drain Pipe Connection
10 Motor for Drain Discharge Mechanism
11 Float Switch
12 Drain Pan
13 Panel P-N23WAM
14 Air Inlet Grille
15 Air Filter
16 Air Outlet
17 Air Inlet
18 Cover for Corner Pocket
Mount suspension bolts using M10 (W3/8) as size,
-
as shown below:
Wooden Bar
For Concrete Slab
(60 mm to 90 mm Square)
150~160mm
Concrete
I-Beam Wooden Beam
Steel
Suspension Bolts
Anchor Bolt
(W3/8 or M10)
Do not put any foreign material into the indoor unit
-
and check to ensure that none exist in the indoor unit
before the installation and test running. Otherwise a
fire or failure, etc., may occur.
CAUTION:
Do not install the indoor units in a flammable
-
environment to avoid a fire or an explosion.
Check to ensure that the ceiling slab is strong
-
enough. If not strong enough, the indoor unit may fall
down on you.
Do not install the indoor units, outdoor unit, remote
-
control switch and cable within approximately 3
meters of strong electromagnetic wave radiators
such as medical equipment.
Do not install the indoor units in a machinery shop or
-
kitchen where vapour from oil or mist flows to the
indoor units. The oil will deposit on the heat
exchanger, thereby reducing the indoor unit
performance, and may deform. In the worst case, the
oil damages the plastic parts of the indoor unit.
To avoid any corrosive action to the heat
-
exchangers, do not install the indoor units in an acid
or alkaline environment.
When lifting or moving the indoor unit, use
-
appropriate slings to avoid damage and be careful
not to damage the insulation material on units
surface.
1
NAME OF PARTS
1
Square
Nuts
washers
Sling Bolt
(W3/8 or M10)
