INSTALLATION OF OPTIONAL AIR PANEL: P-N23WAM
10
It's able to adjust the indoor unit height by using wrench
-
from the corner pocket.
Too considerable adjustment of height cause dewing
-
from drain-pain.
7.3. WIRING CONNECTION FOR AIR PANEL

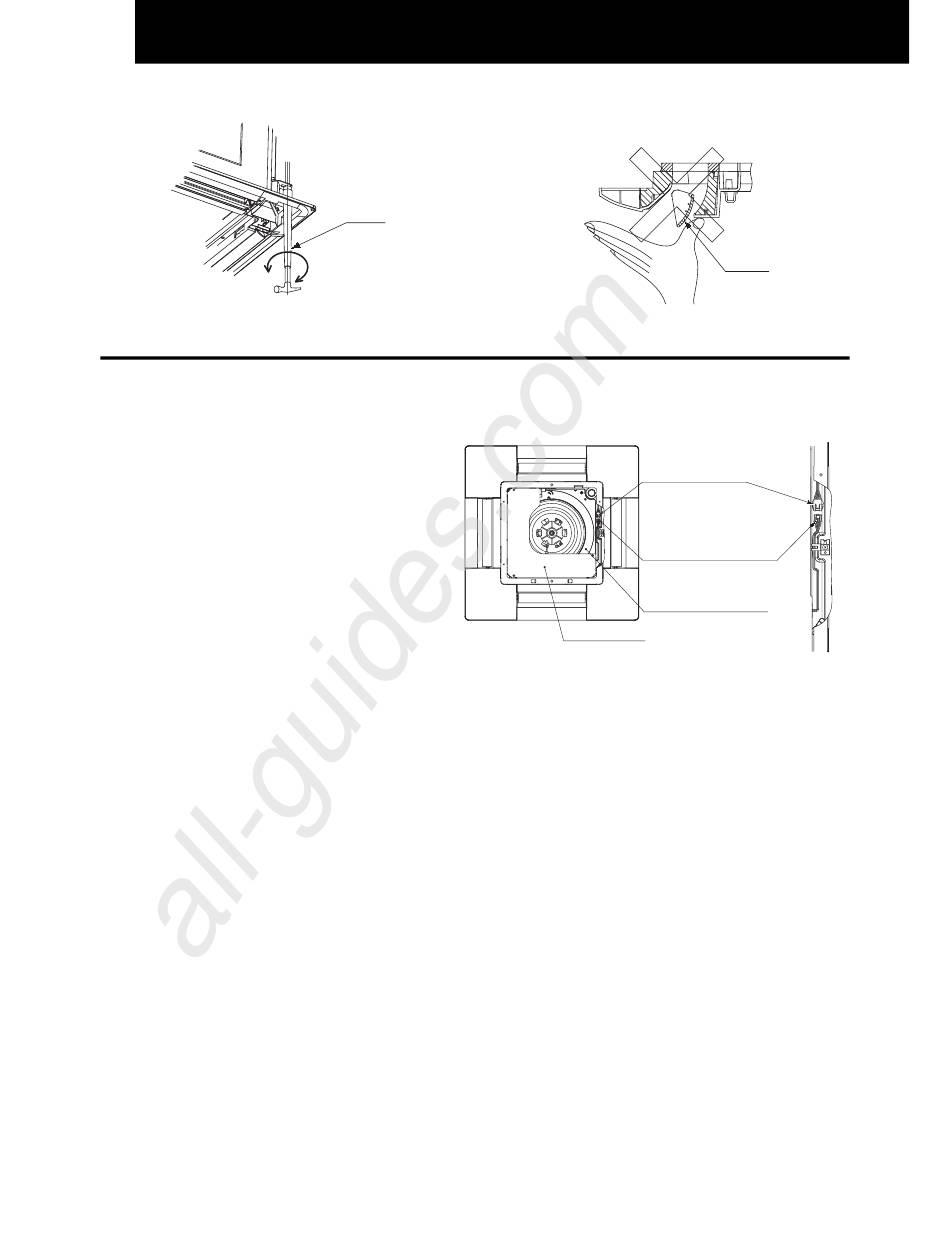

1. The beside connector is used with the air
panel (view from lower surface of air panel
without air intake grille)
2. Connect the connectors for auto-swing motor
(Low Voltage 5pin, White).
All manuals and user guides at all-guides.com
-
Wrench
Do not turn the air louver by hand. If moved, the louver
mechanism would be damaged.
Connector for Auto Swing Motor
(Air Panel Side)
Connector for Auto Swing Motor
(Indoor Unit Side)
Without Air Inlet Grille
Electrical Box
Louver
Enlarged View
