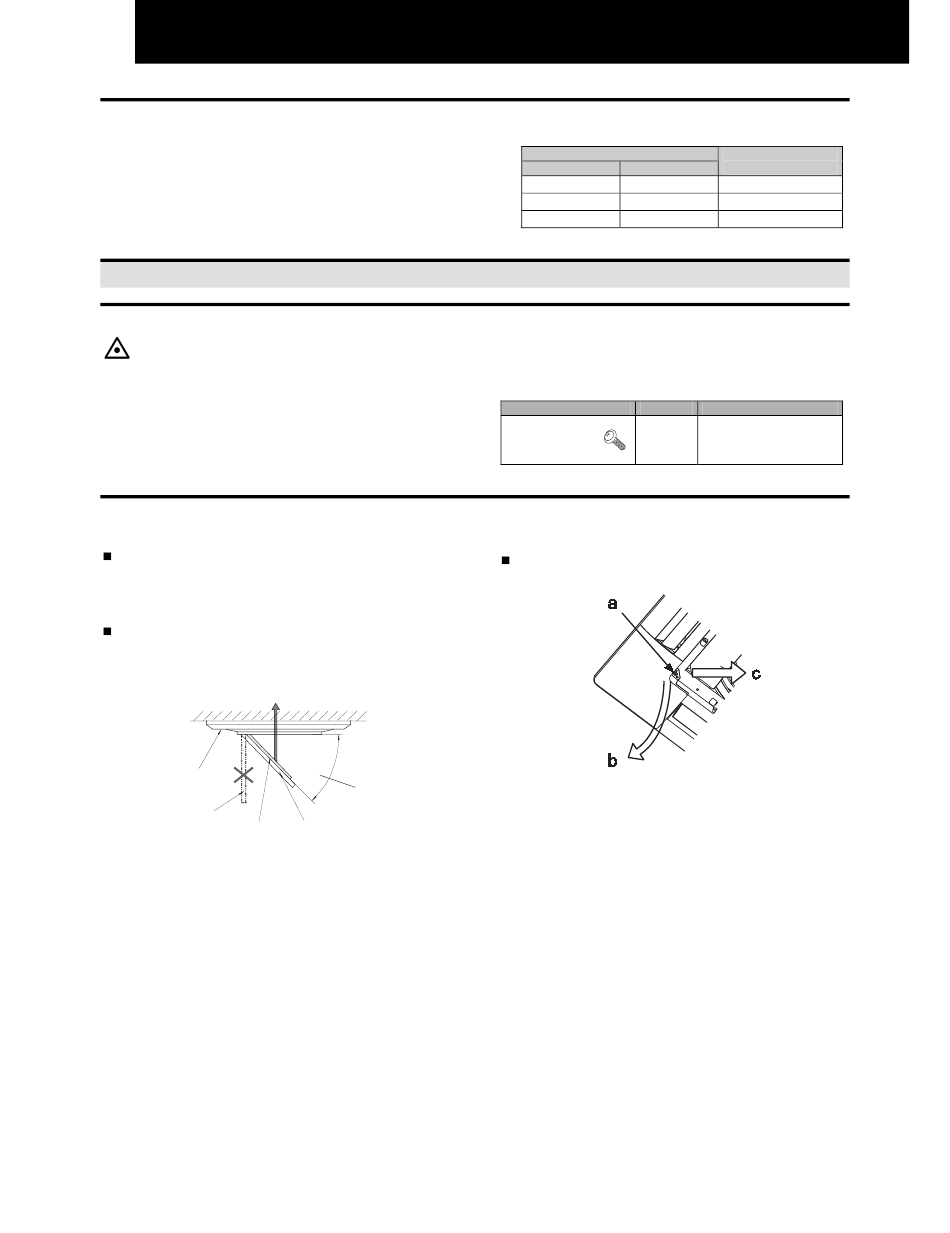

INSTALLATION OF OPTIONAL AIR PANEL: P-N23WAM
8
6.2. SETTING OF HIGH SPEED TAP
The air flow volume can be changed according to the
ceiling height by setting the item code to "C5" form the
remote control switch (Refer to the Installation &
Maintenance Manual of the remote control switch for
details).
7 INSTALLATION OF OPTIONAL AIR PANEL: P-N23WAM
7.1. FACTORY-SUPPLIED ACCESSORIES
CAUTION:
When the air panel is unpacked, place it on insulation
material, etc. to protect the sealing insulation from
scratches
Check to ensure that the following accessories are packed
with the air panel.

7.2. INSTALLATION

Location of Suspension Brackets
1. Check to ensure that the suspension brackets of the
indoor unit are located approximately 90mm higher than
the false ceiling.
Removing Air Intake Grille from Air Panel.
1. Open the air intake grille to an angle of approximately
45º from the surface of the air panel as shown below.
Take up the grille keeping it inclined
Ceiling
Air Panel
Wrong
Air Filter
2. Lift the grille keeping it inclined
3. Draw the grille towards the open space after lifting.
All manuals and user guides at all-guides.com
45º
Correct
Air Intake Grille
Ceiling Height
1.0 to 1.5 HP 2.0 HP
Below 2.5m Below 2.7m
2.5 to 2.9m 2.7 to 3.1m
2.9 t o 3.2m 3.1 to 3.5m
If any of these accessories are not packed in the packing,
please contact your contractor.
Accessory Quantity
Long Screw
4
(M5)
Removing Cover for Corner Pocket (4 Portions)
1. Remove the screw at mark "a".
2. Pull the fixing hook towards the arrow mark "b".
3. The corner pocket can be removed to pull the corner
pocket toward the arrow mark "c".
Setting of Remote
Control Switch
Standard
High Speed (1)
High Speed (2)
Purpose
For Fixing Panel
