Use and installation manual Page of
(PVI-10.0/12.0-I-OUTD(-S)-400 Rev:1.3)

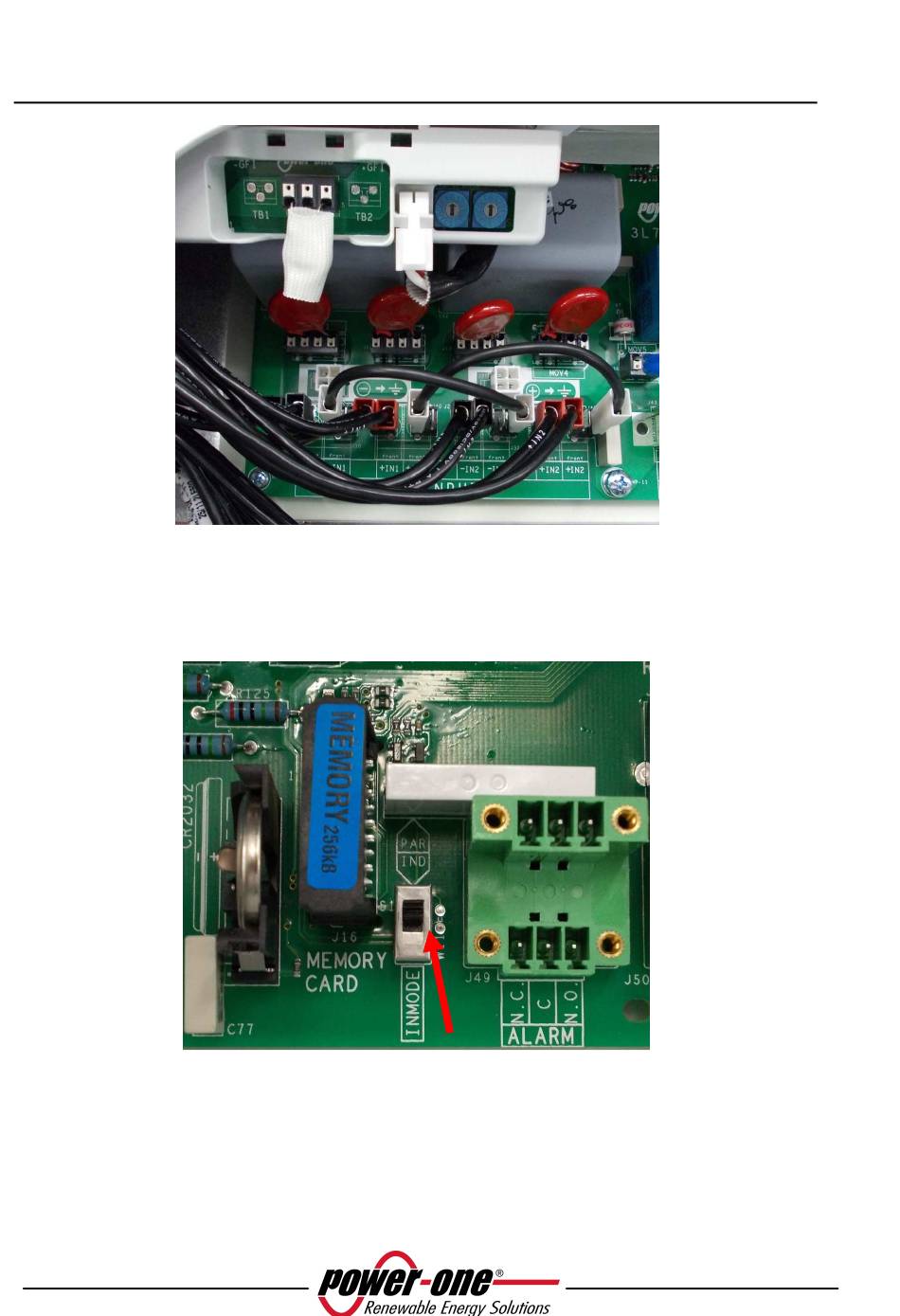

Fig. 10 –Connection of channels in parallel
Check that the jumpers are inserted, and that the selector switch in Fig. 11 is in the
"PAR" position.
Fig. 11– Parallel/independent configuration switch
