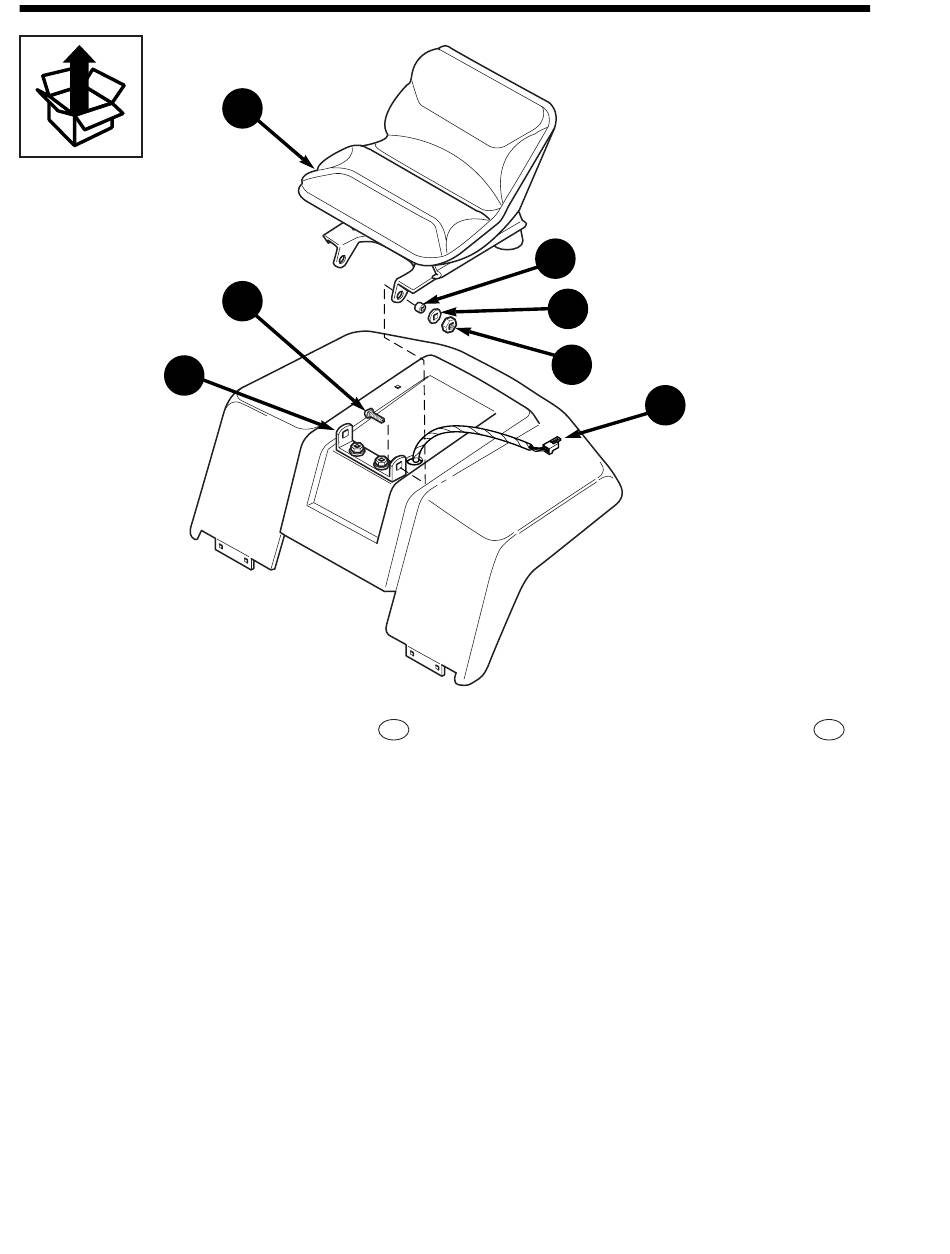

Install seat assembly
1. The seat assembly hardware is located in the tractor
hardware bag.
2. Connect the seat assembly (A) to the hinge (C) using
3/8-16 x 1" carriage bolts (B), spacers (D), washers (E)
and nylock nuts (F) as shown.
3. Connect the seat switch wire harness (G) to the seat switch
on the bottom of the seat assembly.
H-24
A
B
GB
D
E
F
Montér førersædet
1. Sættet med førersædebeslag befinder sig i posen
med traktorbeslag.
2. Sæt førersædet (A) på hængslet (C) med 3/8-16 x 1
bræddebolte (B), afstandsbøsninger (D), fladskiver (E) og
selvlåsende møtrikker (F) som vist.
3. Forbind kabelstikket (G) med sædekontakten på undersiden
af sædet.
G
DA
