AKM2G Instructions | 9 Connector Pinout

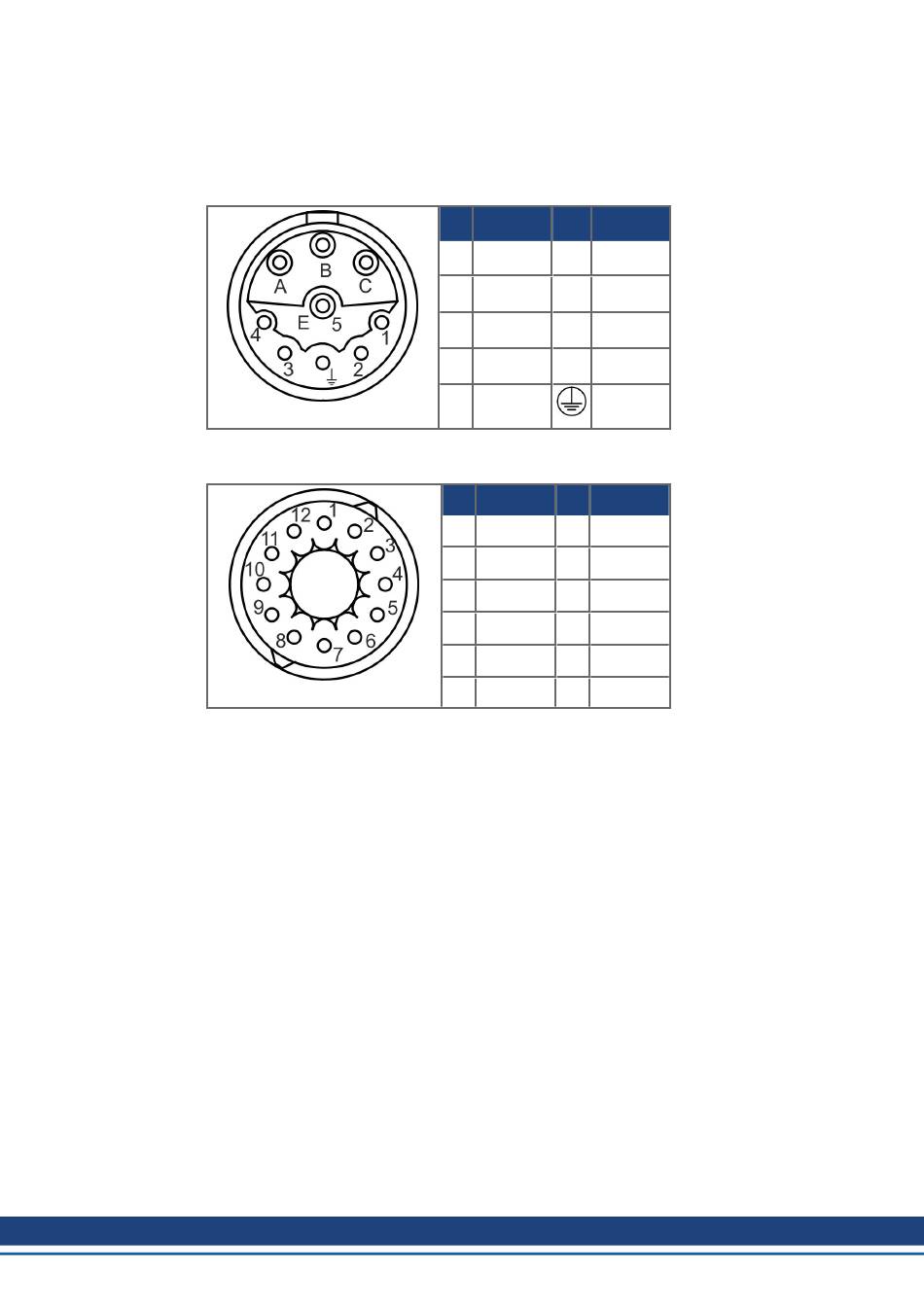

9.1 Connector codes Y: AKM2G2
9.1.1 Power

9.1.2 Resolver (Feedback code R-)

240 Kollmorgen | kdn.kollmorgen.com | May 2019
Pin Function Pin Function
1 BR + A U
2 BR - B W
3 N/C C V
4 N/C E N/C
5 N/C PE
Pin Function Pin Function
1 N/C 7 S2, cos+
2 TH + 8 S1, sin+
3 S4, cos- 9 R1, ref+
4 S3, sin- 10 N/C
5 R2, ref- 11 N/C
6 TH - 12 N/C
