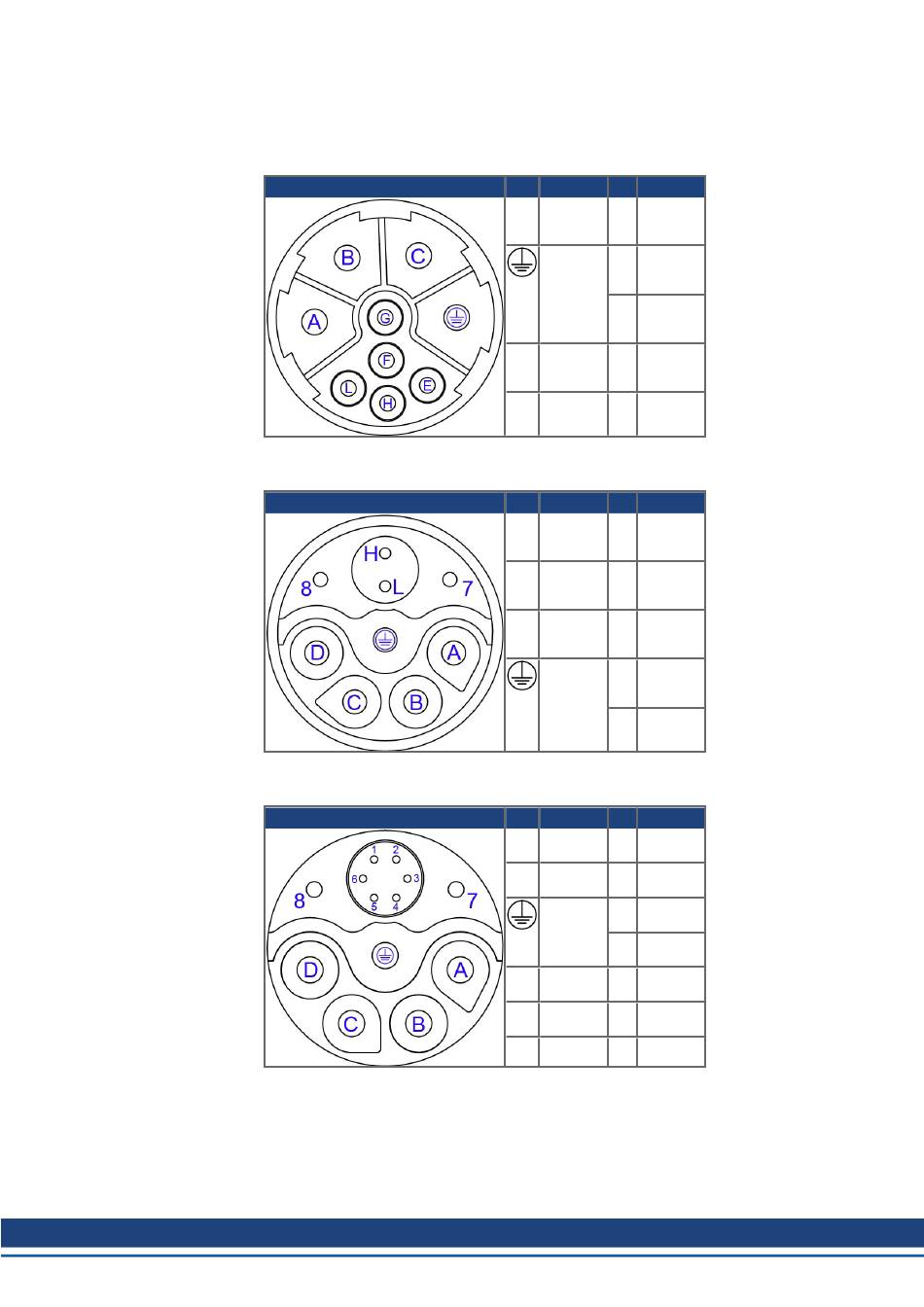

9.3 Connector code D: AKM2G2 - AKM2G7
9.3.1 Power & SFD3 AKM2G2 - AKM2G7 (Feedback codes CA)
9.3.2 Power & DSL AKM2G2 - AKM2G7 (Feedback codes GU)
9.3.3 Power & EnDat 2.2 Feedback AKM2G2 - AKM2G7 (Feedback codes LD)
AKM2G Instructions | 9 Connector Pinout
Pin Function Pin Function
A U F BR+
PE G BR-
L SFD-
C W H SFD+
B V E N/C
Pin Function Pin Function
A U C W
B V D N/C
H DSL+ L DSL–
PE 7 BR–
8 BR+
Pin Function Pin Function
A U C W
B V D N/C
PE 7 BR–
8 BR+
1 Up 2 0 V
3 Data 4 Data
5 Clock 6 Clock
