AKM2G Instructions | 8 Dimension drawings

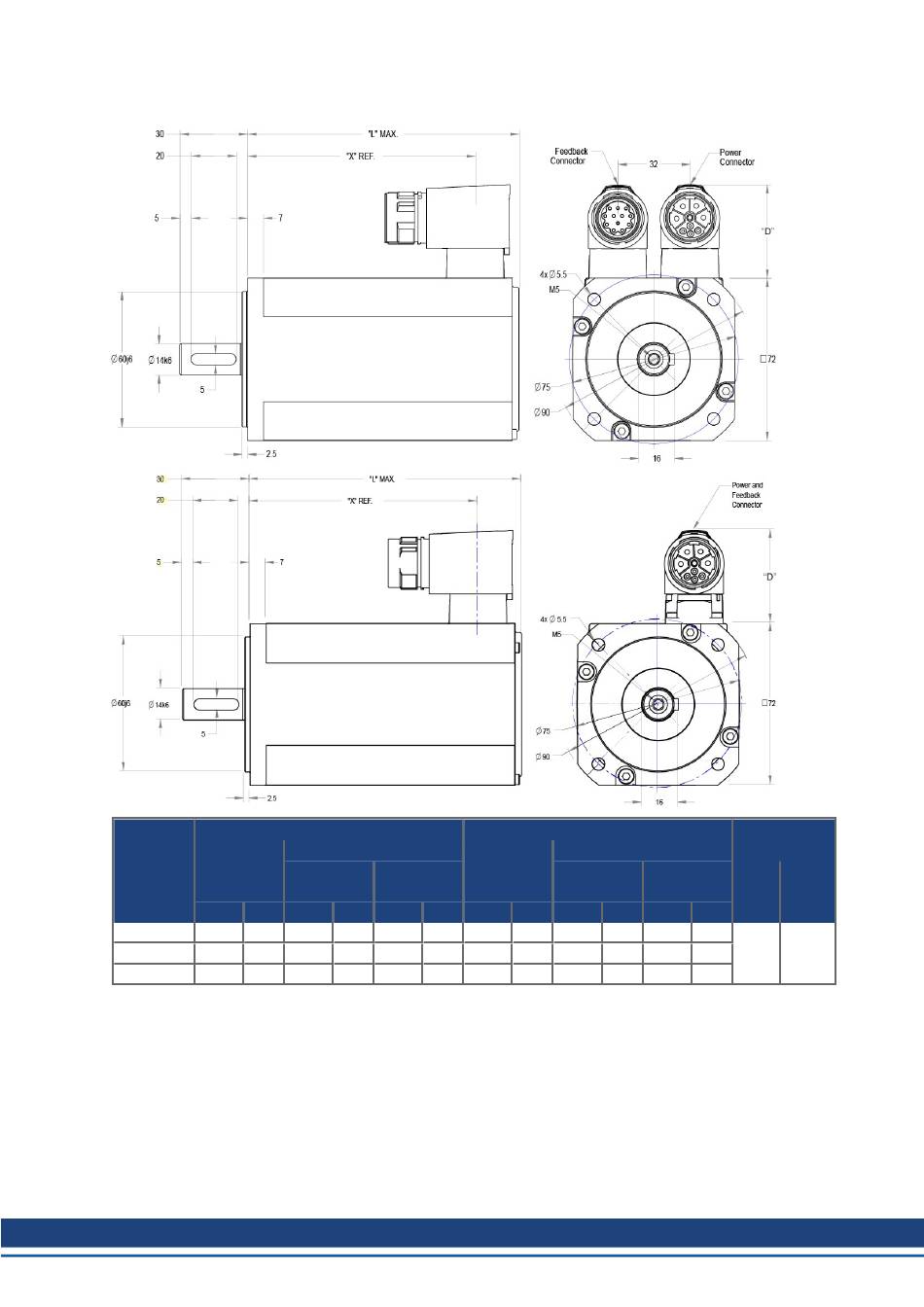

8.2 Dimensions/Radial Forces AKM2G3 (Ax flanges)

Model Non-Brake Brake D -
Connector
X Ref L Max X Ref L Max.
Feedback
Resolver / DSL / Resolver / DSL / SFD3 DSL &
SFD3 EnDat 2.2 SFD3 EnDat 2.2 EnDat
mm inch mm inch mm inch mm inch mm inch mm inch
AKM2G-31 101.10 3.980 121.40 4.780 129.40 5.094 142.30 5.602 162.60 6.402 170.60 6.717 41.4 42.8
AKM2G-32 132.25 5.207 152.55 6.006 160.55 6.321 173.45 6.829 193.75 7.628 201.75 7.943
AKM2G-33 163.40 6.433 183.70 7.232 191.70 7.547 204.60 8.055 224.90 8.854 232.90 9.169
Kollmorgen | kdn.kollmorgen.com | May 2019 227
