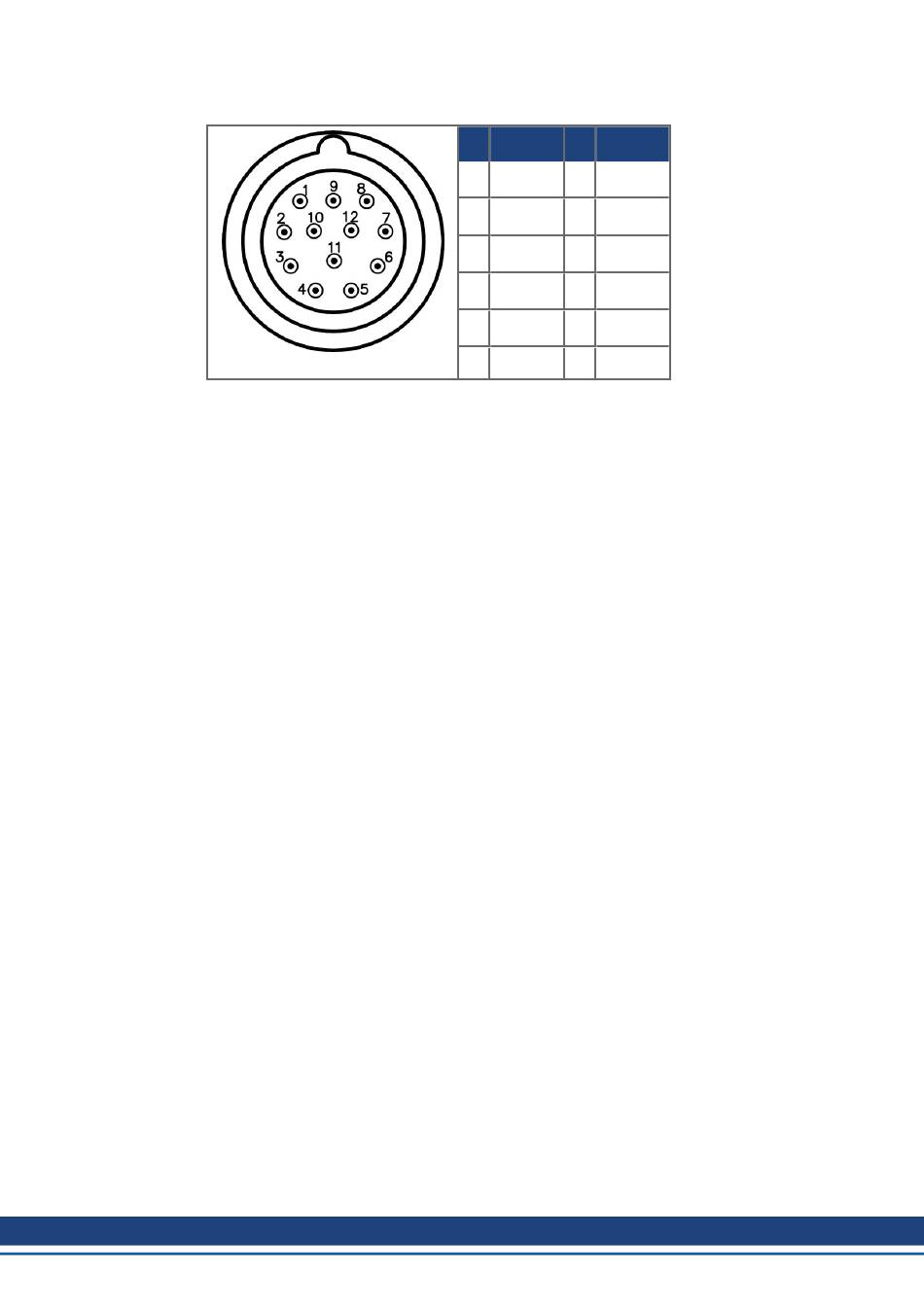

AKM2G Instructions | 9 Connector Pinout
9.2.2 Resolver (Feedback code R-)
242
Kollmorgen | kdn.kollmorgen.com | May 2019
Pin Function Pin Function
1 N/C
7 S2, cos+
2 TH +
8 S1, sin+
3 S4, cos-
9 R1, ref+
4 S3, sin-
10 N/C
5 R2, ref-
11 N/C
6 TH -
12 N/C
