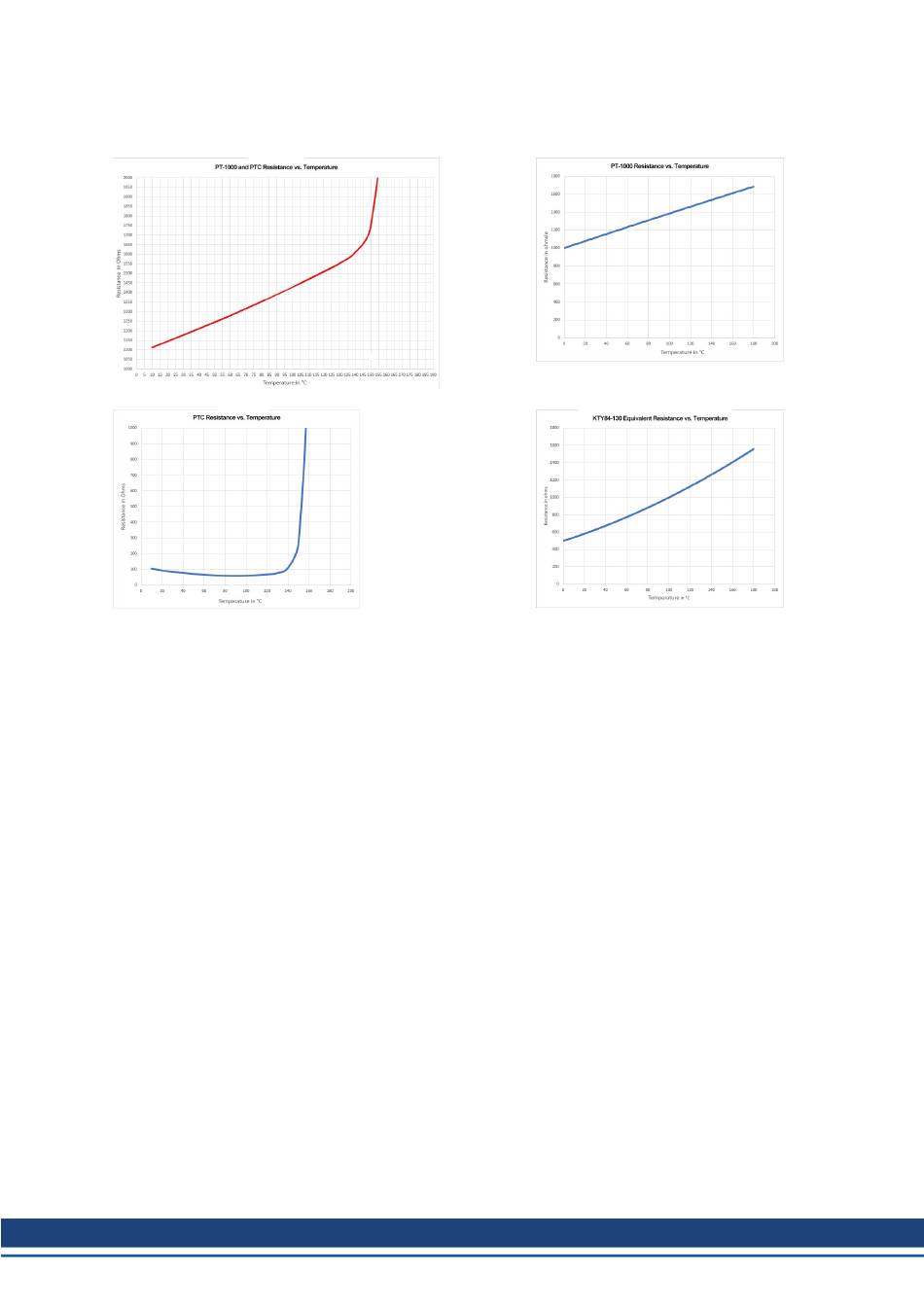

Thermal Device Options : Resistance vs. Temperature Graphs
Option 0
Option 2
Thermal Device Option curves show the equivalent resistance in ohms that corresponds to a
given temperature of the motor windings. The drive used with the motor must support the
selected thermal device for proper operation.
AKM2G Instructions | 1 English
Option 1
Option 3
