2. Heat pump installation

2.1. Transport and handling

The heat pump must be transported vertically and not exposed to adverse weather conditions. It can be lain carefully on its rear
side to facilitate transportation to the installation site.

Do not tilt the heat pump more than 45º, since this could impair proper equipment operation.

Due to its heavy weight, the heat pump should be handled by two workers using a forklift for heavy
NOTE
loads.

2.2. Dimensions and connections

The overall dimensions and hydraulic connections of the ecoGEO Compact and ecoGEO Basic heat pumps are described below.
537
462
139
64
12
11
10

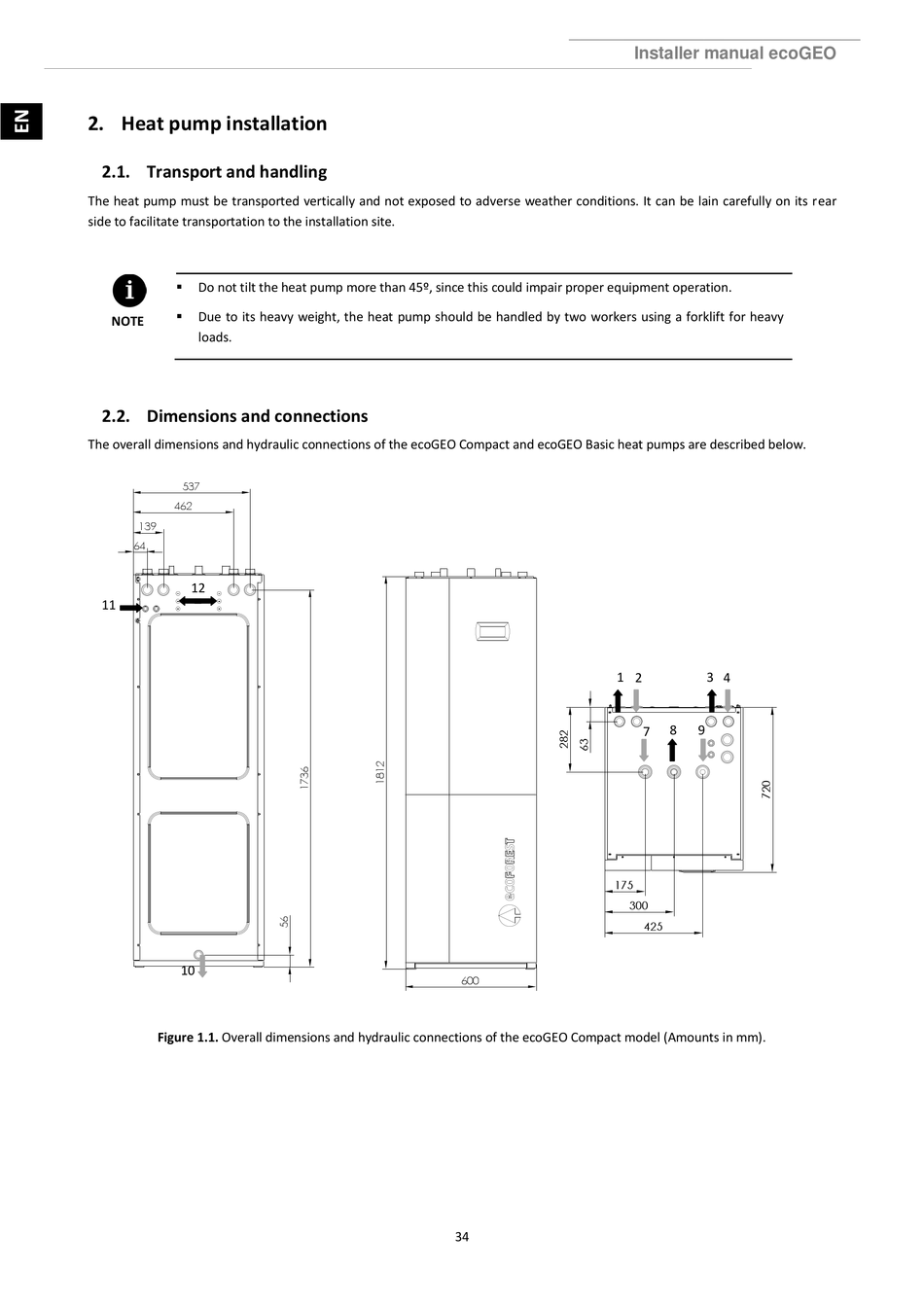

Figure 1.1. Overall dimensions and hydraulic connections of the ecoGEO Compact model (Amounts in mm).
1 2
175
600
34
Installer manual ecoGEO
3 4
8 9
7
300
425
