thT bus terminals
In addition to digital input control (interior thermostats) interior terminals with thT data bus communication can also be used.
These terminals capture the inside temperature and humidity of the area associated with each outlet unit, DG1 – SG4, using a serial
cable over a Modbus protocol. They also have a digital output to control a valve for the area. A single thT terminal can be
connected per outlet unit.
Read the assembly instructions carefully before installing the terminals.
thT terminal communication bus
Follow the recommendations below to connect the thT terminals to the heat pump.

Use a three-pole, shielded AWG 20-22 cable for the connection.

Connect the terminals in series for installations with more than one terminal in the network. The maximum length of the
circuit assembly should not exceed 500 metres. For connection networks with more than two thTs, it is necessary to install
a 120 Ohm heater between Rx+/Tx+ and Rx-/Tx- in the first and last terminal to prevent possible communication problems.

Configure the terminal address according to the settings of the controller following the steps described in the thT terminal
manual.
24Vac
Com
Sgn
24Vdc
Com
Sgn

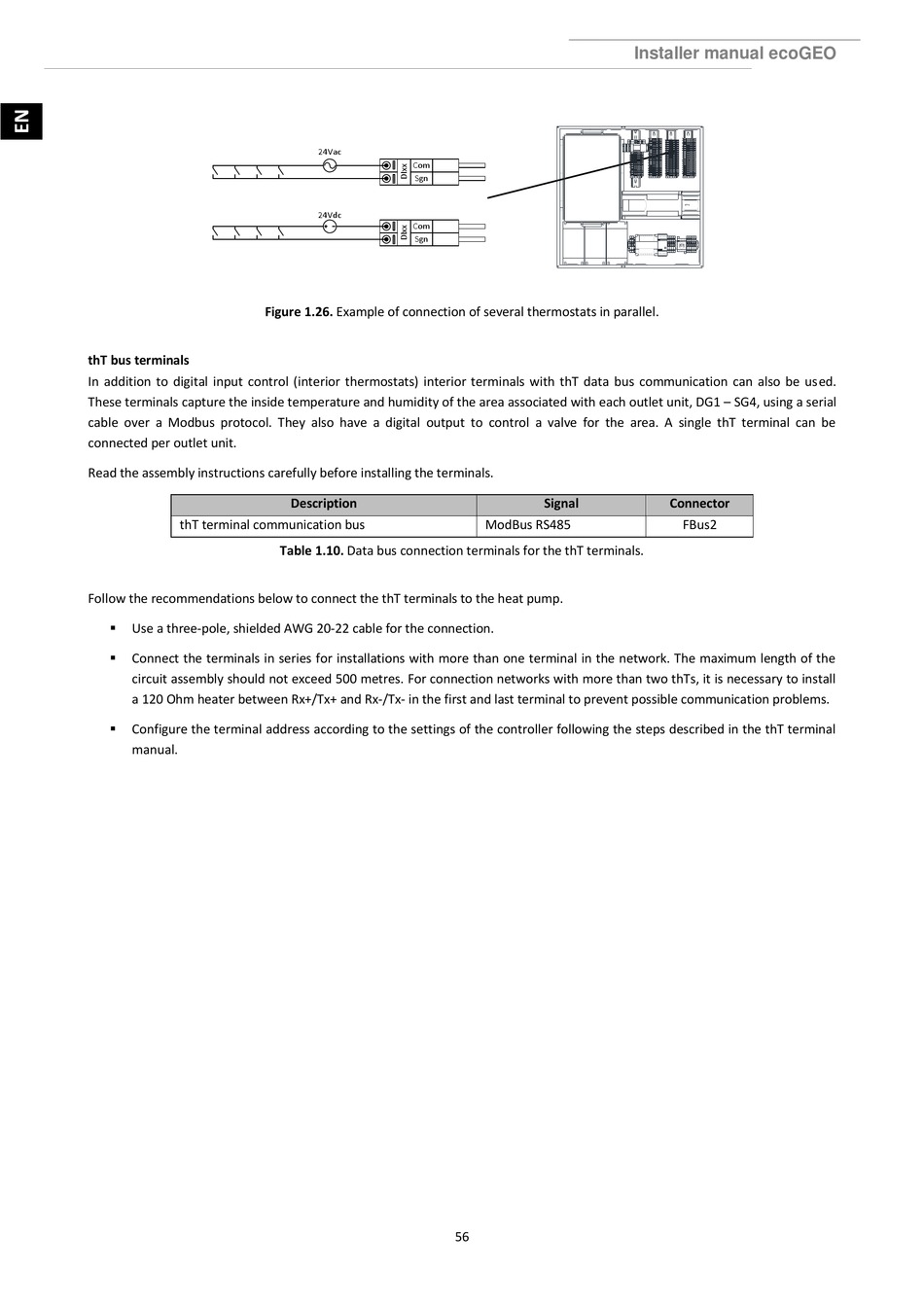

Figure 1.26. Example of connection of several thermostats in parallel.
Description
Table 1.10. Data bus connection terminals for the thT terminals.
Signal
ModBus RS485
56
Installer manual ecoGEO
Connector
FBus2
