Danfoss VLT AHF 010 Projektierungshandbuch Seite 98

Spezifikationen
7 7

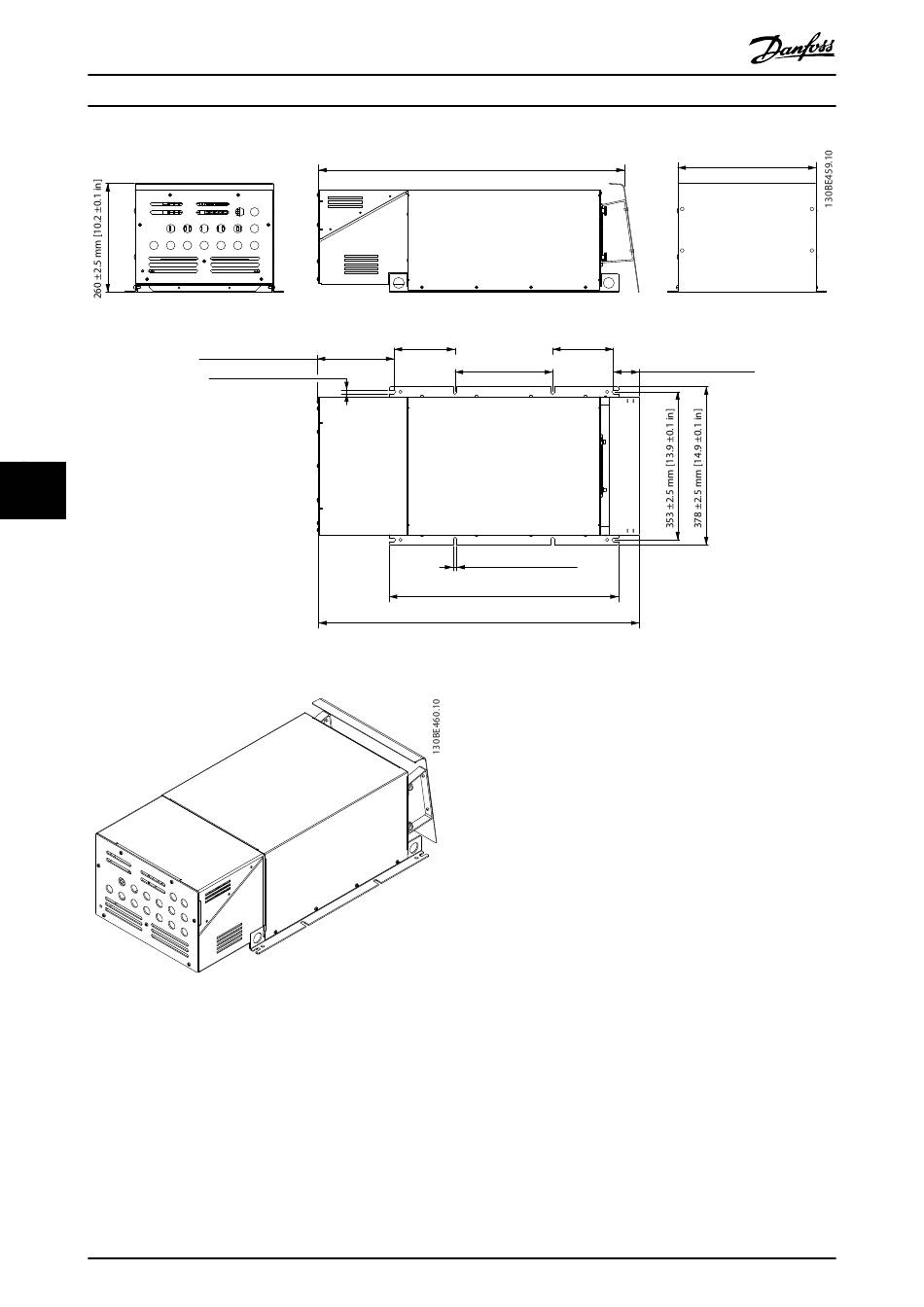

Abbildung 7.69 IP21 X3 Interner Lüfter 1
Abbildung 7.70 IP21 X3 Interner Lüfter 1, 3D-Ansicht
96
VLT
145 ±1 mm [5.7 ±0.04 in]
184 ±2.5 mm [7.2 ±0.1 in]
9 ±1 mm [0.4 ±0.04 in]
Danfoss A/S © 10/2016 Alle Rechte vorbehalten.
®
Advanced Harmonic Filter AHF 005/AHF 010
730 ±2.5 mm [28.7 ±0.1 in]
145 ±1 mm [5.7 ±0.04 in]
233 ±1 mm [9.2 ±0.04 in]
9 ±1 mm [0.4 ±0.04 in]
547 ±2.5 mm [21.5 ±0.1 in]
765 ±2.5 mm [30.1 ±0.1 in]
330 ±2.5 mm [13.0 ±0.1 in]
61 ±2.5 mm [2.4 ±0.1 in]
