Danfoss VLT AHF 010 Projektierungshandbuch Seite 120

Spezifikationen
323.3 ±2.5 mm [12.7 ±0.1 in]
7 7

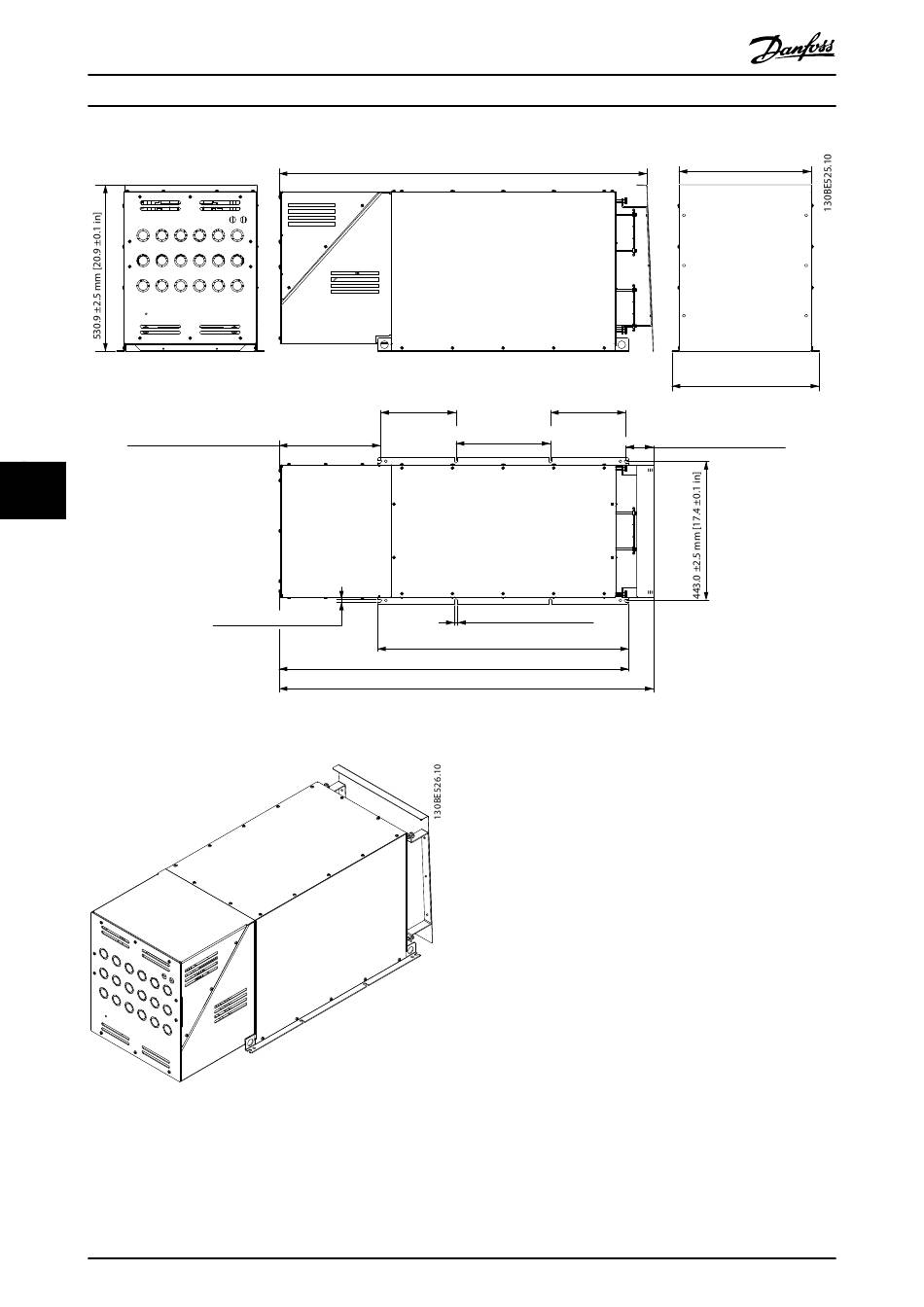

Abbildung 7.113 X8 IP21 Externer Lüfter 1
Abbildung 7.114 X8 IP21 Externer Lüfter 1, 3D-Ansicht
118
®
VLT Advanced Harmonic Filter AHF 005/AHF 010
1171.5 ±4.0 mm [46.1 ±0.16 in]
240.0 ±1.0 mm [9.4 ±0.04 in]
9.0 ±1.0 mm [0.4 ±0.04 in]
Danfoss A/S © 10/2016 Alle Rechte vorbehalten.
240.0 ±1.0 mm [9.4 ±0.04 in]
300.0 ±1.0 mm [11.8 ±0.04 in]
9.0 ±1.0 mm [0.4 ±0.04 in]
800.0 ±2.5 mm [31.5 ±0.1 in]
1113.4 ±4.0 mm [43.8 ±0.16 in]
1192.1 ±4.0 mm [46.9 ±0.16 in]
421.0 ±2.5 mm [16.6 ±0.1 in]
468.0 ±2.5 mm [18.4 ±0.1 in]
88.7 ±2.5 mm [3.5 ±0.1 in]
MG80C503
