X1 Mains 300 mm
PE M12
164.5 ±2.5 mm [6.5 ±0.1 in]
9.0 ±1.0 mm [0.4 ±0.04 in]

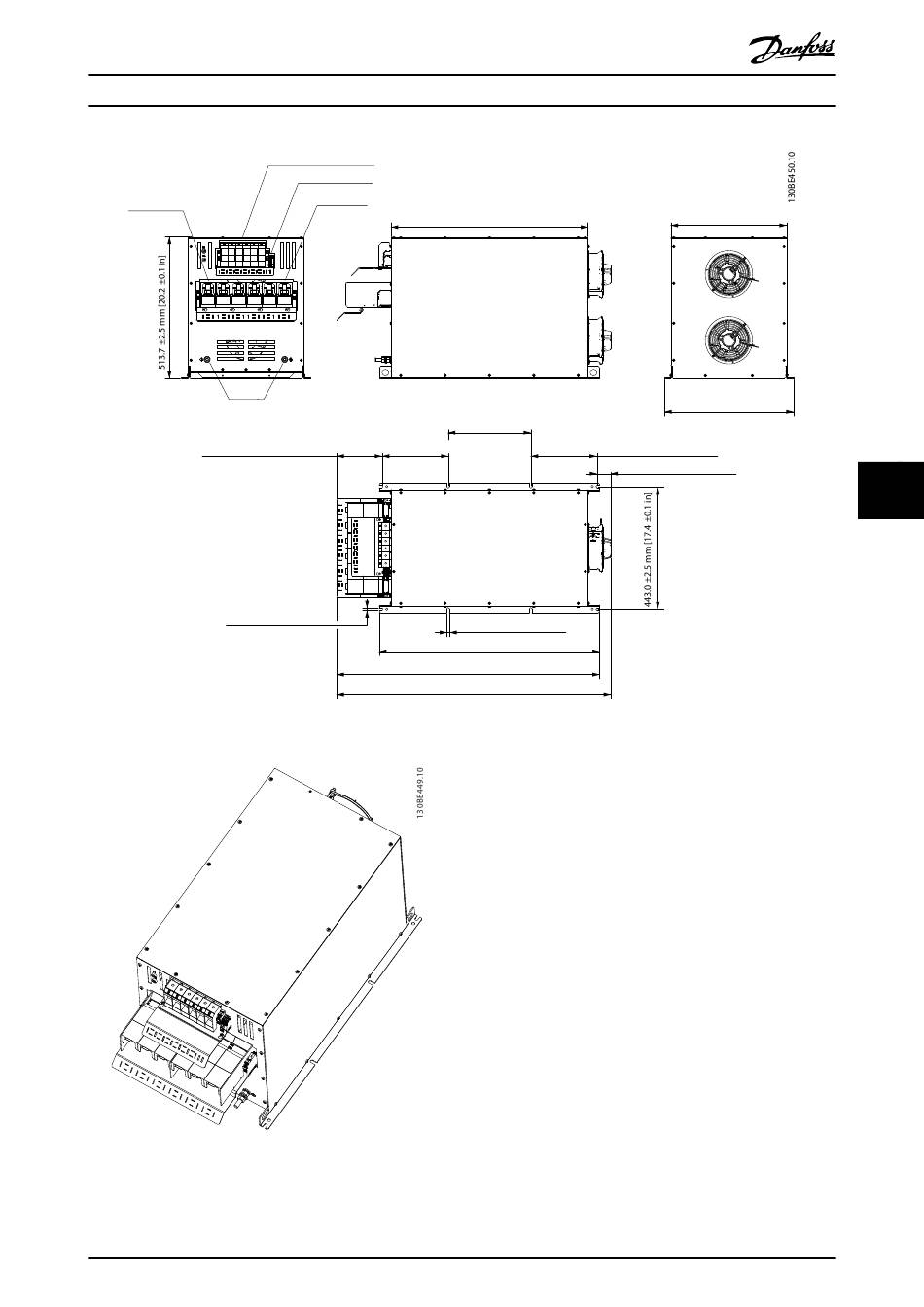

Abbildung 7.59 IP20 X8 Externer Lüfter 2
Abbildung 7.60 IP20 X8 Externer Lüfter 2, 3D-Ansicht
MG80C503
Projektierungshandbuch
2
X3/X4 Capacitor disconnect 120 mm
2
A/B Temperature 2.5 mm
2
X2 Drive 300 mm
715.0 ±2.5 mm [28.1 ± 0.1 in]
300.0 ±1.0 mm [11.8 ±0.04 in]
240.0 ±1.0 mm [9.4 ±0.04 in]
800.0 ±2.5 mm [31.5 ±0.1 in]
955.0 ±4.0 mm [37.6 ±0.16 in]
994.5 ±4.0 mm [39.2 ±0.16 in]
Danfoss A/S © 10/2016 Alle Rechte vorbehalten.
240.0 ±1.0 mm [9.4 ±0.04 in]
50.1 ±2.5 mm [2.0 ±0.1 in]
9.0 ±1.0 mm [0.4 ±0.04 in]
420.0 ±2.5 mm [16.5 ±0.1 in]
468.0 ±2.5 mm [18.4 ±0.1 in]
