Spezifikationen
205 ±1 mm [8.1 ±0.04 in]
7 7

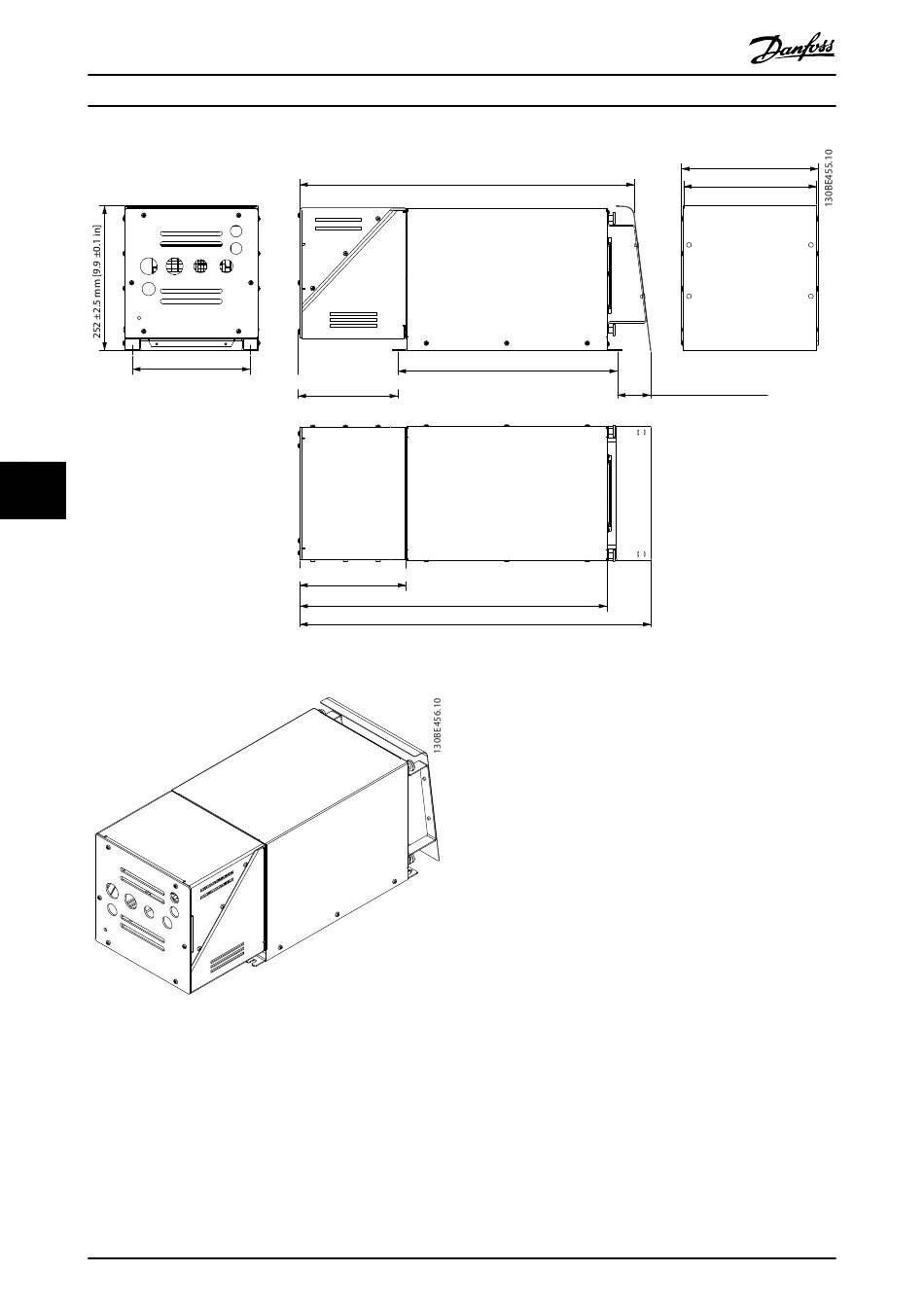

Abbildung 7.65 IP21 X2 Interner Lüfter 1
Abbildung 7.66 IP21 X2 Interner Lüfter 1, 3D-Ansicht
94
®
VLT Advanced Harmonic Filter AHF 005/AHF 010
582 ±2.5 mm [22.9 ±0.1 in]
382 ±2.5 mm [15.0 ±0.1 in]
174 ±2.5 mm [6.8 ±0.1 in]
185 ±2.5 mm [7.3 ±0.1 in]
534 ±2.5 mm [21.0 ±0.10 in]
611 ±2.5 mm [24.0 ±0.1 in]
