Spezifikationen
226.8 ±2.5 mm [8.9 ±0.1 in]
7 7

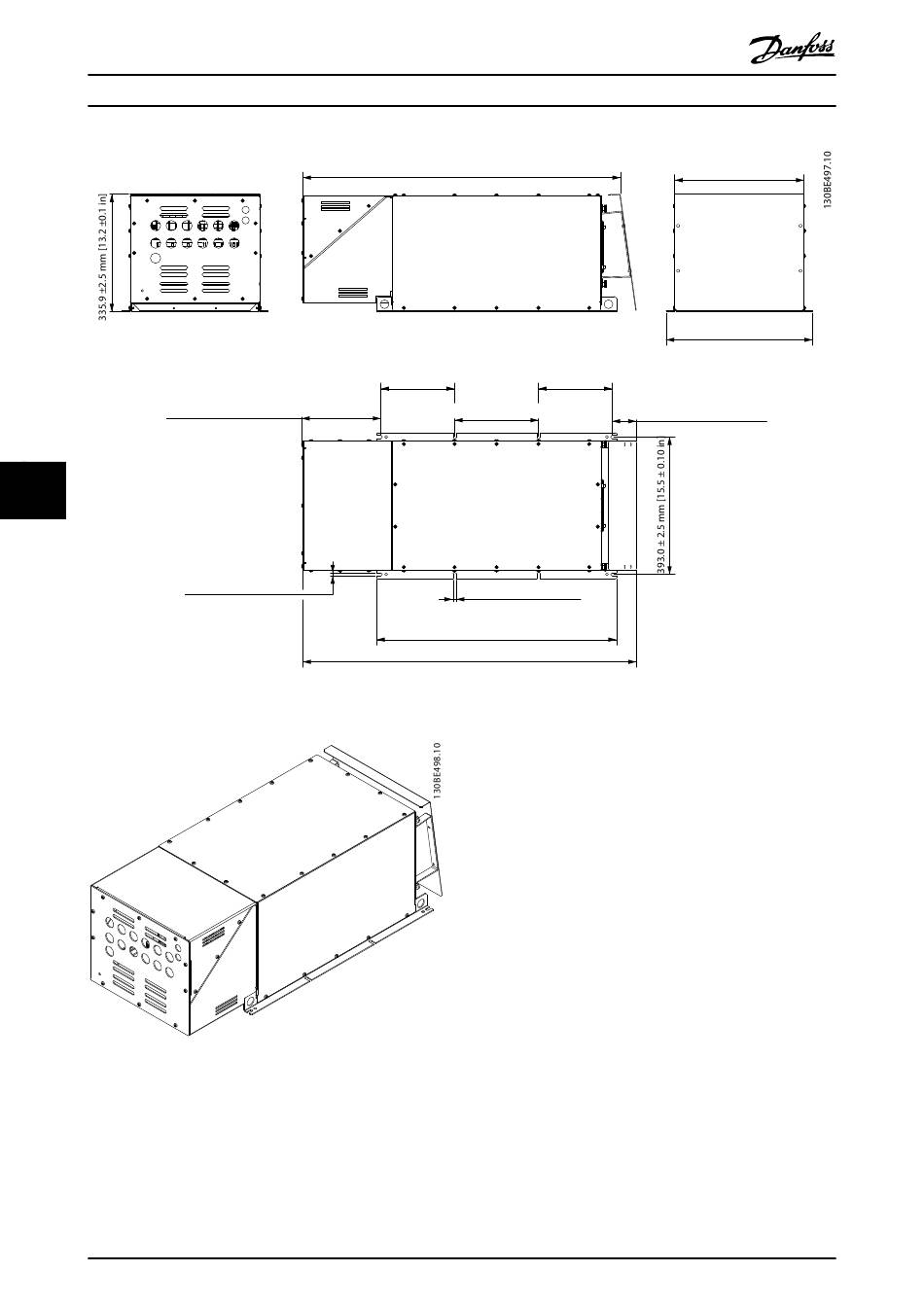

Abbildung 7.85 IP21 X5 Interner Lüfter 1
Abbildung 7.86 IP21 X5 Interner Lüfter 1, 3D-Ansicht
104
VLT
210.5 ±1 mm [8.3 ±0.04 in]
9.0 ±1 mm [0.4 ±0.04 in]
Danfoss A/S © 10/2016 Alle Rechte vorbehalten.
®
Advanced Harmonic Filter AHF 005/AHF 010
908 ±4.0 mm [35.7 ±0.16 in]
210.5 ±1 mm [8.3 ±0.04 in]
240.0 ±1 mm [9.4 ±0.04 in]
9.0 ±1 mm [0.4 ±0.04 in]
685.0 ±2.5 mm [27.0 ±0.10 in]
953.0 ±4.0 mm [37.5 ±0.16 in]
370.0 ±2.5 mm [14.6 ±0.1 in]
418.0 ±2.5 mm [16.5 ±0.1 in]
69.0 ±2.5 mm [2.7 ±0.1 in]
