Danfoss VLT AHF 010 Projektierungshandbuch Seite 116

Spezifikationen
323.4 ±2.5 mm [12.7 ±0.1 in]
7 7

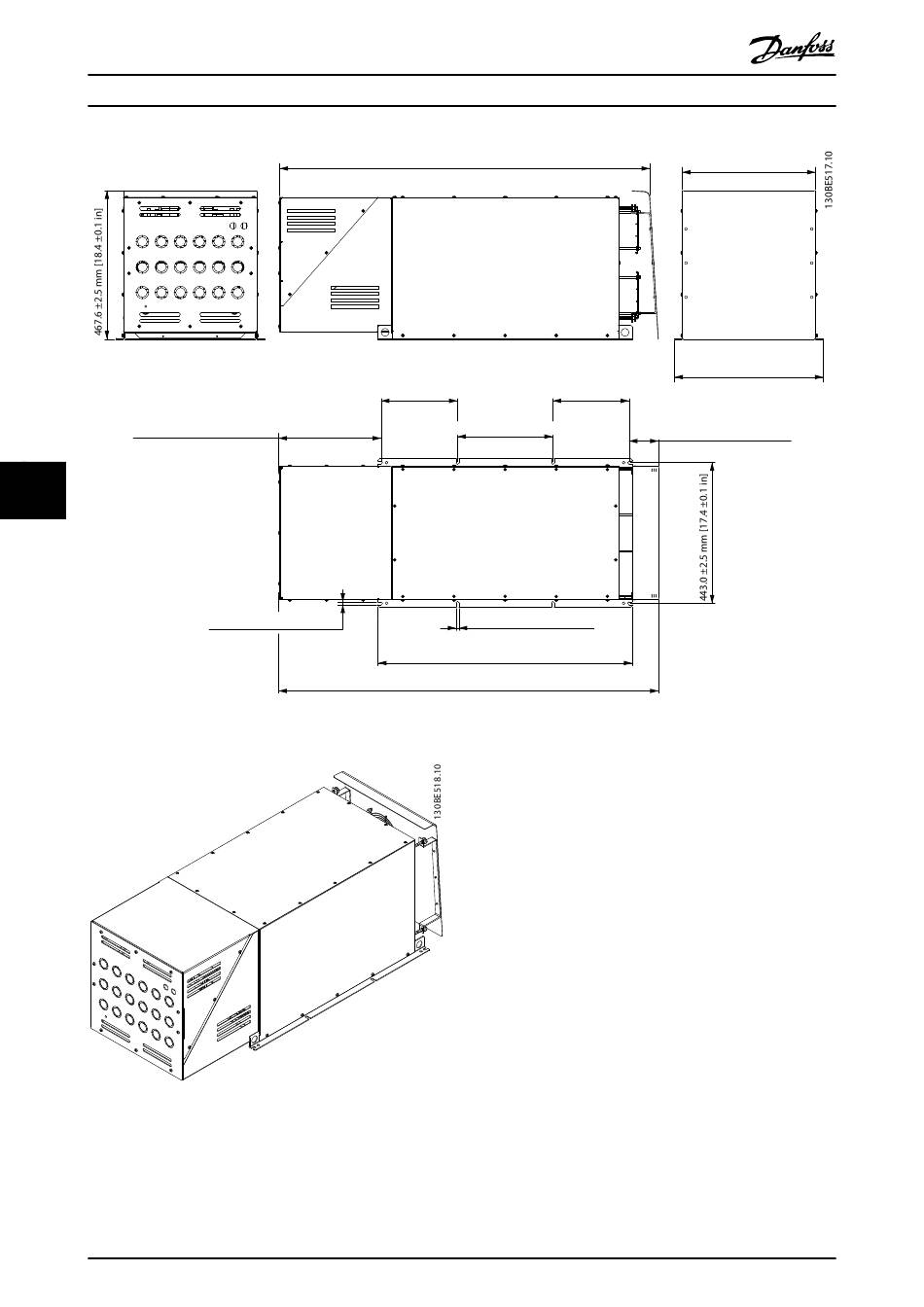

Abbildung 7.105 X7 IP21 Externer Lüfter 1
Abbildung 7.106 X7 IP21 Externer Lüfter 1, 3D-Ansicht
114
®
VLT Advanced Harmonic Filter AHF 005/AHF 010
240.0 ±1.0 mm [9.4 ±0.04 in]
9.0 ±1.0 mm [0.4 ±0.04 in]
Danfoss A/S © 10/2016 Alle Rechte vorbehalten.
1165.2 ±4.0 mm [45.9 ±0.16 in]
240.0 ±1.0 mm [9.4 ±0.04 in]
300.0 ±1.0 mm [11.8 ±0.04 in]
9.0 ±1.0 mm [0.4 ±0.04 in]
800.0 ±2.5 mm [31.5 ±0.1 in]
1196.1 ±4.0 mm [47.1 ±0.16 in]
420.0 ±2.5 mm [16.5 ±0.1 in]
468.0 ±2.5 mm [18.4 ±0.1 in]
92.8 ±2.5 mm [3.7 ±0.1 in]
MG80C503
