Spezifikationen
X1 Mains 50 mm
X2 Drive 50 mm
X3/X4 Capacitor disconnect 16 mm
F1 F2
PE M8
210.5 ±1.0 mm [8.3 ±0.04 in]
94.3 ±2.5 mm [3.7 ±0.1 in]
9 ±1.0 mm [0.4 ±0.04 in]

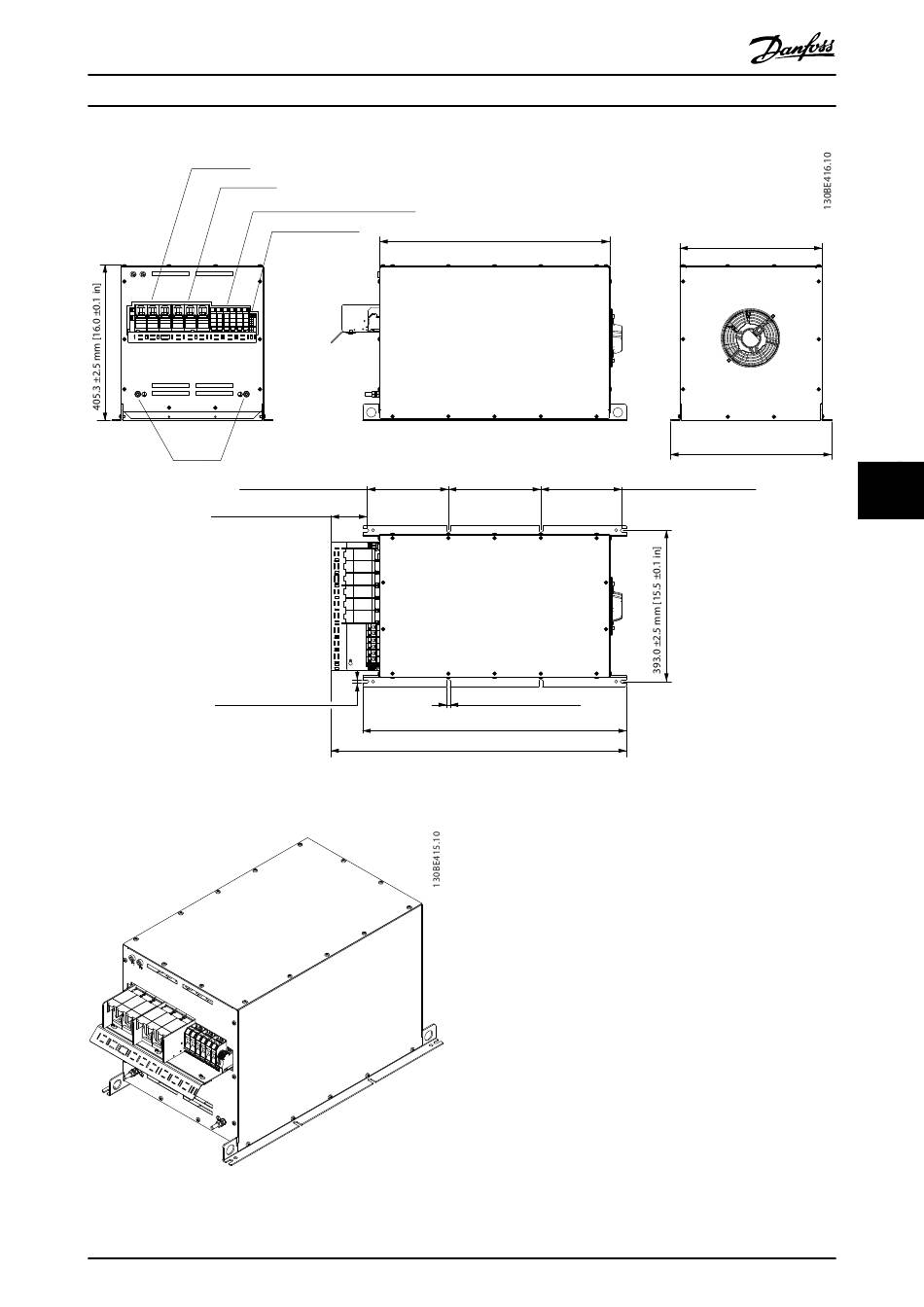

Abbildung 7.39 IP20 X6 Interner Lüfter 2
Abbildung 7.40 IP20 X6 Interner Lüfter 2, 3D-Ansicht
MG80C503
Projektierungshandbuch
2
2
2
2
A/B Temperature 2.5 mm
597.0 ±2.5 mm [23.5 ±0.1 in]
240.0 ±1.0 mm [9.4 ±0.04 in]
685.0 ±2.5 mm [27.0 ±0.1 in]
767.3 ±2.5 mm [30.2 ±0.1 in]
Danfoss A/S © 10/2016 Alle Rechte vorbehalten.
210.5 ±1.0 mm [8.3 ±0.04 in]
9 ±1.0 mm [0.4 ±0.04 in]
370.0 ±2.5 mm [14.6 ±0.1 in]
418.0 ± 2.5 mm [16.5 ± 0.10 in]
81
7
7
