Danfoss VLT AHF 010 Projektierungshandbuch Seite 102

Spezifikationen
205.6 ±2.5 mm [8.1 ±0.1 in]
7 7

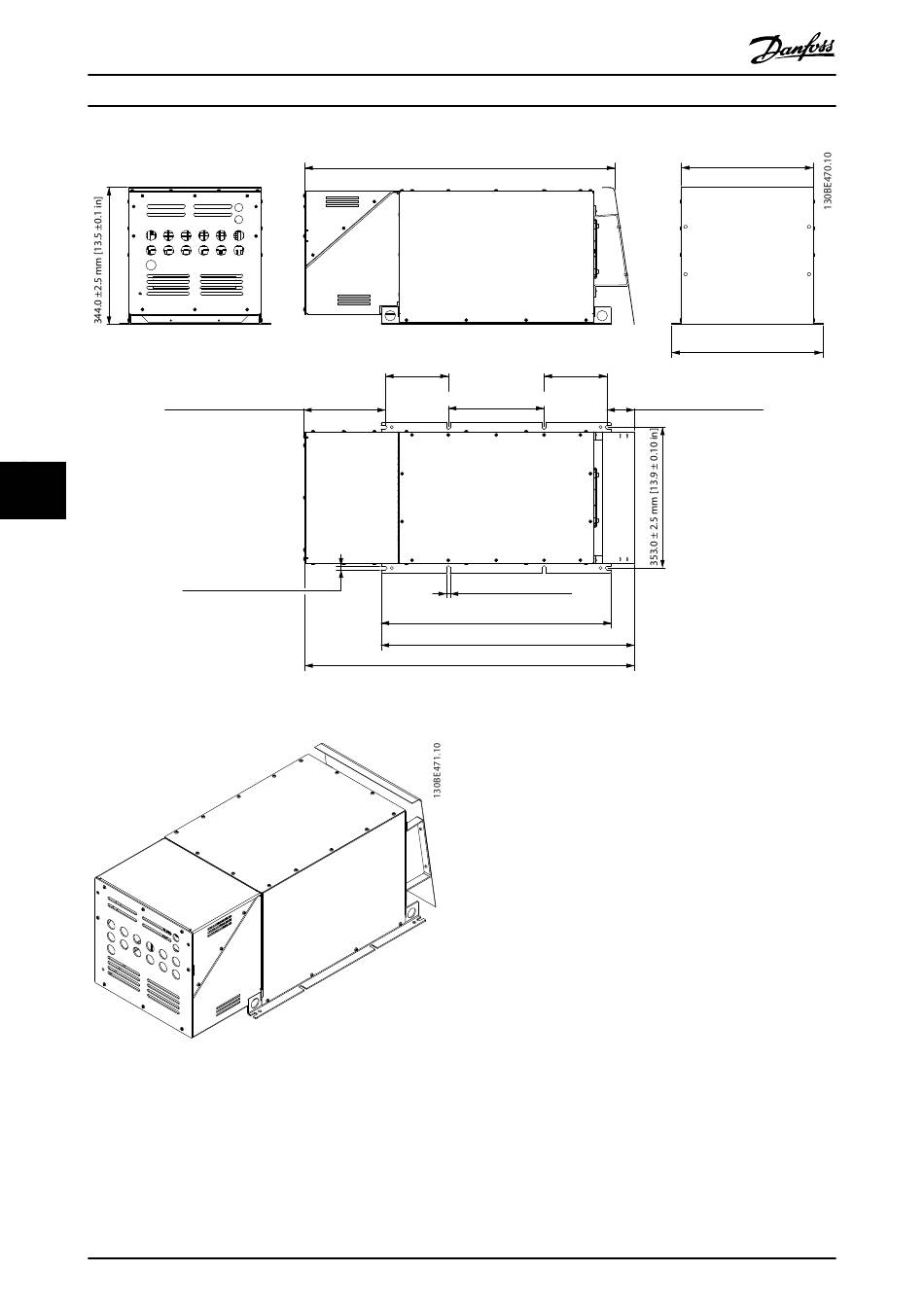

Abbildung 7.77 IP21 X4 Interner Lüfter 1
Abbildung 7.78 IP21 X4 Interner Lüfter 1, 3D-Ansicht
100
VLT
157.0 ±1 mm [6.2 ±0.04 in]
9.0 ±1 mm [0.4 ±0.04 in]
Danfoss A/S © 10/2016 Alle Rechte vorbehalten.
®
Advanced Harmonic Filter AHF 005/AHF 010
777.0 ±2.5 mm [30.6 ±0.1 in]
157.0 ±1 mm [6.2 ±0.04 in]
240.0 ±1 mm [9.4 ±0.04 in]
9.0 ±1.0 mm [0.4 ±0.04 in]
577.0 ±2.5 mm [22.7 ±0.1 in]
635.1 ±2.5 mm [25.0 ±0.1 in]
826.1 ±2.5 mm [32.5 ±0.1 in]
330.0 ±2.5 mm [13.0 ±0.1 in]
378.0 ±2.5 mm [14.9 ±0.1 in]
69.6 ±2.5 mm [2.7 ±0.1 in]
