Danfoss VLT AHF 010 Projektierungshandbuch Seite 84

Spezifikationen
F1 F2
7 7

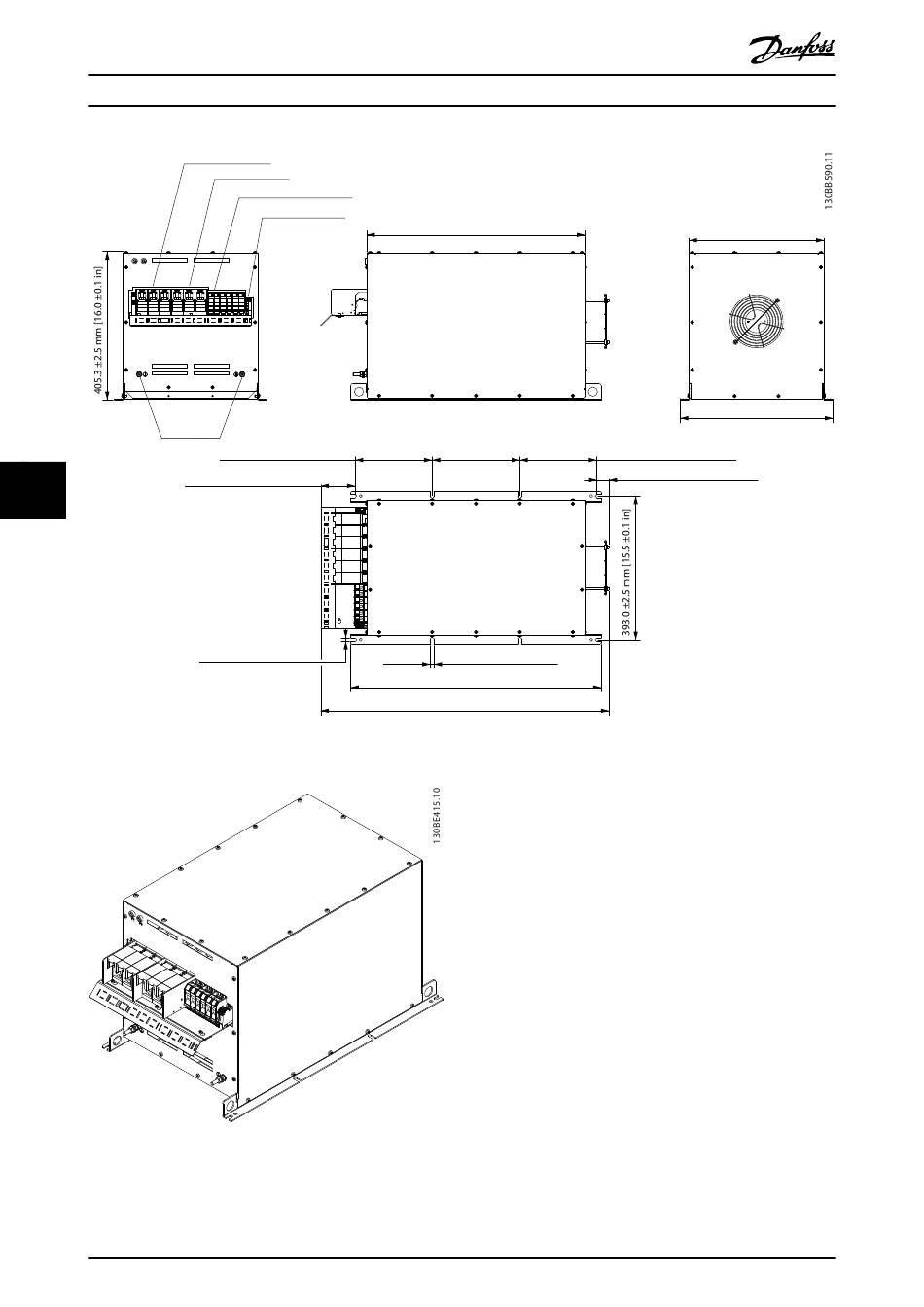

Abbildung 7.41 IP20 X6 Externer Lüfter 1
Abbildung 7.42 IP20 X6 Externer Lüfter 1, 3D-Ansicht
82
VLT
2
X1 Mains 50 mm
2
X2 Drive 50 mm
X3/X4 Capacitor disconnect 16 mm
A/B Temperature 2.5 mm
PE M8
210.5 ±1.0 mm [8.3 ±0.04 in]
94.3 ±2.5 mm [3.7 ±0.1 in]
9 ±1.0 mm [0.4 ±0.04 in]
Danfoss A/S © 10/2016 Alle Rechte vorbehalten.
®
Advanced Harmonic Filter AHF 005/AHF 010
2
2
597 ±2.5 mm [23.5 ± 0.1 in]
240.0 ±1.0 mm [9.4 ±0.04 in]
9 ±1.0 mm [0.4 ±0.04 in]
685.0 ±2.5 mm [27.0 ±0.1 in]
788.6 ±2.5 mm [31.0 ±0.1 in]
370.0 ±2.5 mm [14.6 ±0.1 in]
418.0 ±2.5 mm [16.5 ±0.1 in]
210.5 ±1.0 mm [8.3 ±0.04 in]
33.4 ±2.5 mm [1.3 ±0.1 in]
MG80C503
