Protect this device against electromagnetic interference,
ultraviolet rays and, when installed outdoors, the effects of
the climatic conditions.
7.2. recommandations for installing
the 8045 on the pipe
→
Choose an S020 fitting appropriate to the velocity of the fluid
inside the pipe.
→
Install the device on the pipe in such a way that the upstream
and downstream distances are respected according to the
design of the pipes, refer to standard EN ISO 5167-1 and Fig.
4 :
12
English
Type 8045
Installation and wiring
flow direction
50 x DN 5 x DN
With control valve
25 x DN 5 x DN
Pipe with 2 elbows at 90°
18 x DN 5 x DN
With pipe expansion

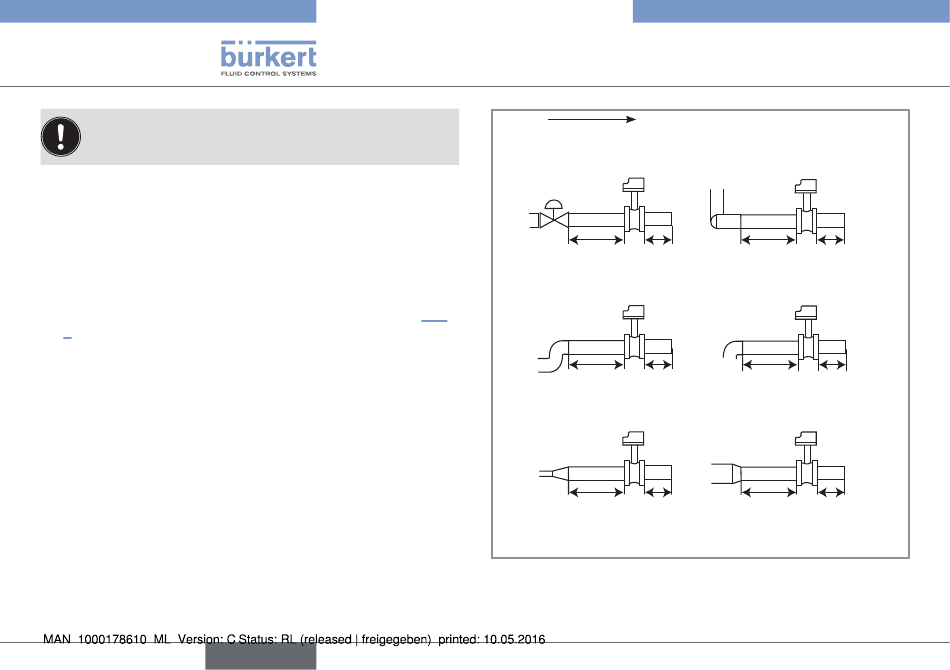

Fig. 4: Upstream and downstream distances depending on the
design of the pipes.
40 x DN 5 x DN
Pipe with 2 elbows at 90° in 3
dimensions
20 x DN 5 x DN
Pipe with 1 elbow at 90° or 1
T-piece
15 x DN 5 x DN
With pipe reduction
