INSTALLATION - OPERATING
GB
EQUIPMENT SUPPLY
The equipment already includes a power cable for AC supply. For connections to an AC supply see fig.2A.
Before powering up the battery charger check that the power supply voltage, described on the rating label, corresponds to
that supplied by the AC supply source. A 2 pole switch must be installed in the electrical circuit for the sole use of switching
the equipment ON and OFF.
The insulation between the contact points of the connections of the AC supply must be at least 3 mm.
The connections to the AC supply must be carried out according to local electrical codes.
WARNING: before connecting or disconnecting the cables from the electrical terminals of the battery charger, make
sure that the equipment is disconnected from the AC mains and the batteries.
WARNING: in cases where the power supply cable could be damaged, have this changed by a "Quick
In order to avoid accidents, the equipment must only be opened by authorised personnel.

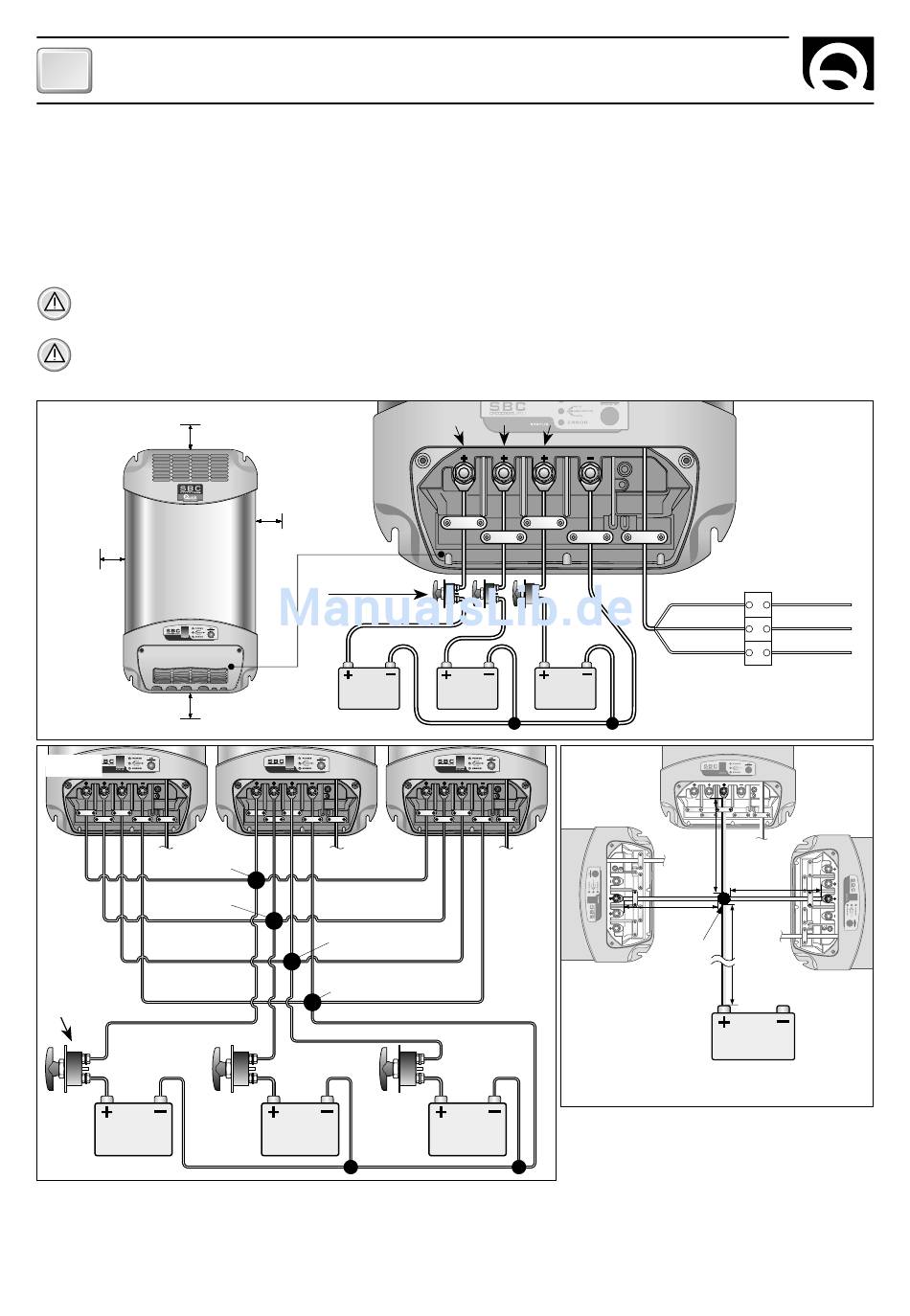

FIG.2A
5 cm
5 cm
5 cm
FIG.2B
BATTERY SWITCHES
BATTERY
N° 3
BATTERIES
To access the output terminals it is necessary to remove the cover by loosening the two screws which hold it on (see fig. 1
Part A). Before making the connections to the cables from the battery, loosen or remove the cable clamps by loosening the
screws which fix it to the base (fig.1 part B).
16
5 cm
STACCABATTERIE
BATTERY
N° 3
J
SB
J
SB
J
SA
J
SA
J
M
J
M
J
CN
J
CN
BATTERY
N° 2
SLAVE B
SLAVE A
MASTER
BATTERY
BATTERY
N° 2
N° 1
FIG.2C
LM1 = LM2 = LM3 = 2m Max
LB = 6m Max
BATTERY
N° 1
®
" service centre.
BLUE
NEUTRAL
YELLOW
EARTH
GREEN
LIVE
BROWN
L
M2
L
M3
L
M1
J
M
L
B
BATTERY
SBC ADVANCED PLUS HI-POWER - REV004A
