Set alignment for the front wheels:
For the front axle, toe-in and toe-out can be
set by turning the steering lever (A).
Remove one of the two screws of the steering
lever and turn it.
Our advice:
Pushing a small hexagon spanner through the
screw hole of the steering lever may help with
turning.
Turn both steering levers evenly (left and right front wheel). Otherwise, you need to adjust the trim of the
transmitter or even change the steering servo control (e.g. adjust servo rod).
Set alignment for the rear wheels:
The alignment for the rear wheels is set by the
so-called toe-in-block.
This is a plastics part attached to the rear dif-
ferential (see arrow in figure 6).
The two metal axles holding the lower trans-
verse links are attached to the outer holes of
the toe-in block.
A toe-in block with a different distance between
these two holes can be used to adjust the toe-
in.
A plastics part with additional toe-in blocks may be included with the vehi-
cle (see figure 7, similar).
The alignment of the rear axle of your model vehicle has little
effect on driving behaviour.
Replacement of the toe-in block is therefore only relevant for
professional drivers.
46
A

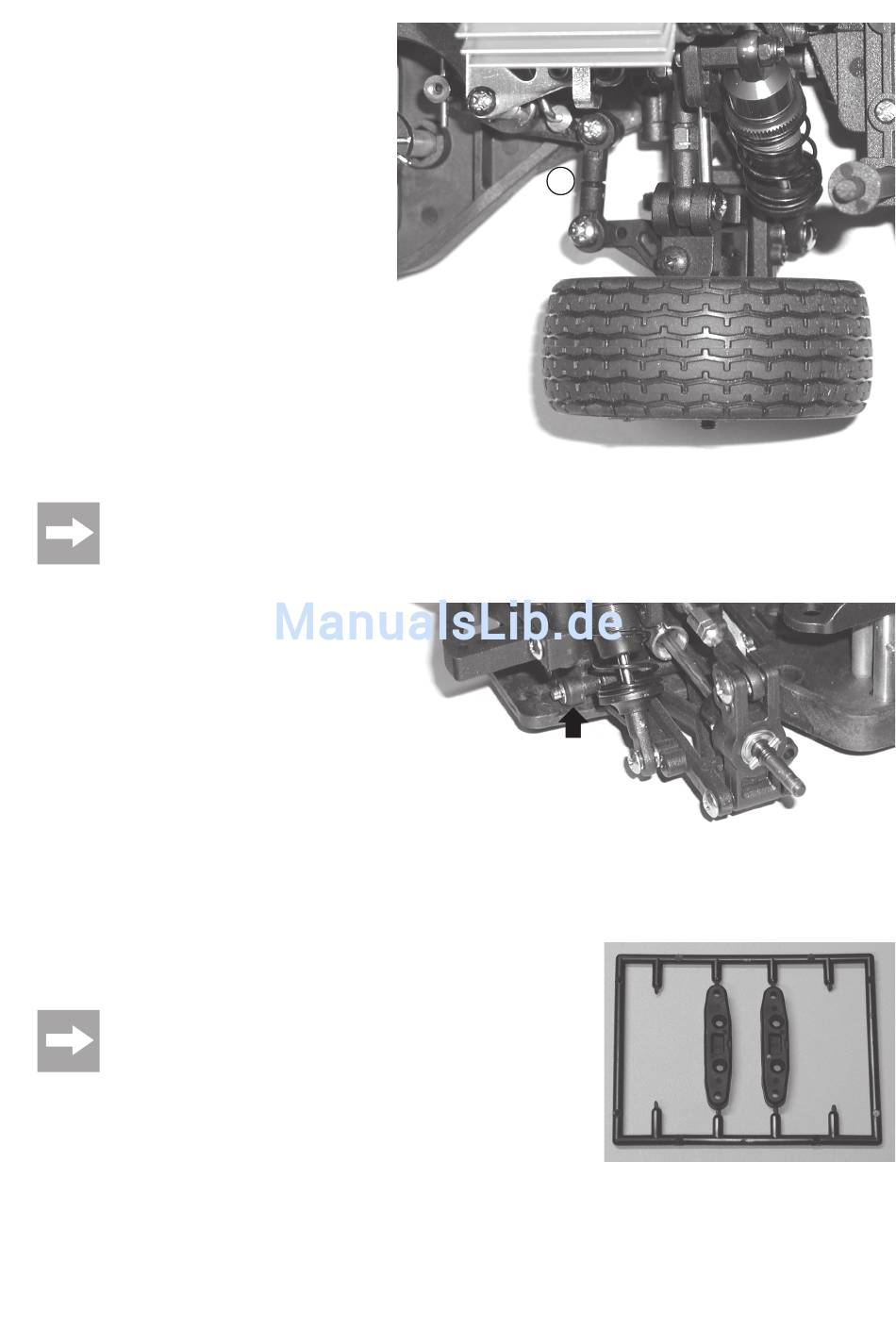

Figure 5
