The printed value (e.g. „20C") does not generally refer to the constant current, but to the maximum
current that the battery is capable of producing in the short-term. The constant current therefore should
not be higher than one half of the given value.
• No cell of a LiPo battery may be discharged below 3.0 V (LiFe = 2.0 V, LiIon = 2.5 V), as this will
destroy the battery. If the model does not provide protection against total discharge or possess a visual
display indicating a low battery, remember to switch off the model in time.
7. CONTROL ELEMENTS AND CONNECTIONS
1 Battery charger
2 Connection socket for operating voltage 11 - 18 V/DC
3 Balancer connection
4 Charging cable connection sockets
5 USB-connection socket
6 Temperature sensor connection socket
7 Cooling air inlet
8 Display
9 Brushless motor sensor input
10 Servo/speed controller connection socket
11 USB charger output (5 V/DC, max. 1 A)
12 Unfoldable bases
13 Cooling air fans

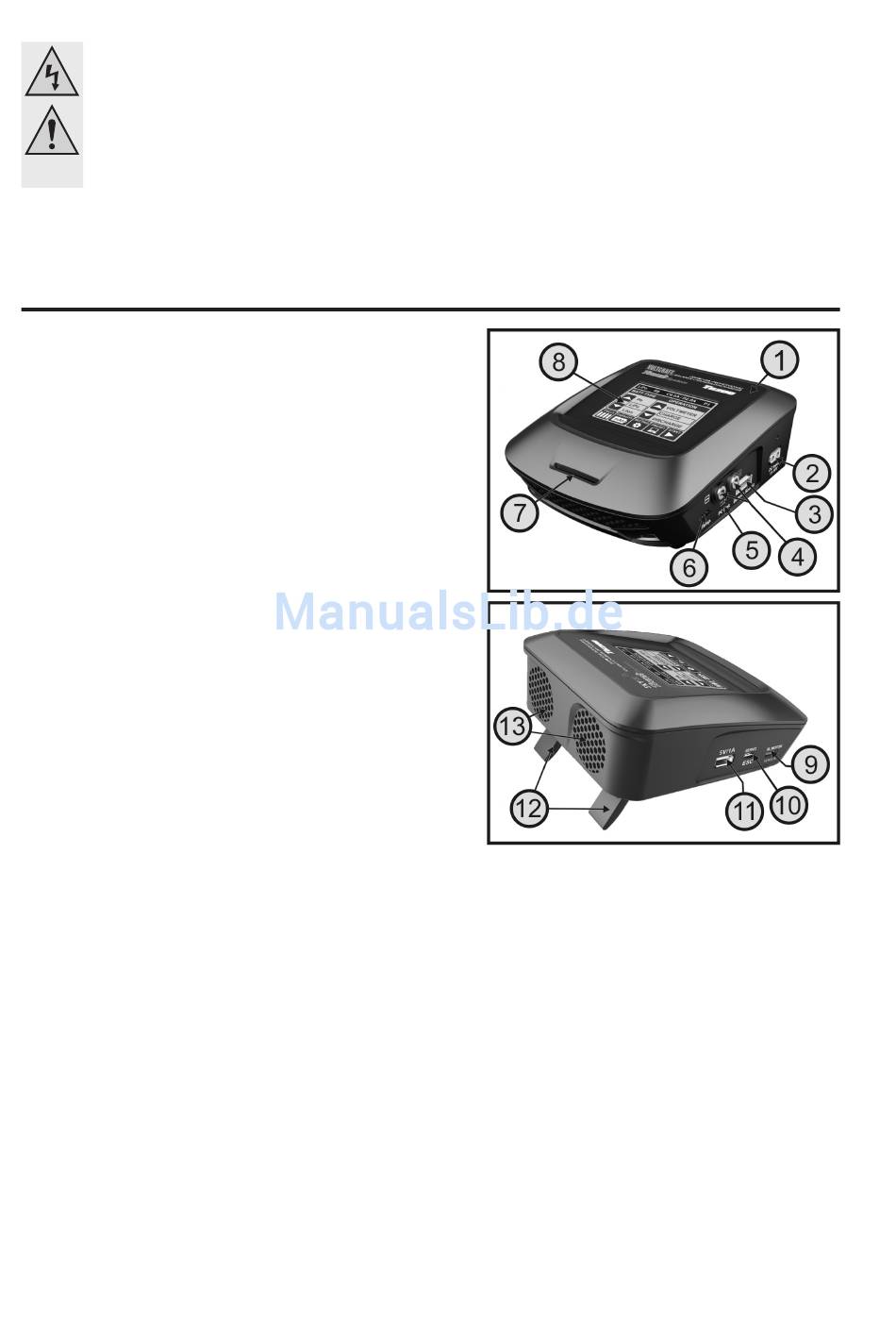

Figure 2
