CANBus
QuantumX / SomatXR and CCP / XCP-on-CAN

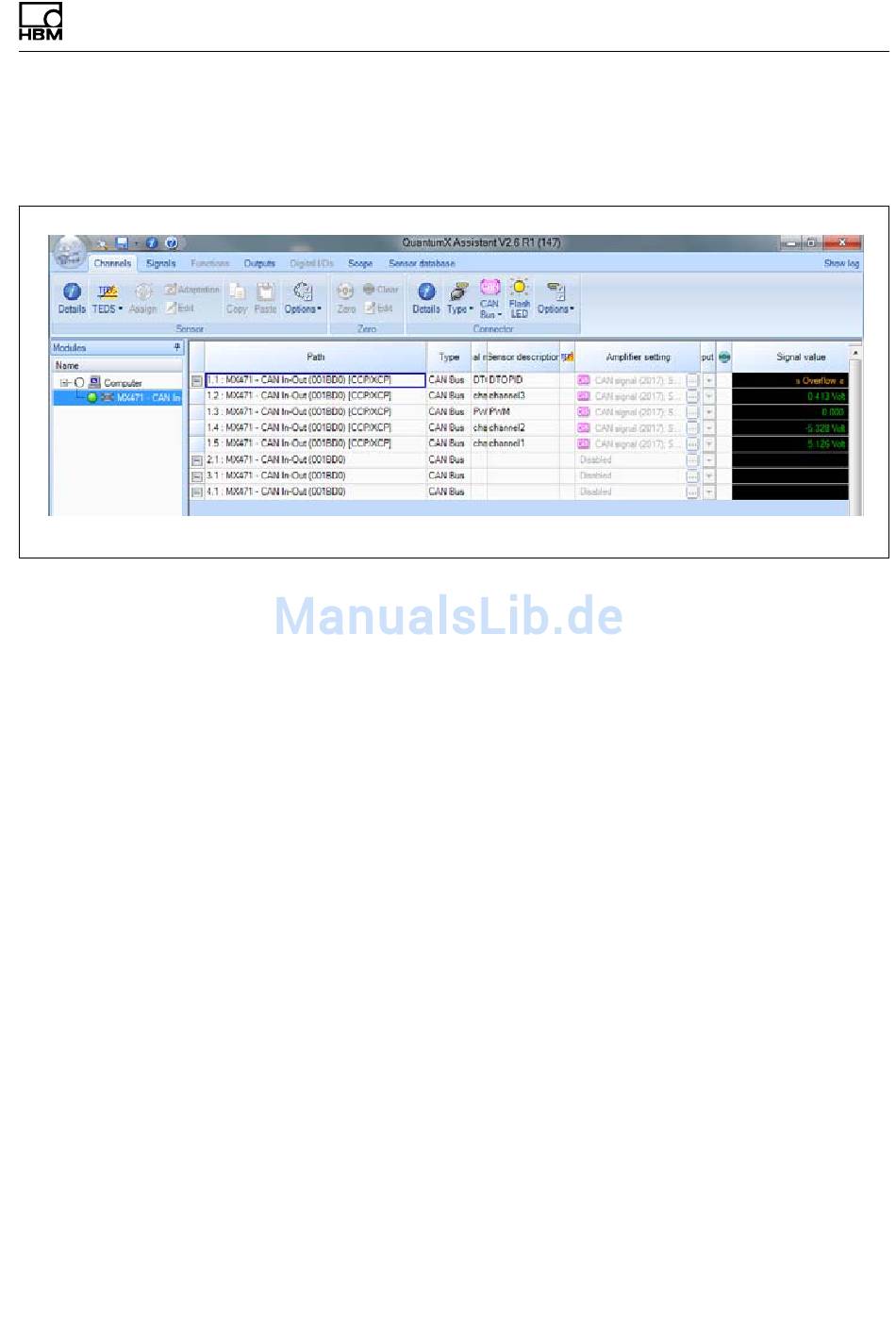

Result: All configured signals are now visible on
CAN Bus 1
Step 5 – You can now open Catman and start mea­
surement
Configuration of a Gateway Mode
The MX471B can also be used as a gateway transferring
XCP-on-CAN or CCP signals to CAN. In this mode XCP
or CCP Messages are received on one port of the
MX471B and are sent out as standard CAN messages
on another port.
Configuration steps in MX Assistant
1. Switch to Outputs tab
2. Uncheck checkbox "Show only isochronous"
3. Drag and drop signals from Sources section to a CAN
Output.
