CANBus
QuantumX / SomatXR and CCP / XCP-on-CAN
S If ECU is locked by "Seed & Key" mechanism, corre­
sponding *.skb file has to be available
S CANape version 10.0 or higher installed (might also
work with previous versions, but not tested)
S MX471B with latest firmware available
S Data Recorder CX22B-W or PC with latest MX
Assistant tool available
Hardware Setup
S Connect one of the MX471B ports to the CAN net­
work
S Connect MX471B Ethernet port to a Laptop

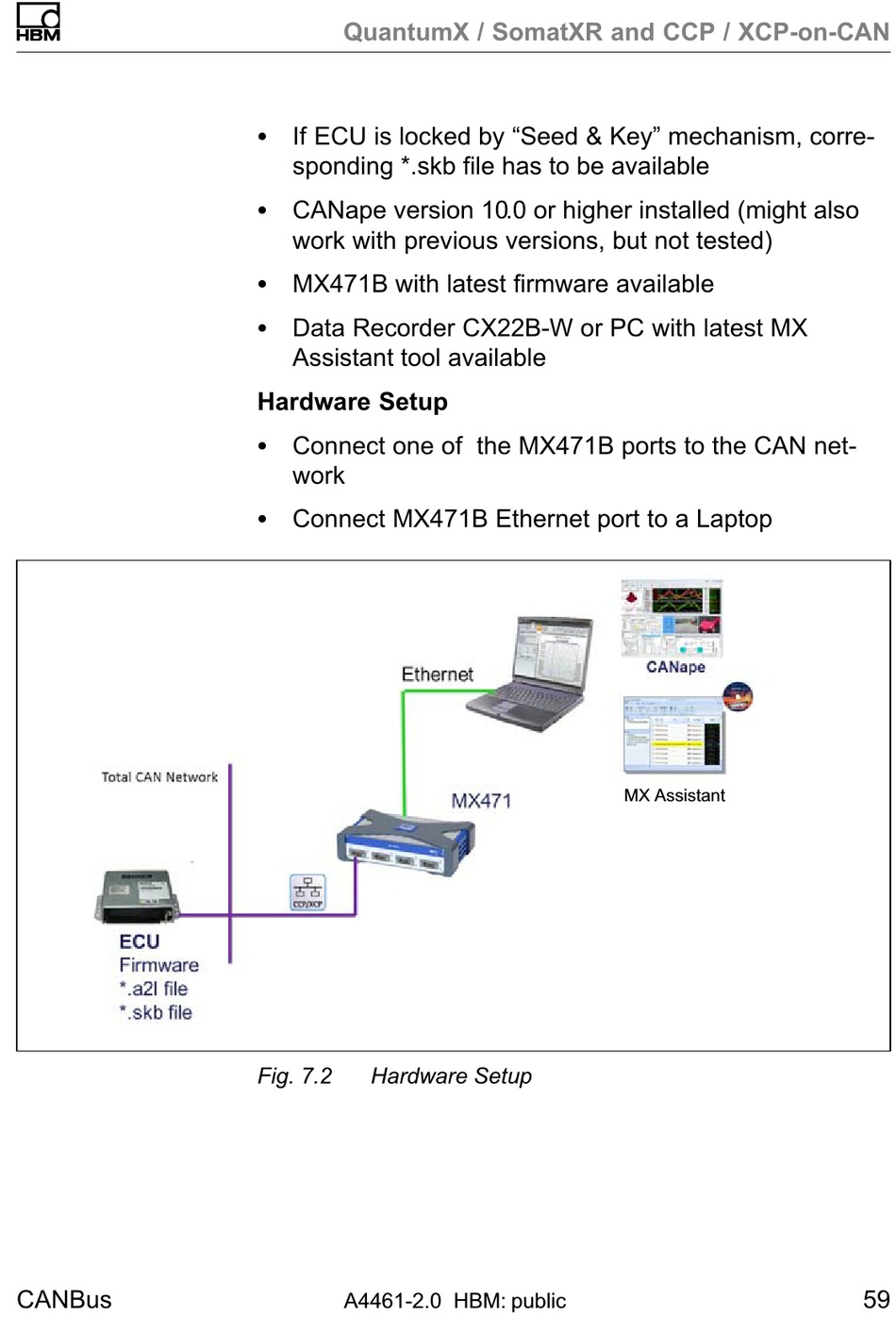

Fig. 7.2 Hardware Setup
A4461-2.0 HBM: public
MX Assistant
59
