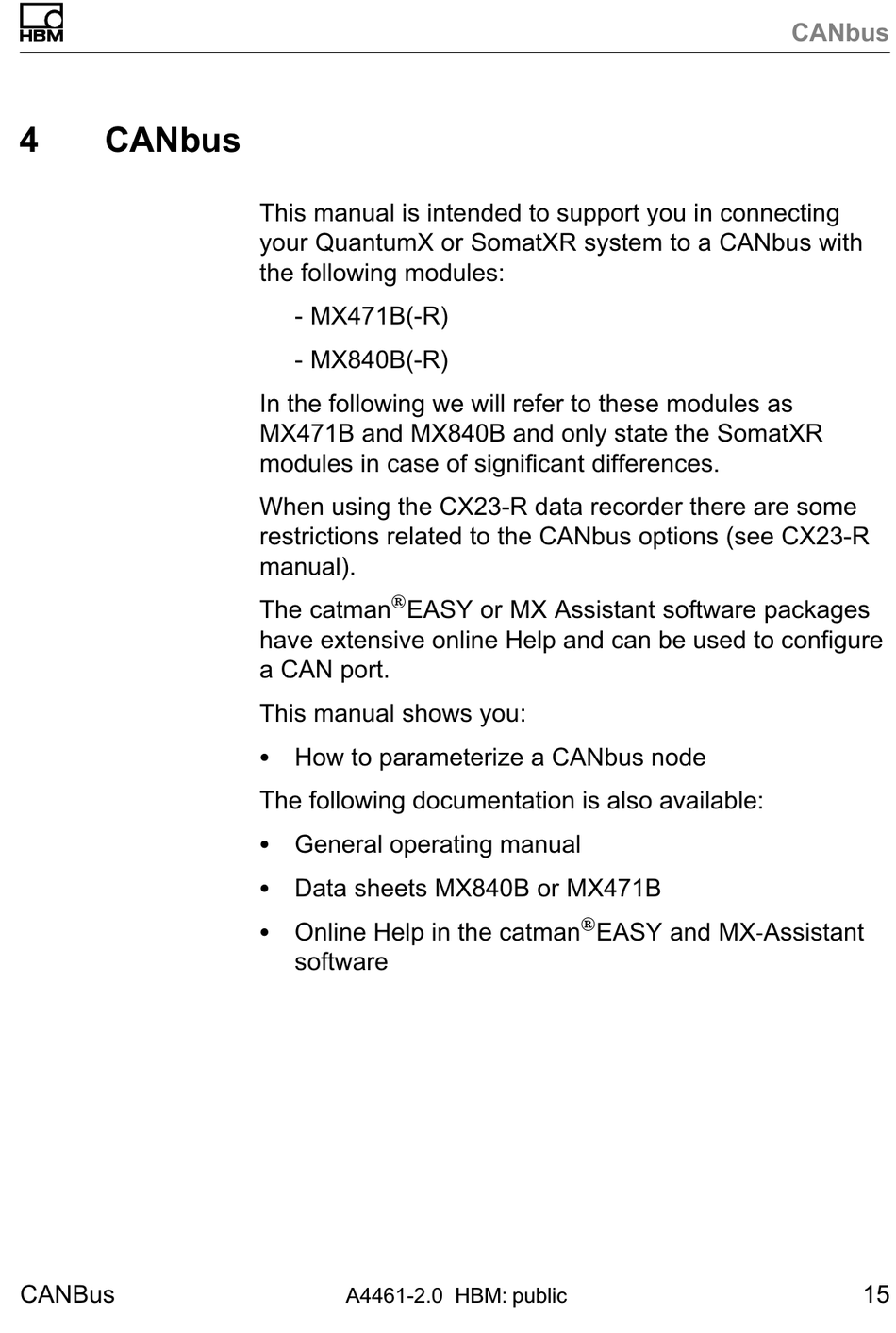

CANbus

CANBus
This manual is intended to support you in connecting
your QuantumX or SomatXR system to a CANbus with
the following modules:
- MX471B(-R)
- MX840B(-R)
In the following we will refer to these modules as
MX471B and MX840B and only state the SomatXR
modules in case of significant differences.
When using the CX23-R data recorder there are some
restrictions related to the CANbus options (see CX23-R
manual).

The catman EASY or MX Assistant software packages
have extensive online Help and can be used to configure
a CAN port.
This manual shows you:
S How to parameterize a CANbus node
The following documentation is also available:
S General operating manual
S Data sheets MX840B or MX471B
S Online Help in the catman
software
A4461-2.0 HBM: public

EASY and MX-Assistant
CANbus
