Notice
Ensure correct termination with termination resistors is
made, as shown in Fig. 5.1. The MX840B does not have
any termination. The MX471B and the SomatXR
MX840B-R have an internal termination that can be activ­
ated via software.
A4461-2.0 HBM: public

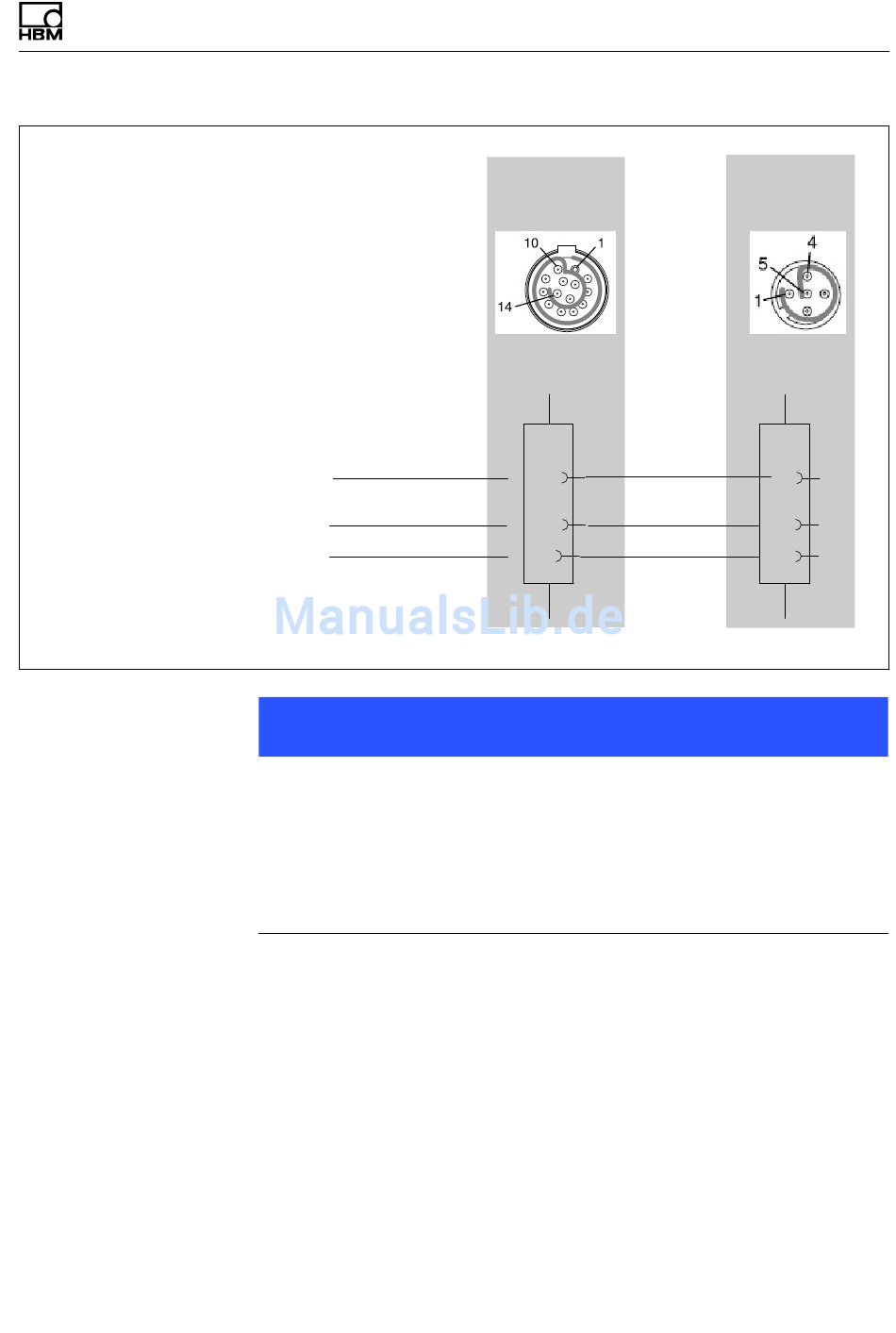

QuantumX / SomatXR and CAN
MX840B-R
Channel 1
ODU 14‐pin
Grey
11
Green
12
13
MX471B-R
M12 5‐pin
White
4
Blue
5
Black
3
