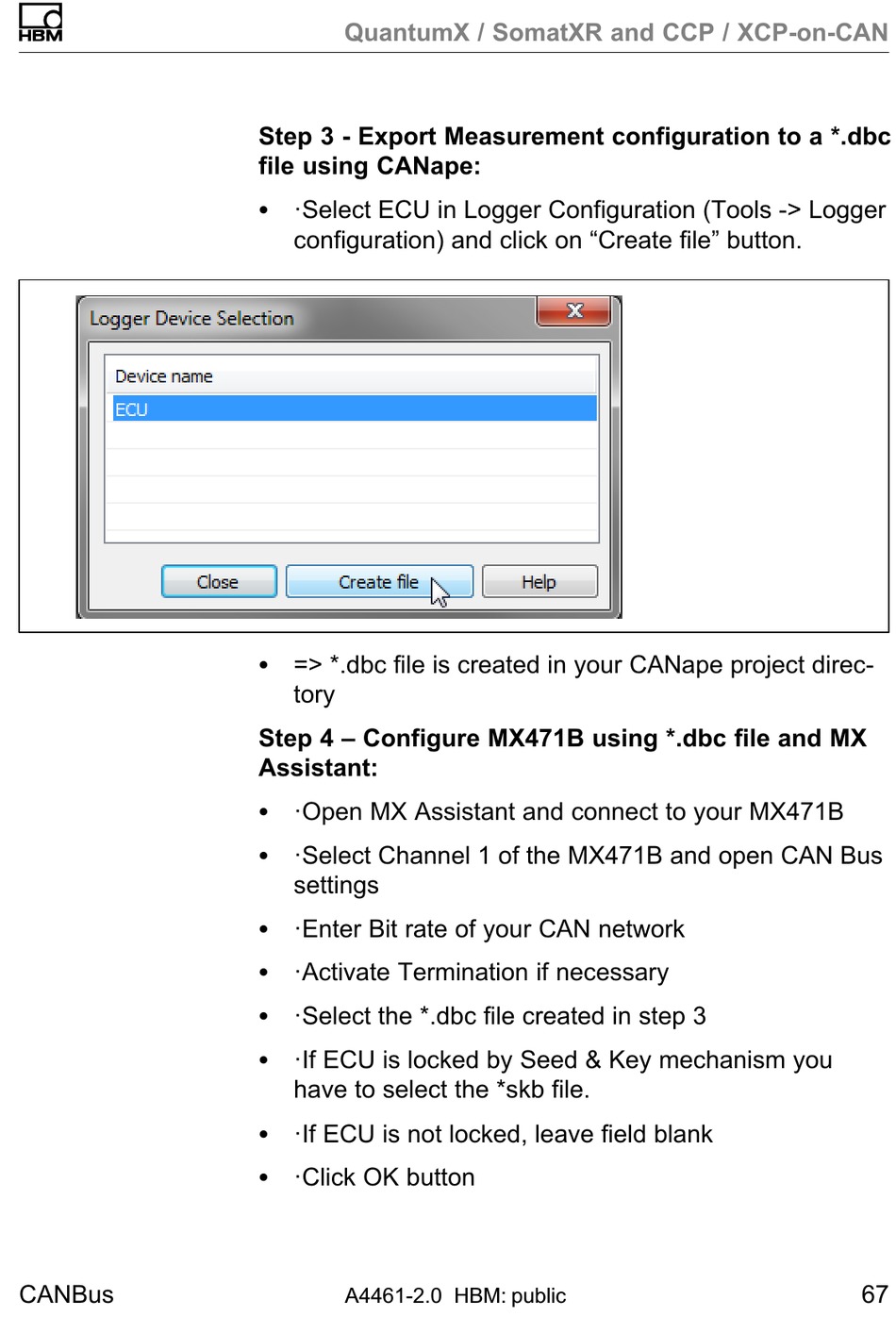

QuantumX / SomatXR and CCP / XCP-on-CAN
Step 3 - Export Measurement configuration to a *.dbc
file using CANape:
S ·Select ECU in Logger Configuration (Tools -> Logger
configuration) and click on "Create file" button.
S => *.dbc file is created in your CANape project direc­
tory
Step 4 – Configure MX471B using *.dbc file and MX
Assistant:
S ·Open MX Assistant and connect to your MX471B
S ·Select Channel 1 of the MX471B and open CAN Bus
settings
S ·Enter Bit rate of your CAN network
S ·Activate Termination if necessary
S ·Select the *.dbc file created in step 3
S ·If ECU is locked by Seed & Key mechanism you
have to select the *skb file.
S ·If ECU is not locked, leave field blank
S ·Click OK button
