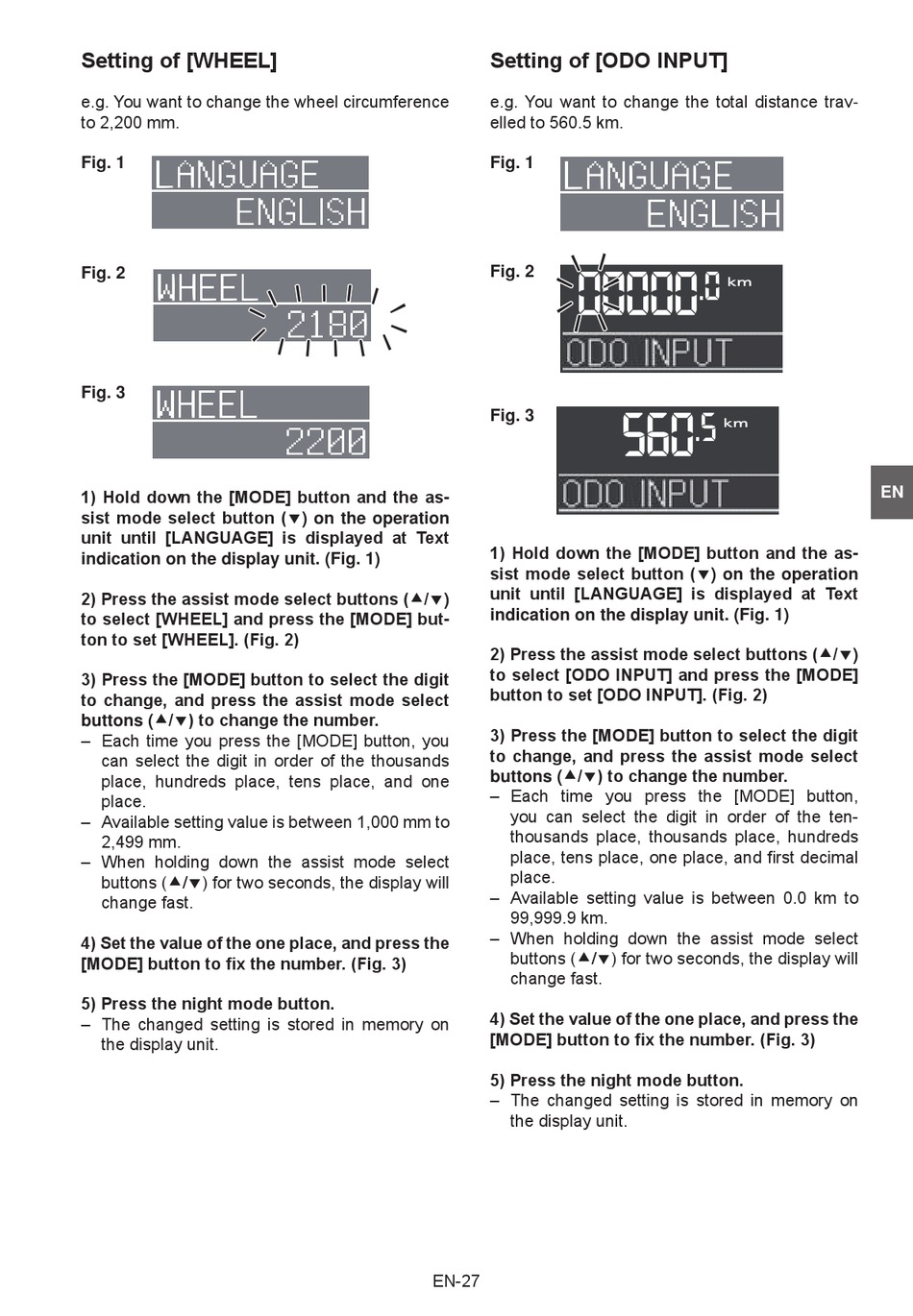

Setting of [WHEEL]
e.g. You want to change the wheel circumference
to 2,200 mm.
Fig. 1
Fig. 2
Fig. 3
1) Hold down the [MODE] button and the as-
sist mode select button () on the operation
unit until [LANGUAGE] is displayed at Text
indication on the display unit. (Fig. 1)
2) Press the assist mode select buttons (/)
to select [WHEEL] and press the [MODE] but-
ton to set [WHEEL]. (Fig. 2)
3) Press the [MODE] button to select the digit
to change, and press the assist mode select
buttons (/) to change the number.
– Each time you press the [MODE] button, you
can select the digit in order of the thousands
place, hundreds place, tens place, and one
place.
– Available setting value is between 1,000 mm to
2,499 mm.
– When holding down the assist mode select
buttons (/) for two seconds, the display will
change fast.
4) Set the value of the one place, and press the
[MODE] button to fix the number. (Fig. 3)
5) Press the night mode button.
– The changed setting is stored in memory on
the display unit.
Setting of [ODO INPUT]
e.g. You want to change the total distance trav-
elled to 560.5 km.
Fig. 1
Fig. 2
Fig. 3
1) Hold down the [MODE] button and the as-
sist mode select button () on the operation
unit until [LANGUAGE] is displayed at Text
indication on the display unit. (Fig. 1)
2) Press the assist mode select buttons (/)
to select [ODO INPUT] and press the [MODE]
button to set [ODO INPUT]. (Fig. 2)
3) Press the [MODE] button to select the digit
to change, and press the assist mode select
buttons (/) to change the number.
– Each time you press the [MODE] button,
you can select the digit in order of the ten-
thousands place, thousands place, hundreds
place, tens place, one place, and first decimal
place.
– Available setting value is between 0.0 km to
99,999.9 km.
– When holding down the assist mode select
buttons (/) for two seconds, the display will
change fast.
4) Set the value of the one place, and press the
[MODE] button to fix the number. (Fig. 3)
5) Press the night mode button.
– The changed setting is stored in memory on
the display unit.
