Flyer C SERIE Originalbetriebsanleitung Seite 402

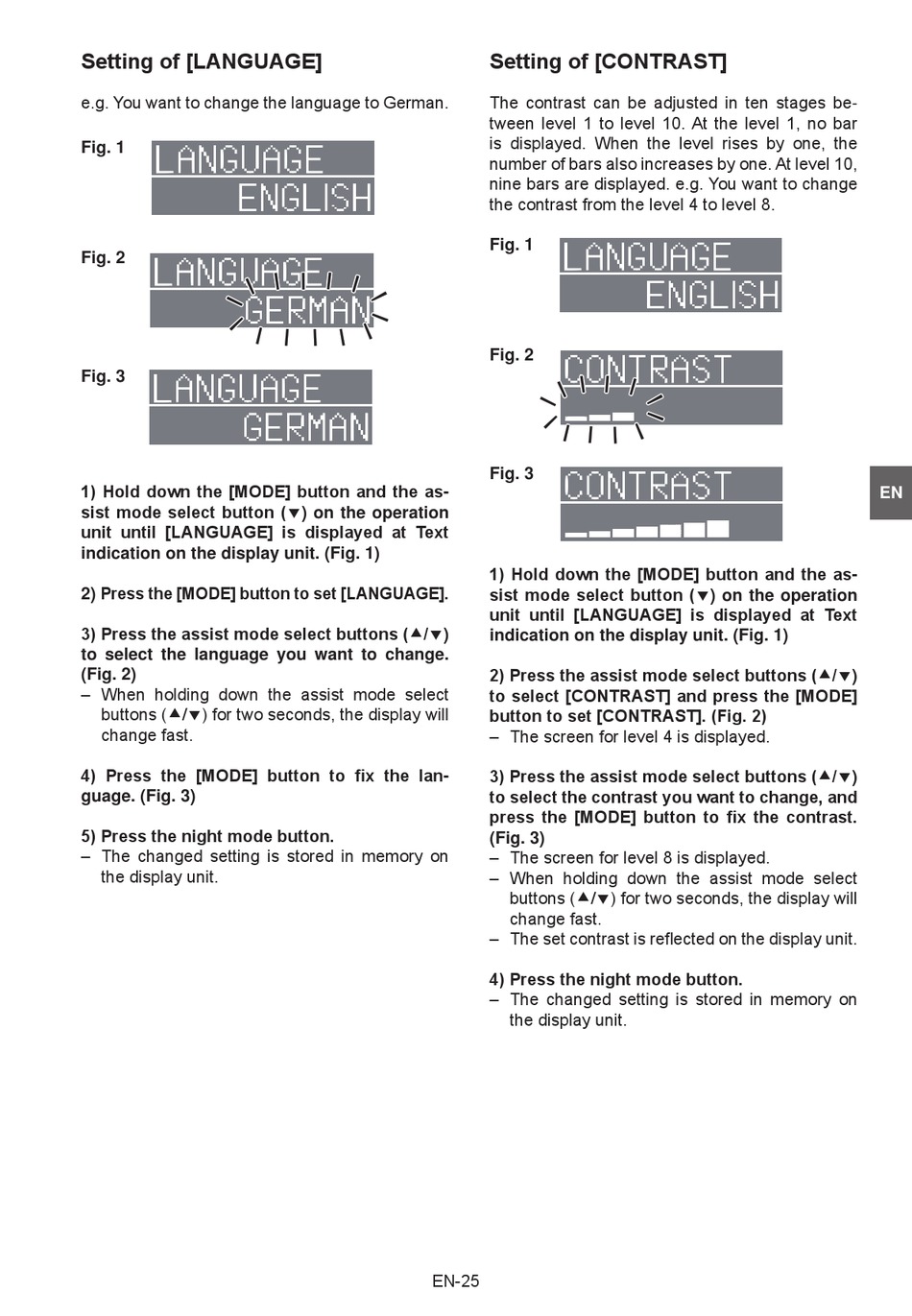

Setting of [LANGUAGE]
e.g. You want to change the language to German.
Fig. 1
Fig. 2
Fig. 3
1) Hold down the [MODE] button and the as-
sist mode select button () on the operation
unit until [LANGUAGE] is displayed at Text
indication on the display unit. (Fig. 1)
2) Press the [MODE] button to set [LANGUAGE].
3) Press the assist mode select buttons (/)
to select the language you want to change.
(Fig. 2)
– When holding down the assist mode select
buttons (/) for two seconds, the display will
change fast.
4) Press the [MODE] button to fix the lan-
guage. (Fig. 3)
5) Press the night mode button.
– The changed setting is stored in memory on
the display unit.
Setting of [CONTRAST]
The contrast can be adjusted in ten stages be-
tween level 1 to level 10. At the level 1, no bar
is displayed. When the level rises by one, the
number of bars also increases by one. At level 10,
nine bars are displayed. e.g. You want to change
the contrast from the level 4 to level 8.
Fig. 1
Fig. 2
Fig. 3
1) Hold down the [MODE] button and the as-
sist mode select button () on the operation
unit until [LANGUAGE] is displayed at Text
indication on the display unit. (Fig. 1)
2) Press the assist mode select buttons (/)
to select [CONTRAST] and press the [MODE]
button to set [CONTRAST]. (Fig. 2)
– The screen for level 4 is displayed.
3) Press the assist mode select buttons (/)
to select the contrast you want to change, and
press the [MODE] button to fix the contrast.
(Fig. 3)
– The screen for level 8 is displayed.
– When holding down the assist mode select
buttons (/) for two seconds, the display will
change fast.
– The set contrast is reflected on the display unit.
4) Press the night mode button.
– The changed setting is stored in memory on
the display unit.
EN-25
EN
