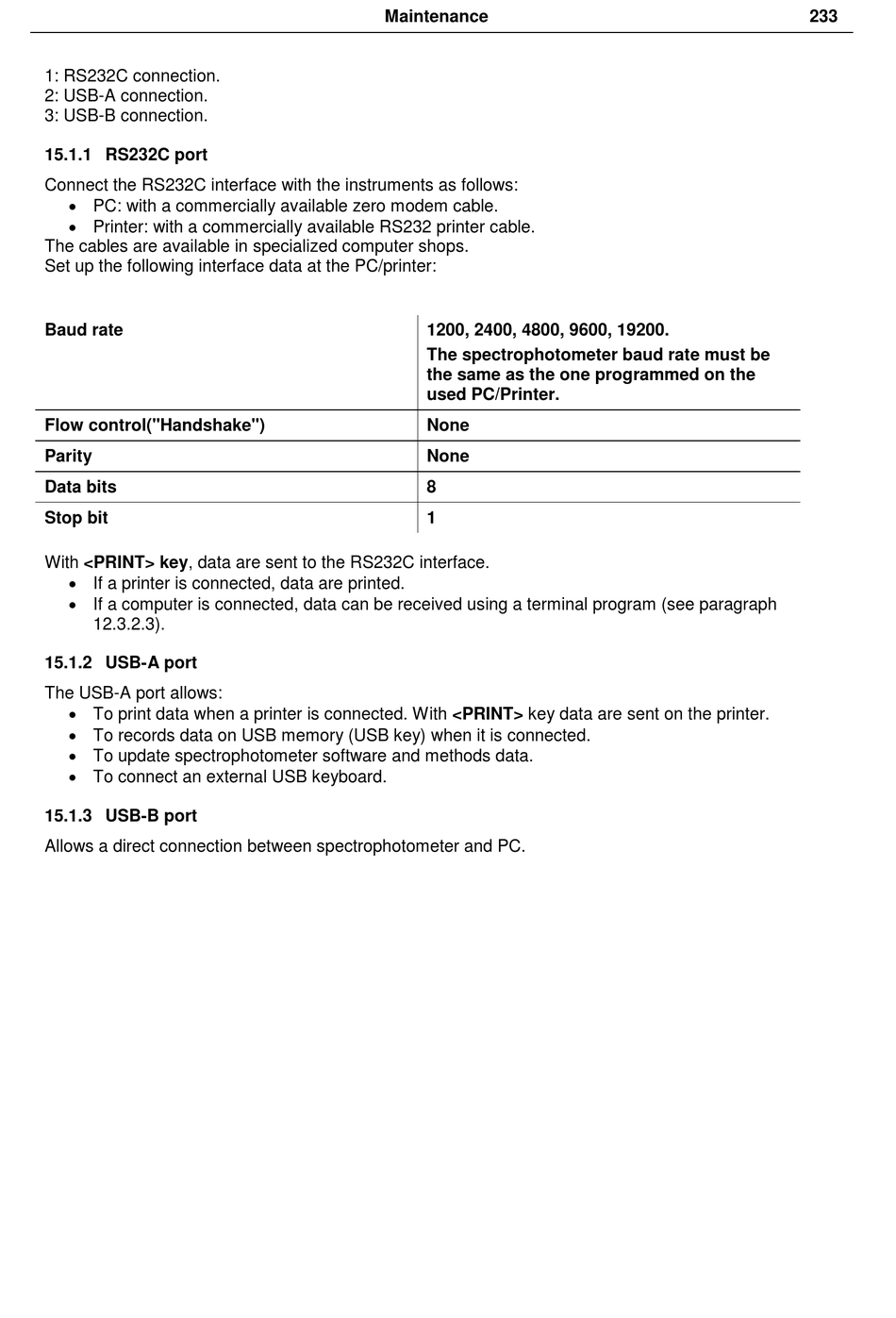

1: RS232C connection.
2: USB-A connection.
3: USB-B connection.
15.1.1 RS232C port
Connect the RS232C interface with the instruments as follows:
 PC: with a commercially available zero modem cable.
 Printer: with a commercially available RS232 printer cable.
The cables are available in specialized computer shops.
Set up the following interface data at the PC/printer:
Baud rate
Flow control("Handshake")
Parity
Data bits
Stop bit
With <PRINT> key, data are sent to the RS232C interface.
 If a printer is connected, data are printed.
 If a computer is connected, data can be received using a terminal program (see paragraph
12.3.2.3).
15.1.2 USB-A port
The USB-A port allows:
 To print data when a printer is connected. With <PRINT> key data are sent on the printer.
 To records data on USB memory (USB key) when it is connected.
 To update spectrophotometer software and methods data.
 To connect an external USB keyboard.
15.1.3 USB-B port
Allows a direct connection between spectrophotometer and PC.
Maintenance
1200, 2400, 4800, 9600, 19200.
The spectrophotometer baud rate must be
the same as the one programmed on the
used PC/Printer.
None
None
8
1
