5 Start up

5.1 Packaging

SI
The UviLine spectrophotometers are supplied with:
 Power pack connection cable incl. adapters (international use).
 Buffer batteries 4 x AA manganese alkaline.
 User's manual / operating instructions.
 10 mm cell
Packing: This photometer is sent out in a protective transport packing. We recommend: Keep the packing
material. The original packing protects the photometer against damage if it has to be transported.

5.2 First start up

Perform the following activities:
 Insert the buffer batteries (see section 6.2.1)
 Connect the power supply (see section 6.2.2)
 Switch on the photometer (see section 6.2.3)
 Set the language (see section 6.2.4)
 Set the date and time (see section 6.2.5)
5.2.1 Buffer batteries installation
5. Turn the photometer upside down and place it on a soft surface.
6. Open the lid of the battery compartment (1).
7. Insert the four batteries in the battery compartment. Make sure that the poles of the batteries are
in the correct position.
The ± signs on the batteries must correspond to the ± signs in the battery compartment.
8. Close the lid of the battery compartment.
Batteries time life
The power consumption of the clock is very low. The lifetime of high quality batteries is at least 5 years.

5.2.2 Connection of power supply

The power is supplied via the enclosed plug-in power pack. The power pack supplies the photometer with
low voltage (12 VDC).

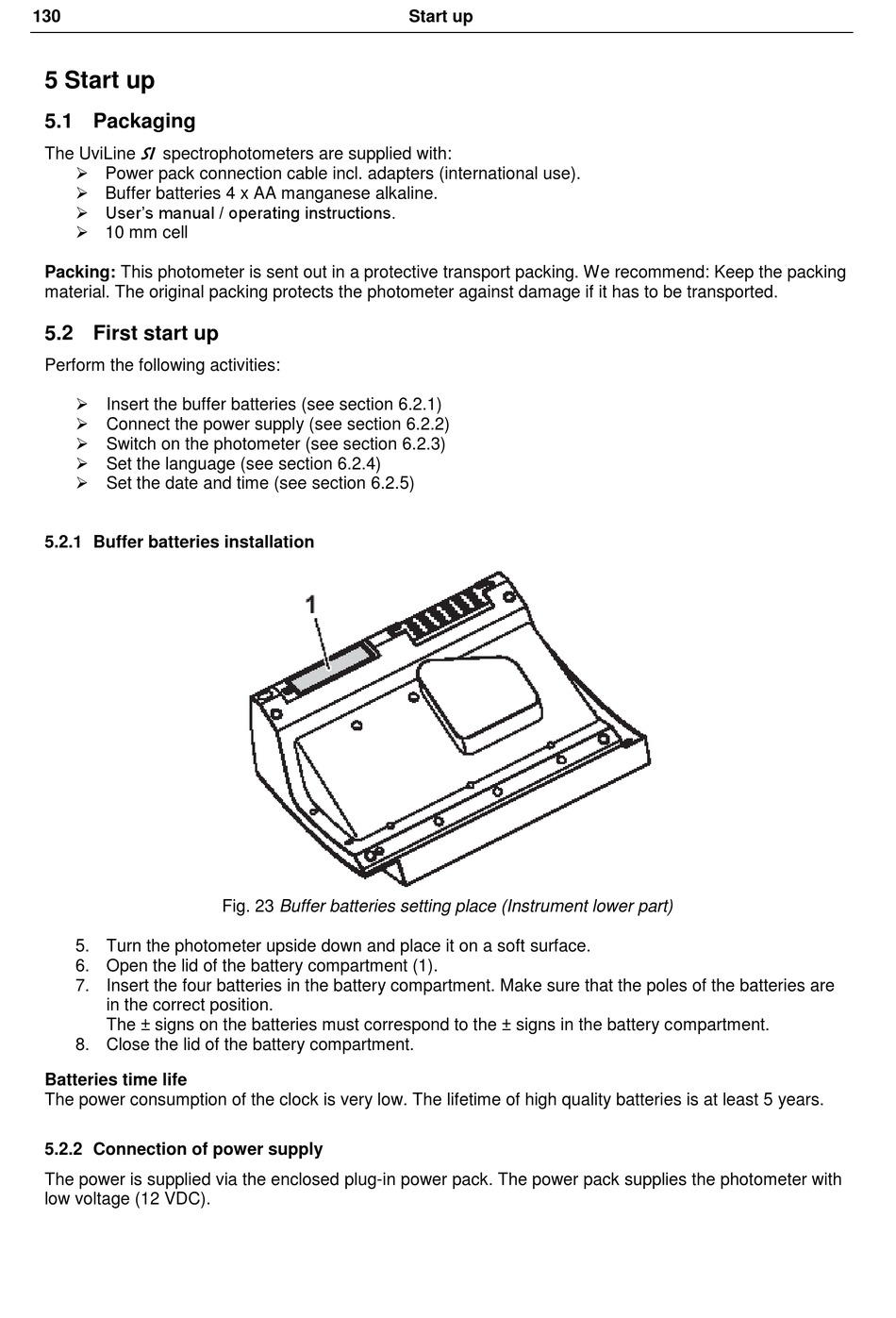

Fig. 23 Buffer batteries setting place (Instrument lower part)
