10.8 Kinetics treatment

10.8.1 Printing kinetic curve
- Press <PRINT> key to output the kinetic curve to a connected printer as a graphic.

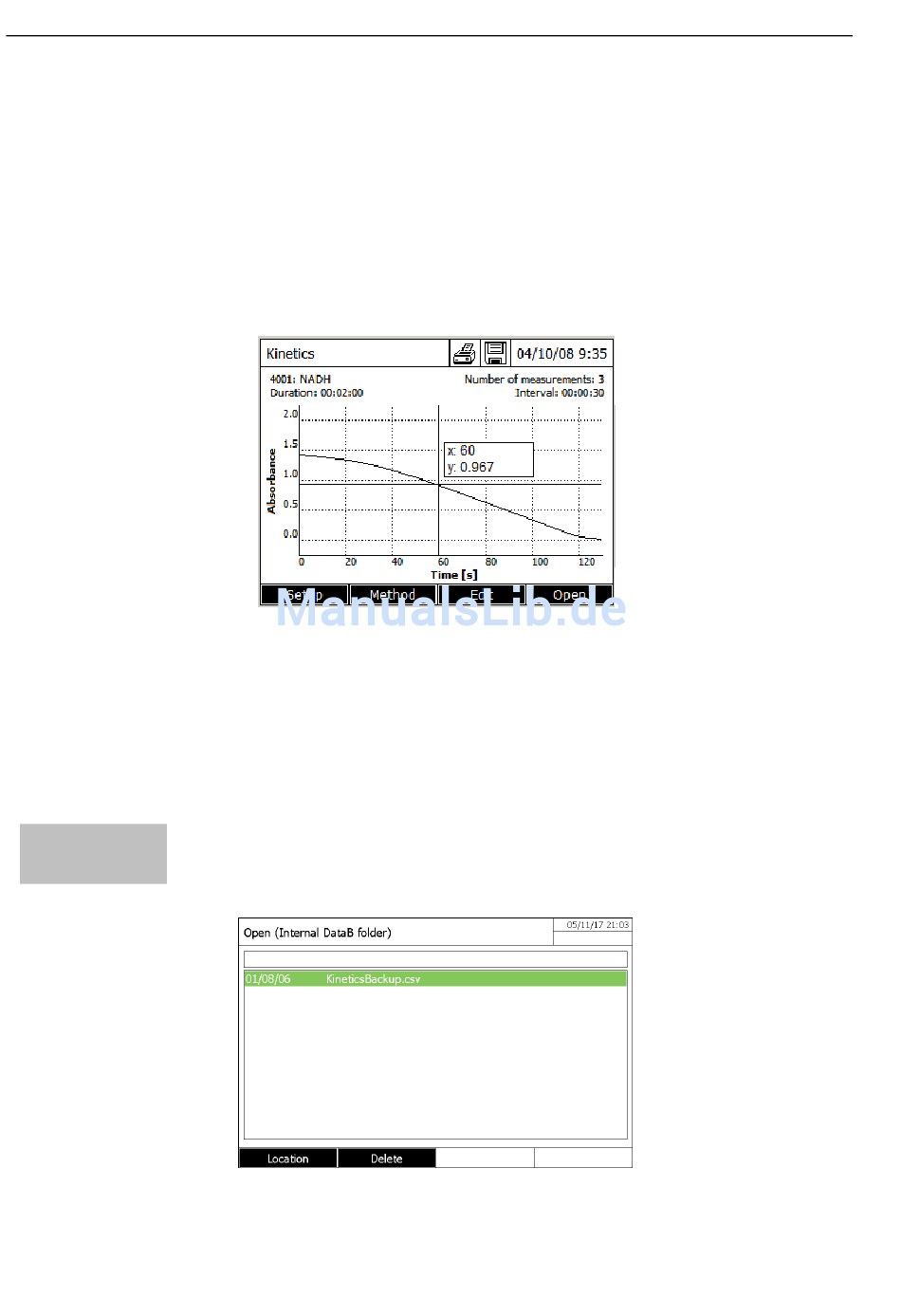

10.8.2 Cursor
The cursor consists of a horizontal and vertical line that crosses each other on a point of the curve.
A box names the x and y values of the point of the curve.
Move the cursor along the x axis (time axis) with « ◄ » and « ► » keys.
By this way, it is possible to trace and evaluate the curve point by point.
These points are corresponding to the measurement interval.
10.8.3 Saving kinetic curve
- Press <STORE> key to save the kinetic curve.
As the memory location, it is possible to select the spectrophotometer memory (Internal DataB folder)
or a connected USB memory at the USB-A connection (USB memory).
If the operator forgot to save the curve, this one is nevertheless kept in memory under the name of
"date kineticsBackup.csv".
10.8.4 Loading a stored kinetic curve
<HOME>
Kinetics
– [Open]
- Press F4 key [Open].
The list with the stored kinetic records (Internal DataB folder) is displayed.
- Press F1 key [Location] to select another memory location of the kinetic record (USB memory) for a USB
medium at the USB-A connection).
- Select the kinetic curve and confirm.
The original view of the curve is displayed.
Kinetics mode 201
