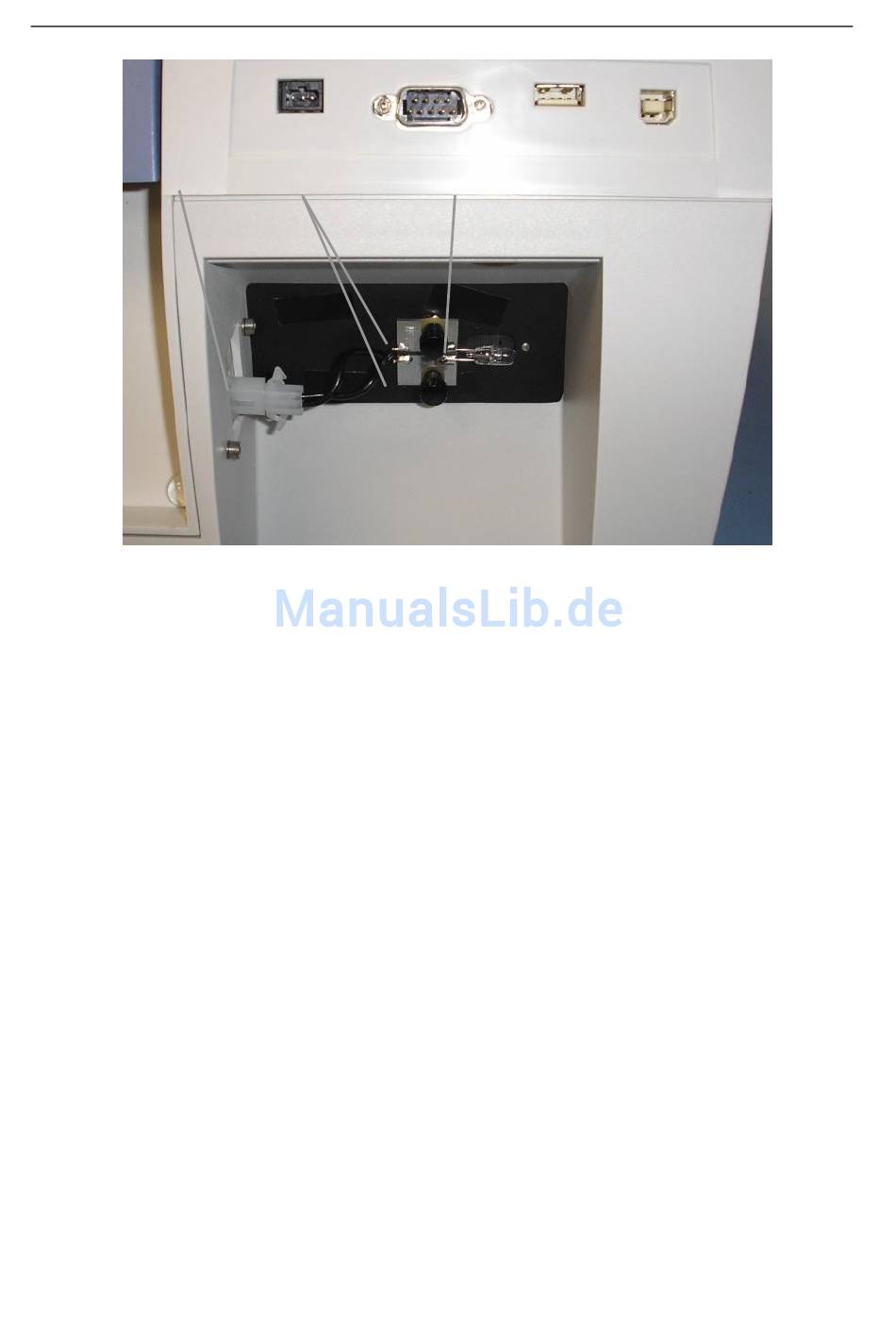

Fig. 26 Halogen lamp changing
3 Disconnect the electrical plug connection (3). Disconnecting it might take a lot of effort.
4 Unscrew the two knurled-head screws (4) and remove the defective lamp module (5).
5 Fix the new lamp module with the knurled-head screws. When doing so, the metal-plated side of the
PCB must point outward, toward the knurled-head screws.
6 Reconnect the power supply cable.
7 Reinstall the protection lamp cover.
8 Reset the service hour counter for the lamp module (see paragraph 14.5).
