9.7.3 Zoom
- Press on F3 key [Zoom].
The zoom window appears.
– Press F1 key [Original], at any time, to come back to the original view of the spectrum.
The bottom left corner of the zoom window is marked by a small black square.

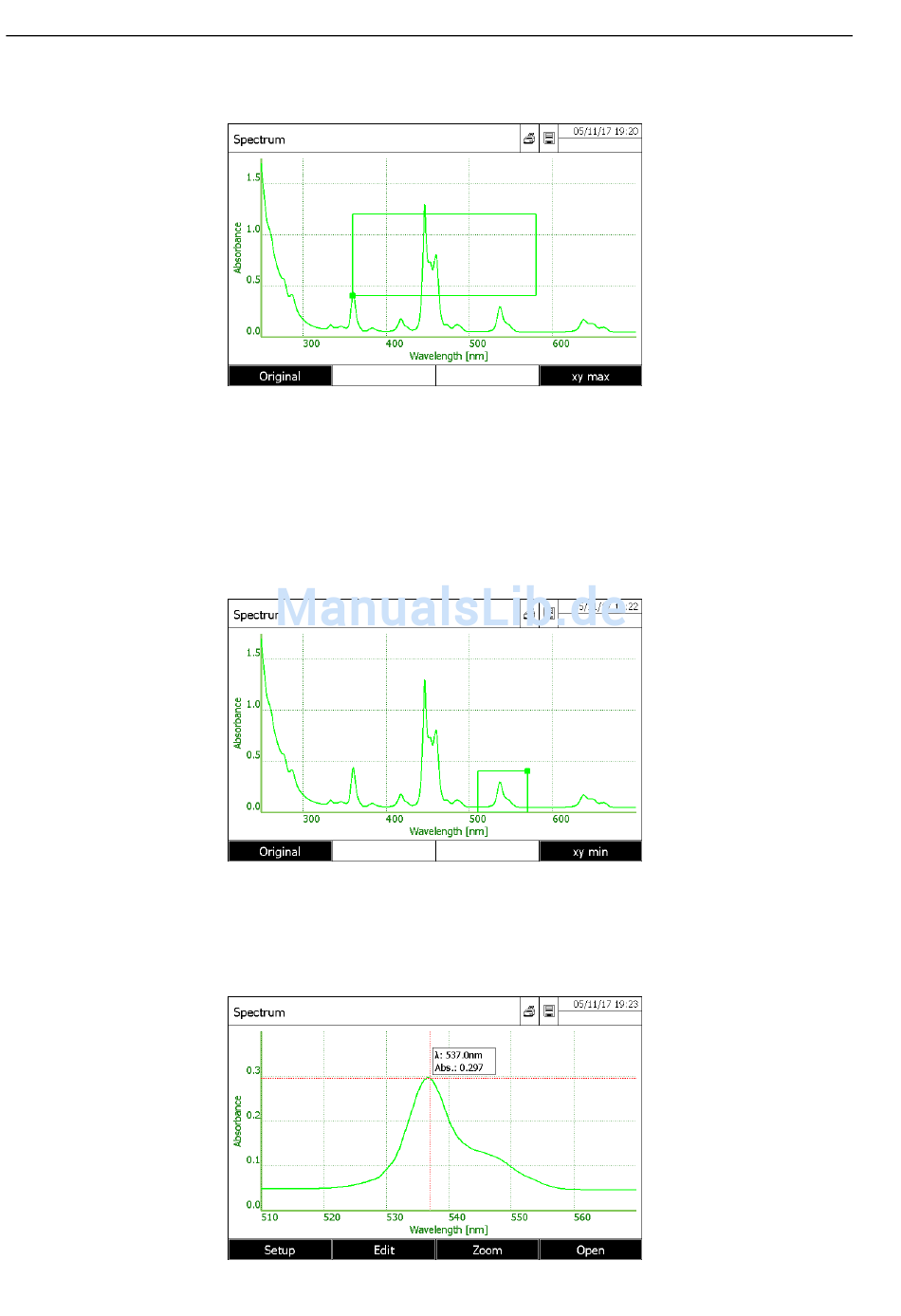

Adjusting the zoom window:
– Define the bottom left corner of the zoom window (small black square) with « ◄ » and « ► » keys and with
« ▲ » and « ▼ » keys.
– Use F4 [xy max] key to pass from the bottom left corner of the zoom window to the top right corner of the
zoom window.
– Define the top right corner of the zoom window (small black square) with « ◄ » and « ► » keys and with
« ▲ » and « ▼ » keys.
Scaling up the zoom window:
– Press on <START·ENTER> key. The zoom window is scaled up on the entire diagram area.
