180
- To print, with <PRINT> key, the spectrum on a connected printer as a graphic.
- To record, with <STORE> key, the spectrum as a "*.csv" file. As the memory location, it is possible to select
the spectrophotometer (Internal DataB folder) or a connected USB memory at the USB-A connection (USB
memory).
Stored spectra can be recalled and edited at any time (see paragraph 9.7.1).

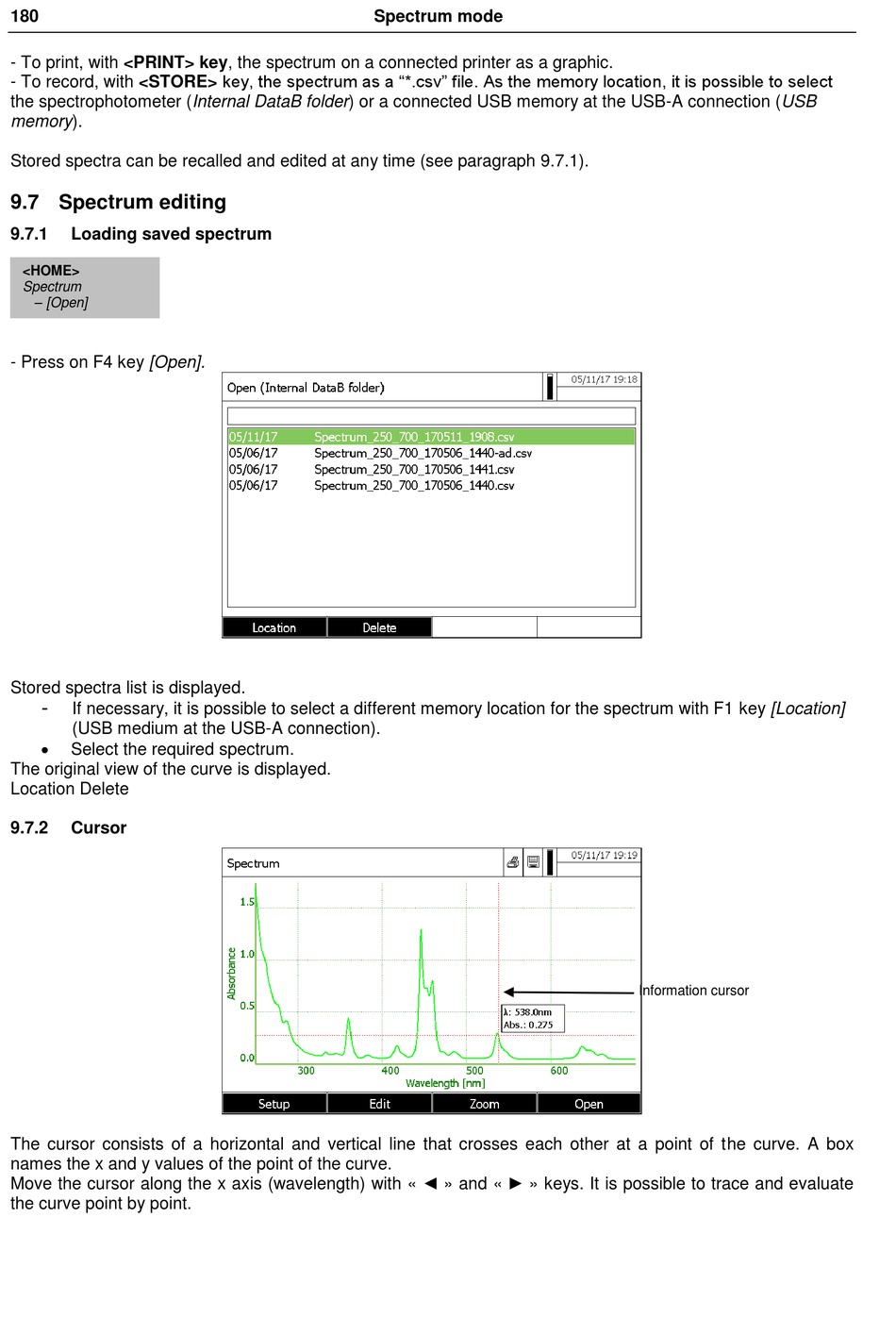

9.7 Spectrum editing

9.7.1 Loading saved spectrum
<HOME>
Spectrum
– [Open]
- Press on F4 key [Open].
Stored spectra list is displayed.
-
If necessary, it is possible to select a different memory location for the spectrum with F1 key [Location]
(USB medium at the USB-A connection).

Select the required spectrum.
The original view of the curve is displayed.
Location Delete
9.7.2 Cursor
The cursor consists of a horizontal and vertical line that crosses each other at a point of the curve. A box
names the x and y values of the point of the curve.
Move the cursor along the x axis (wavelength) with « ◄ » and « ► » keys. It is possible to trace and evaluate
the curve point by point.
Spectrum mode
Information cursor
