Installation
Fig. 24

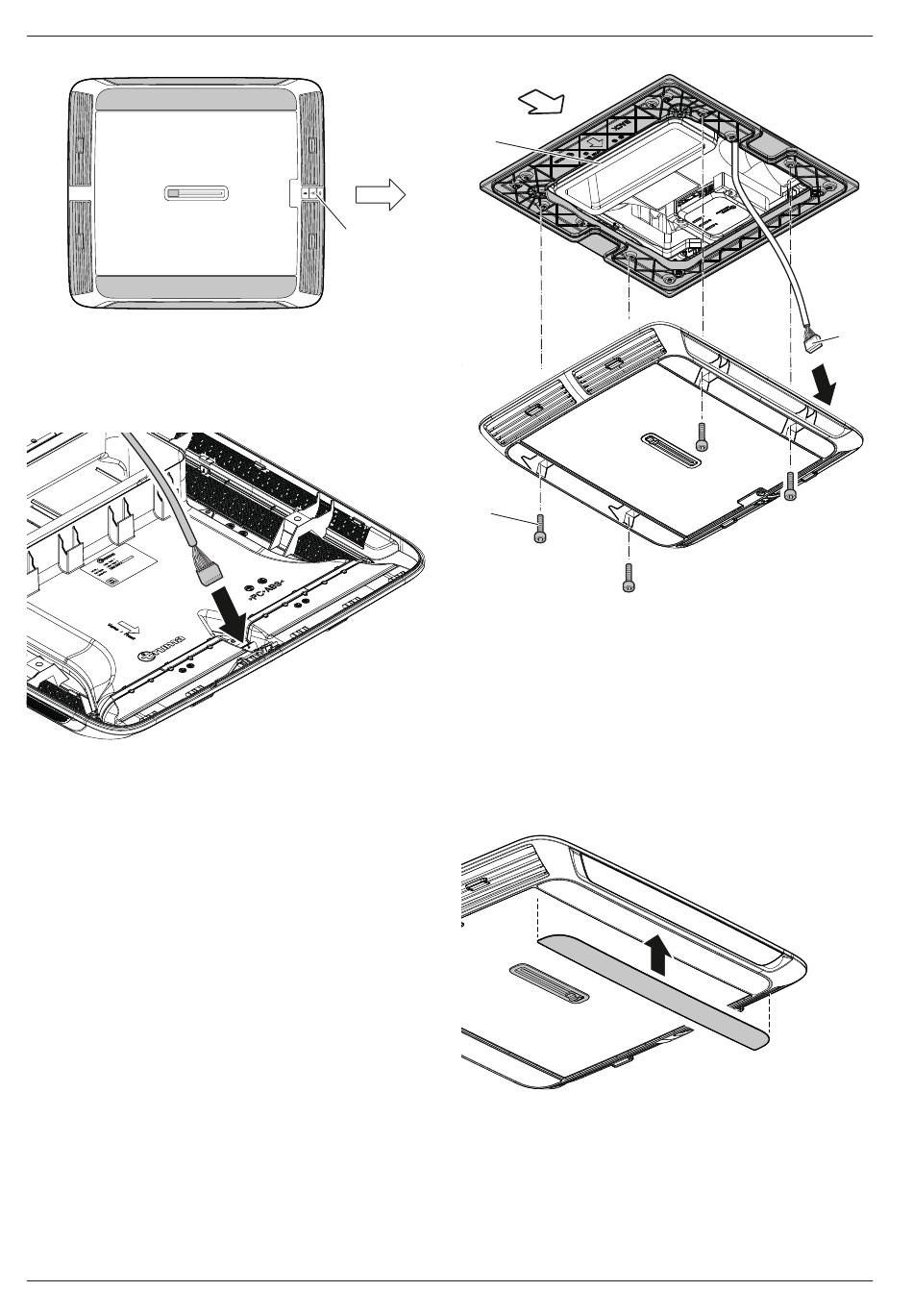

Connect the connector cable of the air distributor

(Fig. 25-2).
Fig. 25
Attach the air distributor to the air duct of the

external unit (Fig. 26-1) and push it up vertically
towards the ceiling.
Screw the air distributor to the mounting frame,

using 4 screws (Fig. 26-3) (supplied) (Fig. 26).
Tighten the screws with a torque of 2 Nm.
36 EN
1
1
3
Fig. 26
 Screwlock has been applied to the screws. If the
screws are reused (e.g. after dismantling), use
low-strength screwlock, such as Loctite, or the
screws that are obtainable as spare parts.
Attach both panels to the bottom of the air

distributor (Fig. 27).
Fig. 27
To do this, first insert the panels on the inside of the air
distributor (Fig. 28-1), then press them in on the outside
and snap them into place (Fig. 28-1).
