Truma Aventa compact Einbauanleitung Seite 33

Aventa compact 2.G / Aventa compact plus 2.G
Connect the terminating resistor to the unused plug

of the CAN cable (Fig. 19-3).
NOTICE
Confined cable routing when installing the
air distributor with roof thickness adapter
When laying the cables to the iNet X

Interface AC, maintain a gap to the air duct
of the external unit.
CAN CAN
1
CAN1 CAN2
2

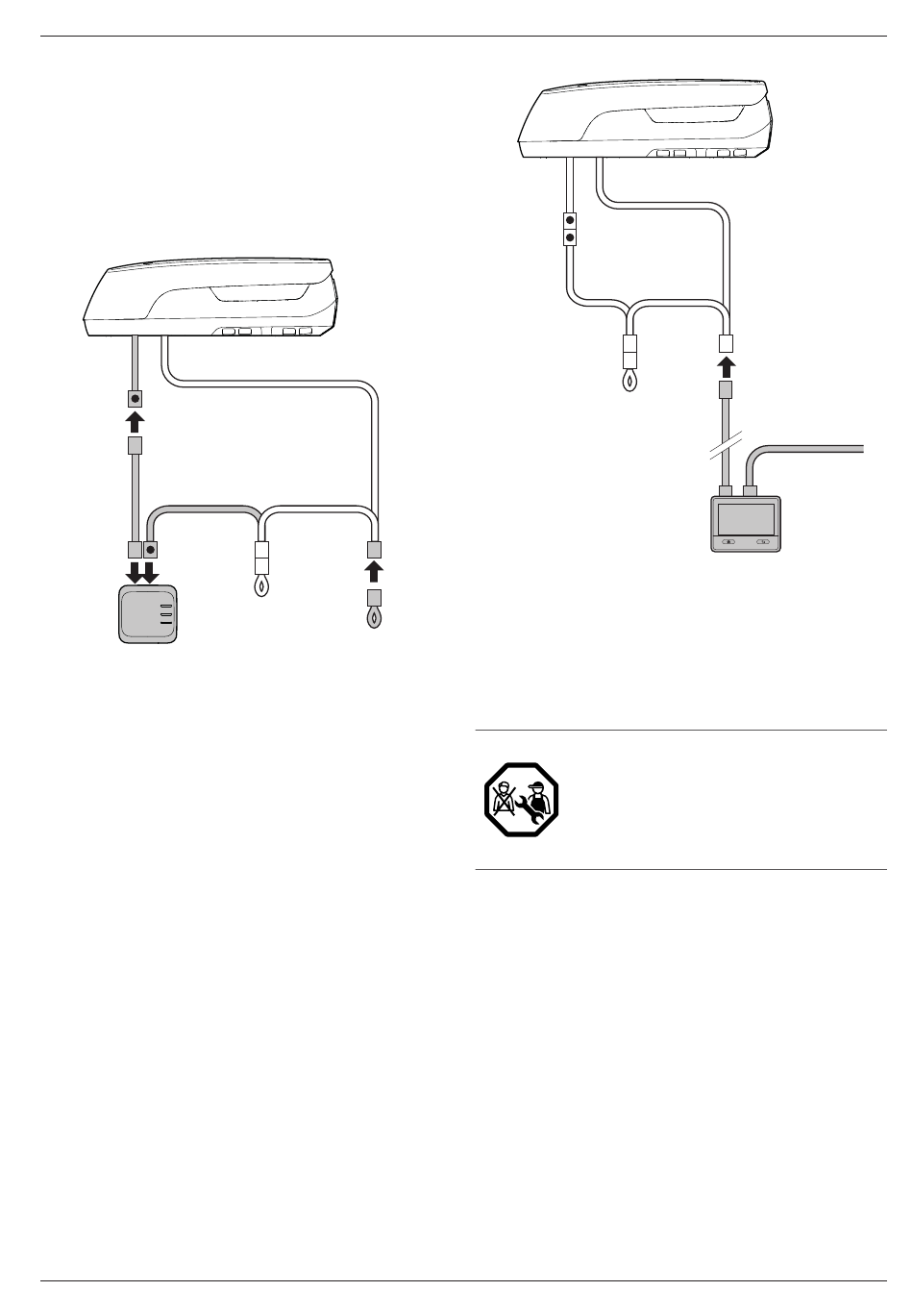

Fig. 19
6.9.2 Operation with external control panel
(Truma iNet X Panel / Truma iNet X Pro
Panel)
Lay the CAN cable from the Truma iNet X Panel to

the air conditioning system
Connect the CAN cable (Fig. 20-2) from the Truma

iNet X Panel (Fig. 20-3) to the free CAN connector of
the CAN cable (Fig. 20-1).
Connect the CAN + 120R cable, 0.5 m, e4f-x2 (part

no. 47000-00216) (Fig. 20-4) to the Truma iNet X
Panel. Then connect to the 12 V DC power supply.
40091-01220 ∙ 00 ∙ 10/2024
Fig. 20
3
6.9.3 Operation with other control panels
See the relevant installation instructions for the
connected control panel.
6.10 230 V AC electrical connection
Safety instructions

CAN CAN
1
2
3
The electrical 230 V AC connection must
always be carried out by a qualified
electrician. The instructions shown here
are not intended as instructions for non-
experts to make the electrical connection
but are additional information for an
expert who is employed to do the work.
WARNING
Electric shock from the mains voltage
Improper installation can lead to property
damage, personal injury or death.
Installation must be carried out by a licensed

electrician in accordance with national or
local regulations.
Before starting work, the power supply must

be switched off and all poles disconnected.
Follow the safety instructions when working

with mains voltage.
Install a residual current operated circuit

breaker.
Installation
12 V DC
4
EN 33
