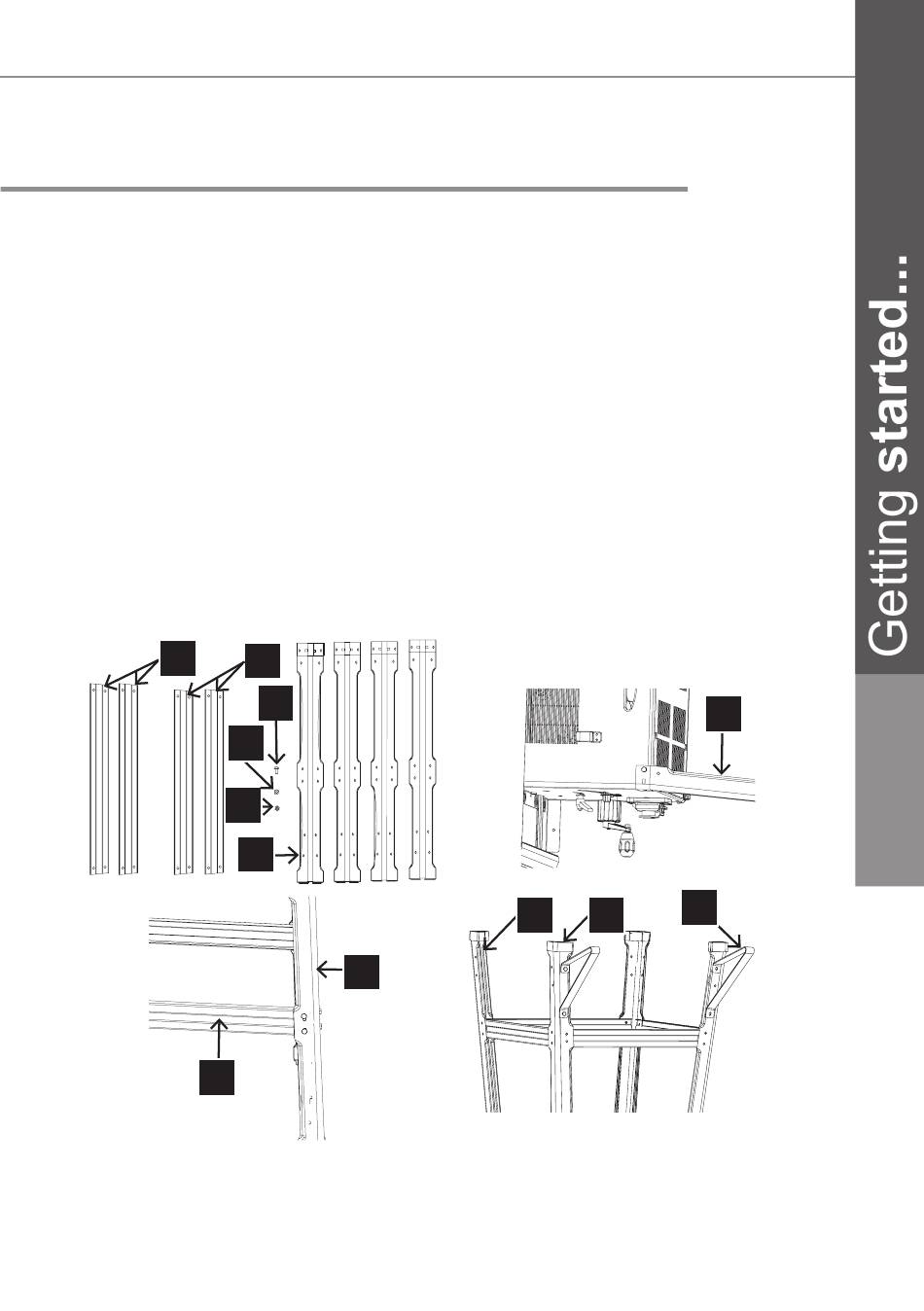

Mounting the frame (Fig. 1-4)
1. Mount the individual parts and fasten the screws only manually.
2. Turn the saw upside down and place it on the floor.
3. Use the washers (5) and the hex screws (4) to fasten the 4 legs (1) loosely
to the saw.
4. Now use the hex screws (4), the washers (5) and the nuts (6) to fasten the
longitudinal struts (3) and the cross-struts (2) loosely to the legs.
5. Please note: The longer struts have to be used on the sides.
6. Finally, tighten all screws and nuts on the base frame.
7. Screw the additional legs (8) to the rear legs (1) so that they point towards
the rear of the machine (Fig. 4).
8. Attach the foot caps (7) by tapping slightly.
