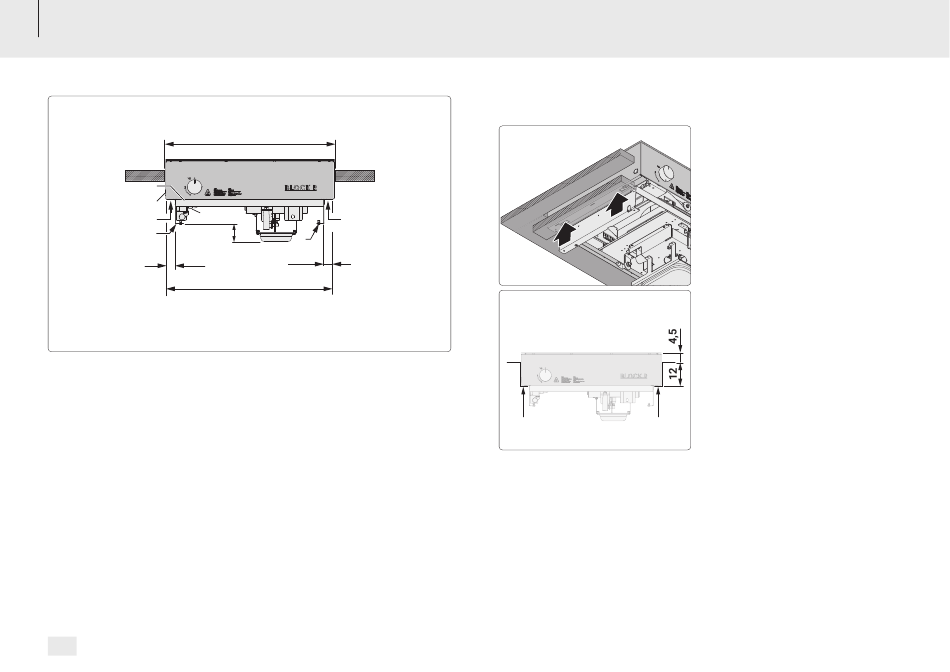

Set-up
E
D
A
B
C
7,5
4
Dimensions in cm.
The dimension x depends on the mounting variant.
 Installation without mounting bracket = 70.8 cm
 Installation with mounting bracket = 71.2 cm
A Gas connection
B Support surface on the appliance frame (Variant 1 / Variant 3)
C Support surface on the appliance bracket (Variant 2)
D Ignition button
E Alternative ignition button opening
If it is not possible to install the unit so that the ignition button is accessible
from the side, this can also be fitted in the base in the alternative ignition
button opening.
User manual | Block R | EN
56
x
B
C
4
70
Installation variants
A A
Variant 1
Support of the appliance frame on a
suitable substructure.
Use the available holes on the unit
frame to fasten it to the base.
A Support surface on the unit frame
