2. Press the F4 key (PVR). The Select Channel window will open. The fre-
quency of the channels and the current channel will be displayed.
3. Use the and
and confirm by pressing OK.
4. Press EXIT to end the recording.
Recorded programs can be recalled and played using the USB MENU.
)
x Recordings require approximately 40 MB per minute (2.5

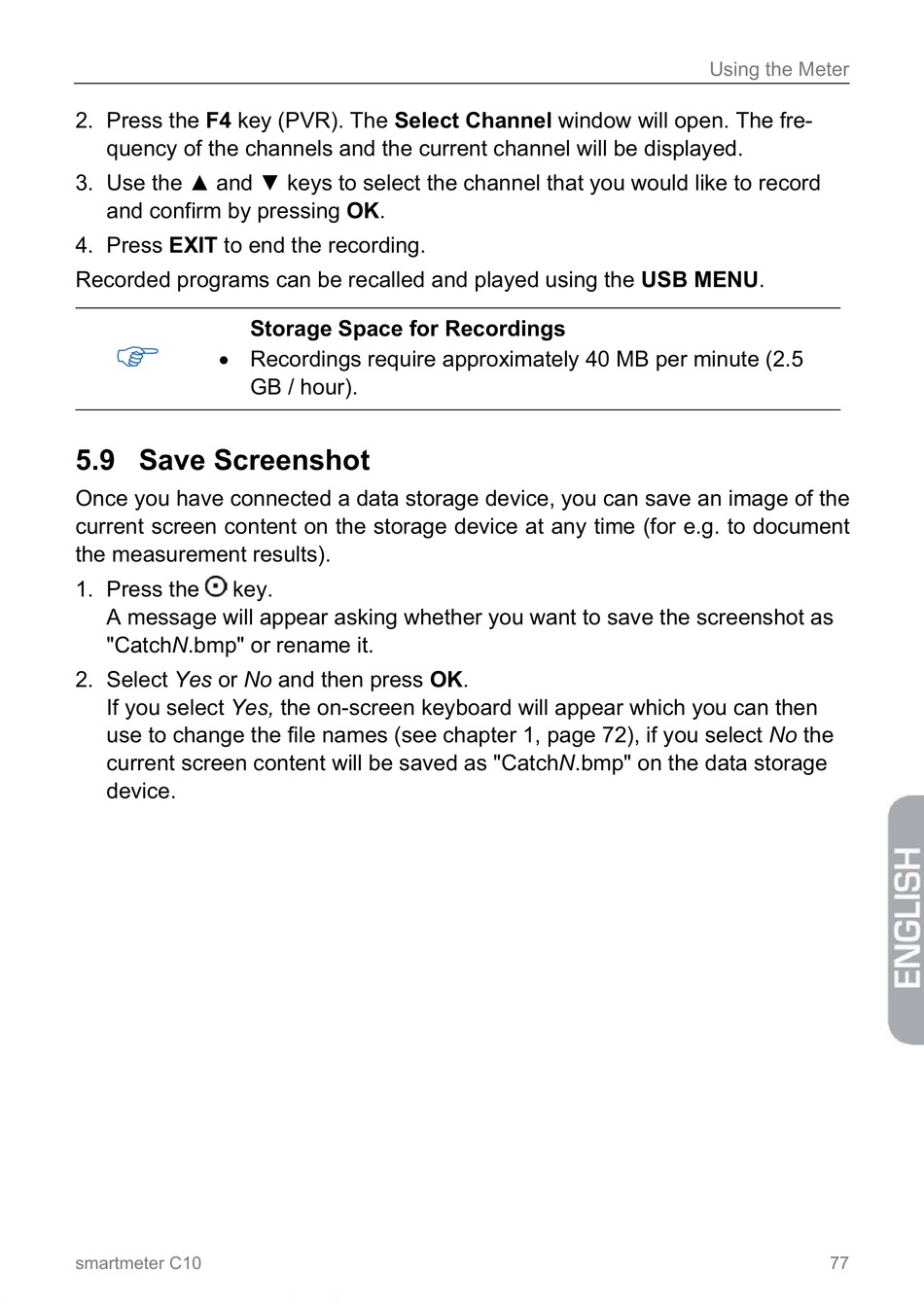

5.9 Save Screenshot

Once you have connected a data storage device, you can save an image of the
current screen content on the storage device at any time (for e.g. to document
the measurement results).
1. Press the key.
A message will appear asking whether you want to save the screenshot as
"CatchN.bmp" or rename it.
2. Select Yes or No and then press OK.
If you select Yes, the on-screen keyboard will appear which you can then
use to change the file names (see chapter 1, page 72), if you select No the
current screen content will be saved as "CatchN.bmp" on the data storage
device.
smartmeter C10
keys to select the channel that you would like to record
Storage Space for Recordings
GB / hour).
Using the Meter
77
