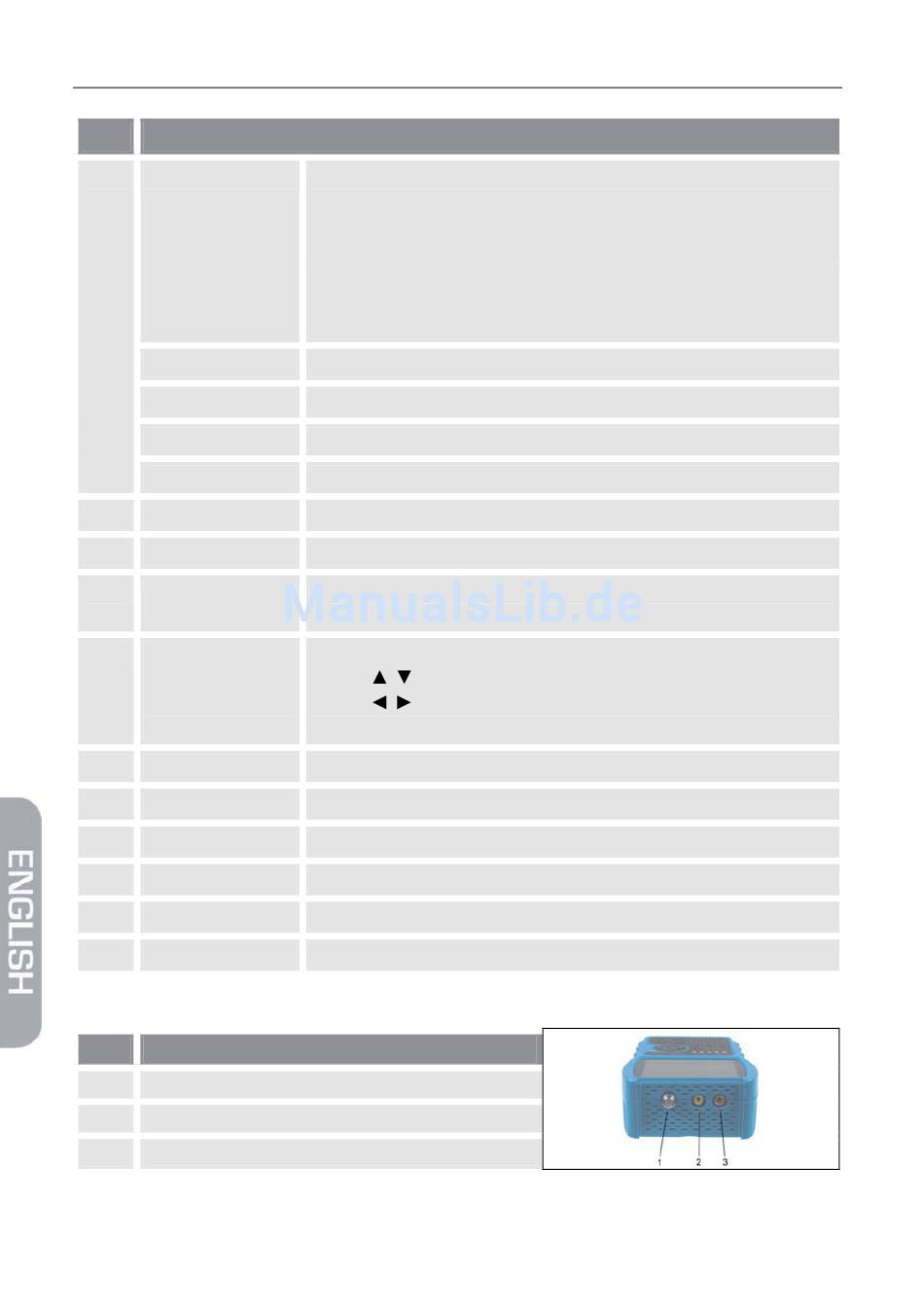

Product Description
No. Description
4 POWER-LED
LOCK LED
AV IN LED
TV LED
RADIO LED
5 POWER
6 Number keys
z
7
8 Navigation keys
OK
9 MENU
10 EXIT
11 AV IN
SYSTEM
12
13 FIND
14 SCAN
2.2.2

Top View

No. Description
1 Cable port
2 Analog audio input (mono)
Analog video input (composite video)
3
52
off Meter is switched off, power supply unplugged
or
Meter is switched off, power supply plugged, bat-
tery is completely charged.
green Meter is switched off, power supply plugged, meter
charging.
red Meter is switched on, power supply unplugged.
Glows when the meter receives a signal.
Glows when the meter is switched to (analog) video input.
Glows when the meter is in TV mode (standard).
Glows when the meter is in radio mode.
Press to switch the meter on and off.
Press to enter digits and numbers.
Press to create and save a screenshot of the display when a
USB data storage device is connected to the meter.
Press to navigate through menus/submenus:
Press , to switch between stations,
Press , to adjust the volume.
Press to confirm your selection / display station list.
Press to return to the main menu.
Press to exit the current menu.
Press to switch to (analogue) video input.
Press to enter the Settings submenu (in TV mode only).
Press to enter the Packet Control submenu.
Press to start automatic station search.
smartmeter C10
